Tables, shelves, trolleys, dispensers
Cleanroom Racks
Cleanroom racks consisting of base frame and welded in shelves.Material stainless steel (1.4301 / AISI 304)Functional surfaces in KEK-FinishBase frame made of square tubeupper ends closed with plastic capsFloor leveling with disc feets made of CNS (+/- 10 mm)Shelves, folded on all sidesfirmly weldedsmooth surfacefor perforated version: Dimension punching ø 10 mm in 15 x 15 mm grid to support the laminar flow of airdepending on design and dimensions stabilized by reinforcement
Cleanroom tables with perforated worktop and perforated shelf
Clean room worktable consisting of worktop and underframeMaterial stainless steel (1.4301 / AISI 304)Table top made of 1.5 mm thick stainless steel 42 mm bevelled on all sides, 12 mm of which 15 ° after folded inside Functional surfaces in KEK-Finish Dimension punching (ø10 mm in the grid 15 x 15 mm) to support the laminar flow of air depending on design and dimensions stabilized by reinforcementBase frame made of square tubesGround floor with perforated surface dimension punching (ø10 mm in the grid 15 x 15 mm) firmly weldedFloor leveling
Cleanroom tables high- adjustable with a smooth worktop
Clean room worktable consisting of worktop and underframe.Material stainless steel (1.4301 / AISI 304)Table top made of 1.5 mm thick stainless steel 42 mm bevelled on all sides, 12 mm of which 15 ° after folded inside Functional surfaces in KEK-Finish smooth surface depending on design and dimensions stabilized by reinforcementBase frame made of square tubesFloor levelingHigh adjustment:Table frame with an integrated electro-mechanical spindle drive, stepless height adjustmentLifting range: 300 mm (adjustable between 750 mm and 1,050 mm)Lifting speed approx. 9 mm/sDigital display with memory function for up to three saved height settingsFully enclosed stainless steel technical compartment, securely attached to the frame and reversibly sealedPower connection with EU-plug
Cleanroom tables high- adjustable with perforated worktop
Clean room worktable consisting of worktop and underframeMaterial stainless steel (1.4301 / AISI 304)Table top made of 1.5 mm thick stainless steel 42 mm bevelled on all sides, 12 mm of which 15 ° after folded inside Functional surfaces in KEK-Finish Dimension punching (ø10 mm in the grid 15 x 15 mm) to support the laminar flow of air depending on design and dimensions stabilized by reinforcementBase frame made of square tubesFloor levelingHigh adjustment:Table frame with an integrated electro-mechanical spindle drive, stepless height adjustmentLifting range: 300 mm (adjustable between 750 mm and 1,050 mm)Lifting speed approx. 9 mm/sDigital display with memory function for up to three saved height settingsFully enclosed stainless steel technical compartment, securely attached to the frame and reversibly sealedPower connection with EU-plug
Cleanroom tables with a smooth worktop
Clean room worktable consisting of worktop and underframe.Material stainless steel (1.4301 / AISI 304)Table top made of 1.5 mm thick stainless steel 42 mm bevelled on all sides, 12 mm of which 15 ° after folded inside Functional surfaces in KEK-Finish smooth surface depending on design and dimensions stabilized by reinforcementBase frame made of square tubesFloor leveling
Cleanroom tables with a smooth worktop with shelf
Clean room worktable consisting of worktop and underframe.Material stainless steel (1.4301 / AISI 304)Table top made of 1.5 mm thick stainless steel42 mm bevelled on all sides, 12 mm of which 15 ° after folded inside Functional surfaces in KEK-Finish smooth surface depending on design and dimensions stabilized by reinforcementBase frame made of square tubesGround floor with smooth surface firmly weldedFloor leveling
Cleanroom tables with perforated worktop
Clean room worktable consisting of worktop and underframeMaterial stainless steel (1.4301 / AISI 304)Table top made of 1.5 mm thick stainless steel 42 mm bevelled on all sides, 12 mm of which 15 ° after folded inside Functional surfaces in KEK-Finish Dimension punching (ø10 mm in the grid 15 x 15 mm) to support the laminar flow of air depending on design and dimensions stabilized by reinforcementBase frame made of square tubesFloor leveling
Cleanroom transport trolley, with perforated shelves
Material stainless steel (1.4301 / AISI 304)Functional surfaces in KEK-FinishShelves with punched holes (ø 10 mm in 15 x 15 mm grid) to support the laminar flow of airFirmly weldedStabilized by reinforcement depending on design and dimensionsSquare profiles closed at the top with plastic caps4 castors electrically conductive, 2 of them lockable
Cleanroom transport trolley, with smooth shelves
Material stainless steel (1.4301 / AISI 304)Functional surfaces in KEK-FinishShelves with a smooth surface Firmly weldedStabilized by reinforcement depending on design and dimensionsSquare profiles closed at the top with plastic caps4 castors electrically conductive, 2 of them lockable
Dispenser box
Material stainless steel (1.4301 / AISI 304)Functional surfaces in KEK-FinishTo dispense ofdisposable items (hoods, gloves, etc.)1 - 4 boxesHinged lid with bow handle for fillingViewing slots on the front to monitor the filling levelEmbossed removal openingRemovable drip tray arranged under the removal opening2 mounting holes on the back for wall mounting

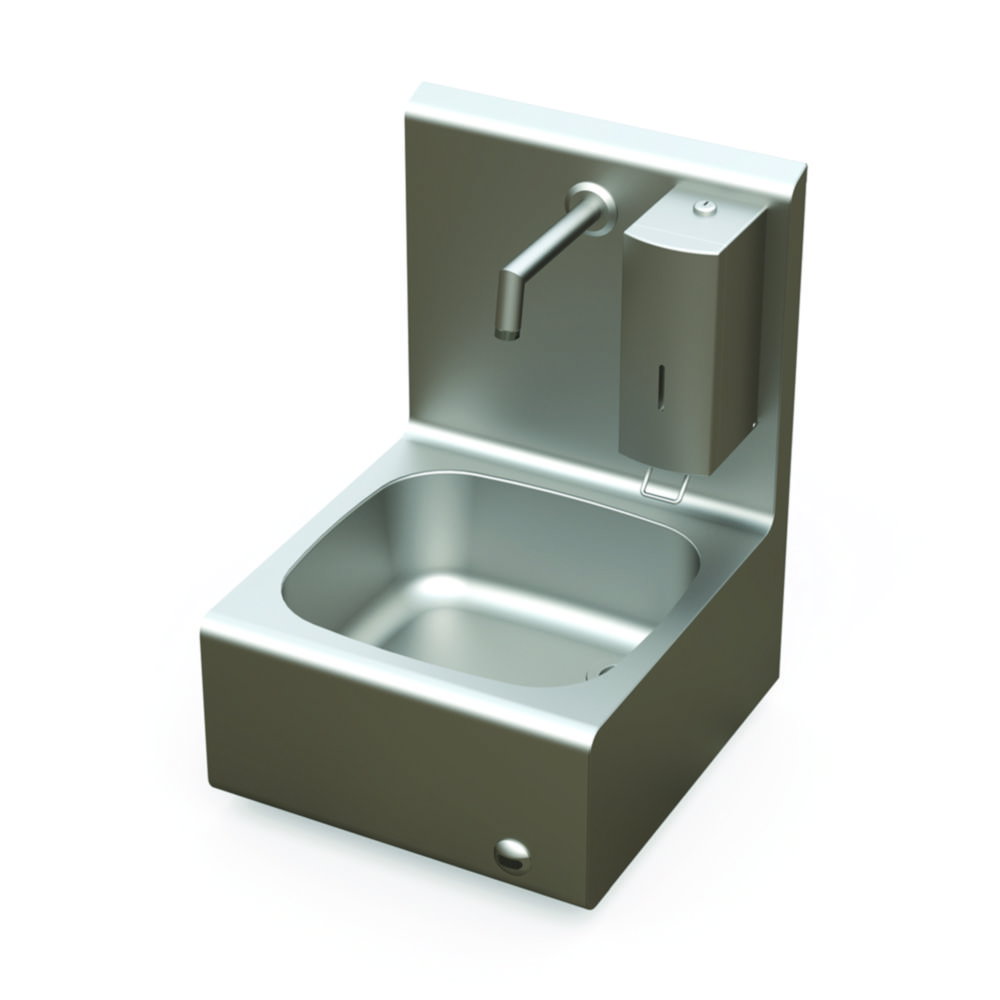

Hygienic sink HGB-LAB
Material: Stainless steel 1.4301/ AISI 304Functional surface sheet metal: KEK finish (roughness between 0.2 μm and 0.45 μm)1 washbasinWall-mounted unitwithout mounting materialSink panel 210 mm highSink smoothly welded1½" drain embossing on the right, including valveSplash back 390 mm highSensor-controlled spoutSoap/disinfection dispenser

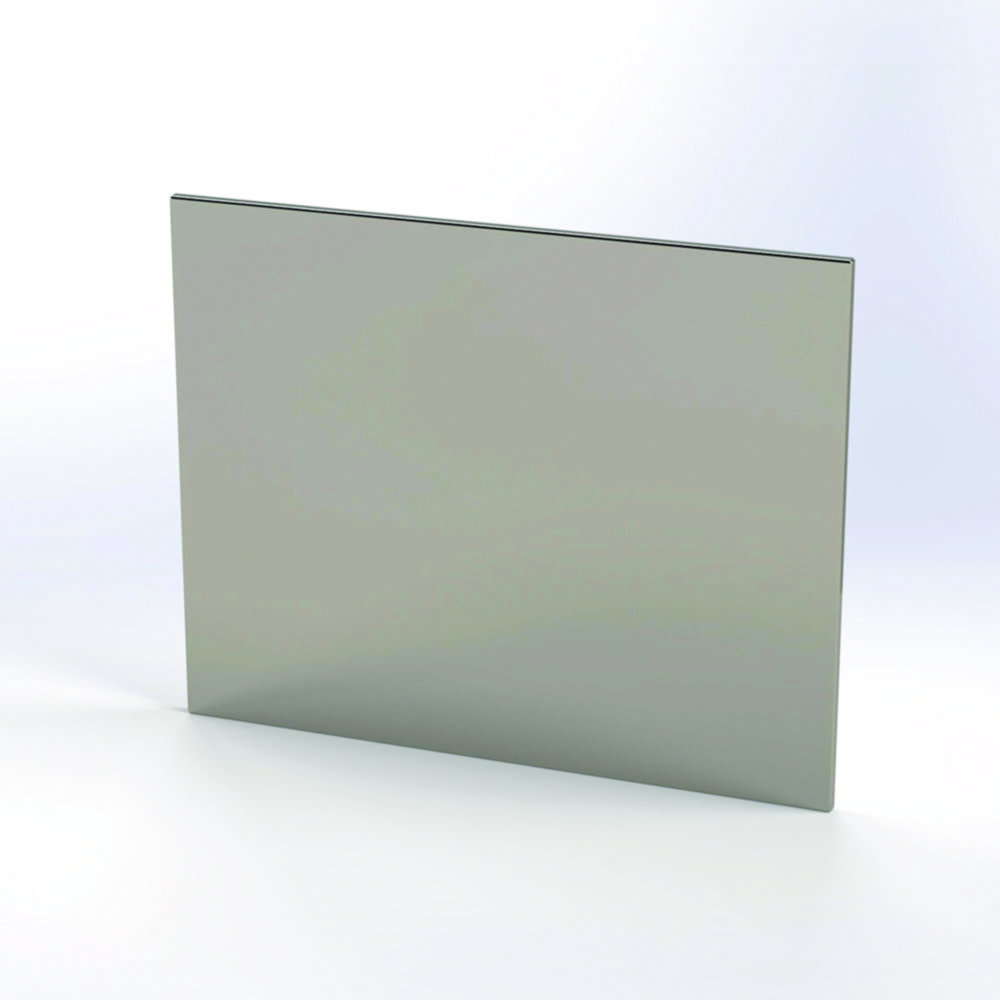

Mirror, Stainless Steel, Surface 2P reflective
Material: Stainless steel 1.4301/ AISI 304Functional surface sheet metal: 2P mirror polished11 mm folded down and 15 mm folded in all aroundIncludes mounting hardware (2x galvanized screw hooks, 2x Nylon dowels 8 x 40 mm)

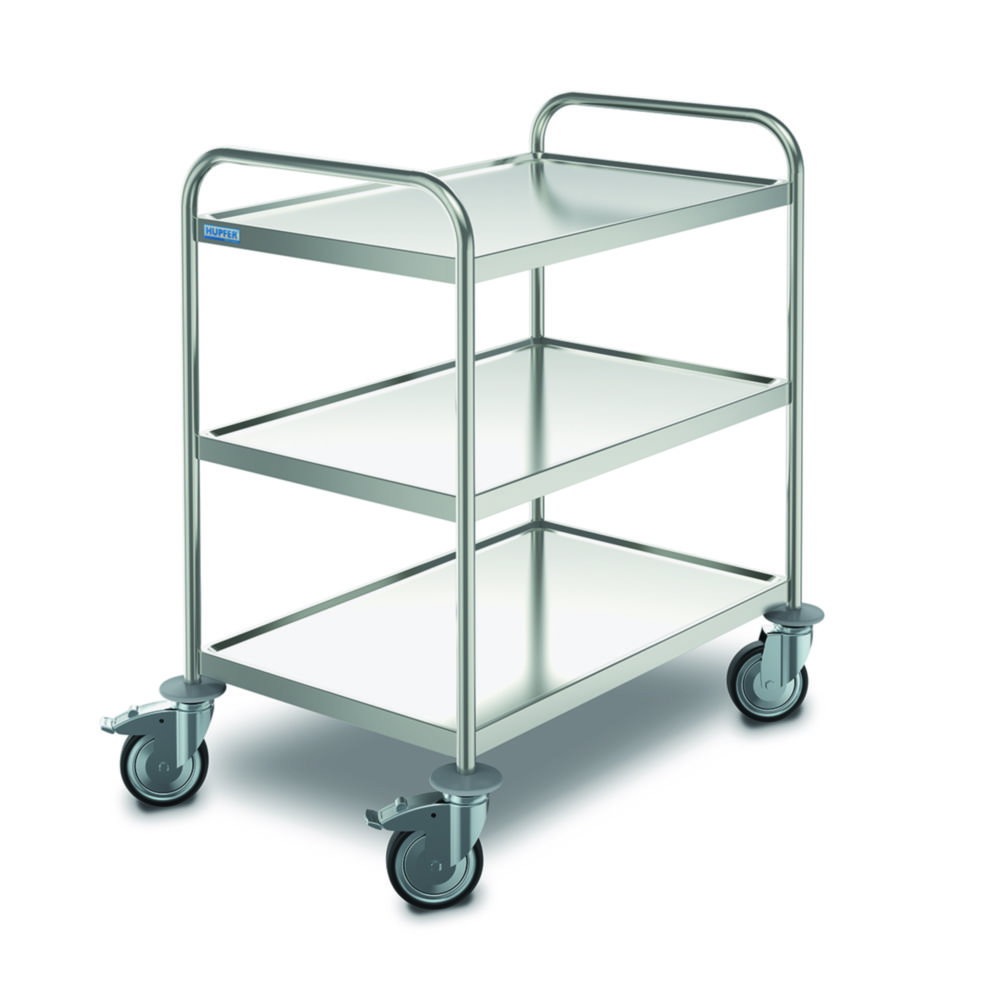

Transport Trolley, stainless steel
Transport trolley made of stainless steel. Rugged construction made from two tubular steel bar push handles, Ø 25 mm with welded deep drawn shelves with elevated perimeter flange inbetween. Shelves are bevelled by 35 mm all over, with flat safety return to the inside. Chassis with 4 swivel castors, 2 of them with brake, Ø 125 mm, antistatic. Massive plastic bumper protect against damage.
