Table devices
Attachable stand for Immersion stirrer ZU 6955
In addition to the immersion stirrer, the attachable stand can hold three additional measuring probes. The adjustable stops prevent damage of probe and beaker. Pillar made of anodised aluminium, carriage and base made of polyamide 12 glass-reinforced.With integrated cable ductStroke of the carriage 190 mmClamping options: 2 x 12 mm, 1 x 4 to 14 mm, 1 x 6 to 16 mmMounting directly on the meterDimensions (W x D x H): 130 x 145 x 300 mm

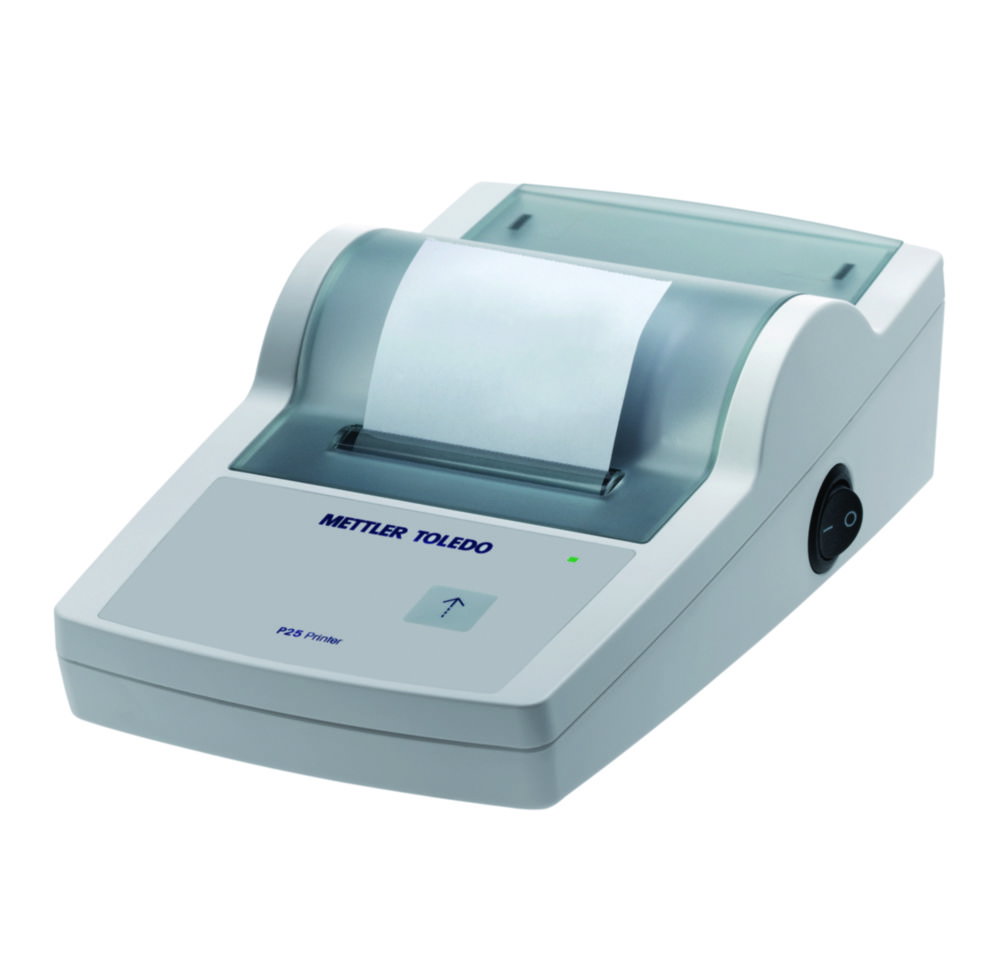

Dot-matrix printer RS-P25
Dot-matrix printer with RS232 interface for documenting measurement data. The printer automatically recognises the settings of the connected device.Scope of supply: Printer, power cable (country specific), interface cable, paper roll (1 pc.), ribbon cartridge (1 pc.)
Dot-matrix printer RS-P26
Dot-matrix printer with build-in real-time clock and zero/tare key for documenting measurement data. RS232 interface.Scope of supply: Printer, power cable (country specific), interface cable, paper roll (1 pc.), ribbon cartridge (1 pc.)

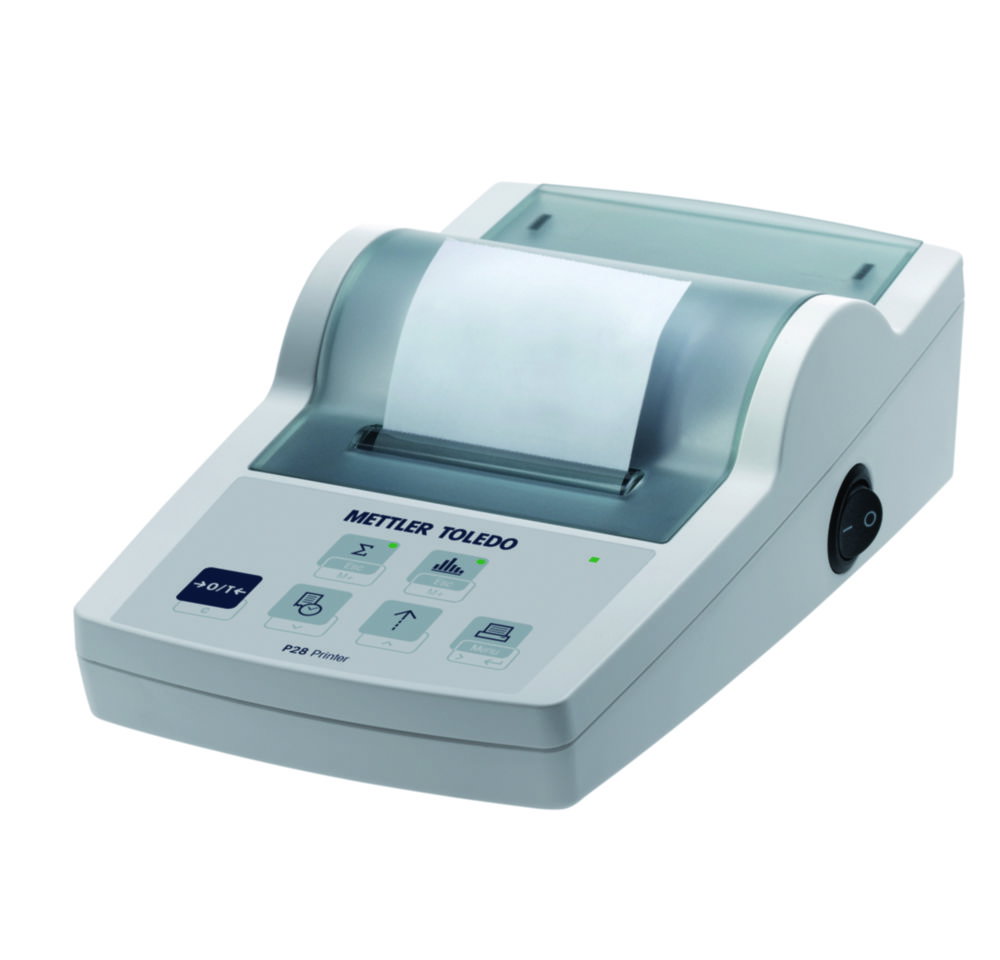

Dot-matrix printer RS-P28
Dot-matrix printer with build-in real-time clock and zero/tare key for documenting measurement data.RS232 interfaceStatistics and totalling applicationScope of supply: Printer, power cable (country specific), interface cable, paper roll (1 pc.), ribbon cartridge (1 pc.)
Electrode arm EasyPlace™ for benchtop meters SevenDirect™
Complete electrode arm EasyPlace™ for mounting and precise positioning of electrodes.
Immersion stirrer ZU 6955 for pH meter 765/766 and conductivity meter 703
The immersion stirrer reduces electrode response time for measurement and calibration. Stainless steel impeller Ø 12 mm. Dimensions Ø 25 x 250 mm. Immersion depth 90 mm.Please order power supply unit and attachable stand for fixing the immersion stirrer separately.

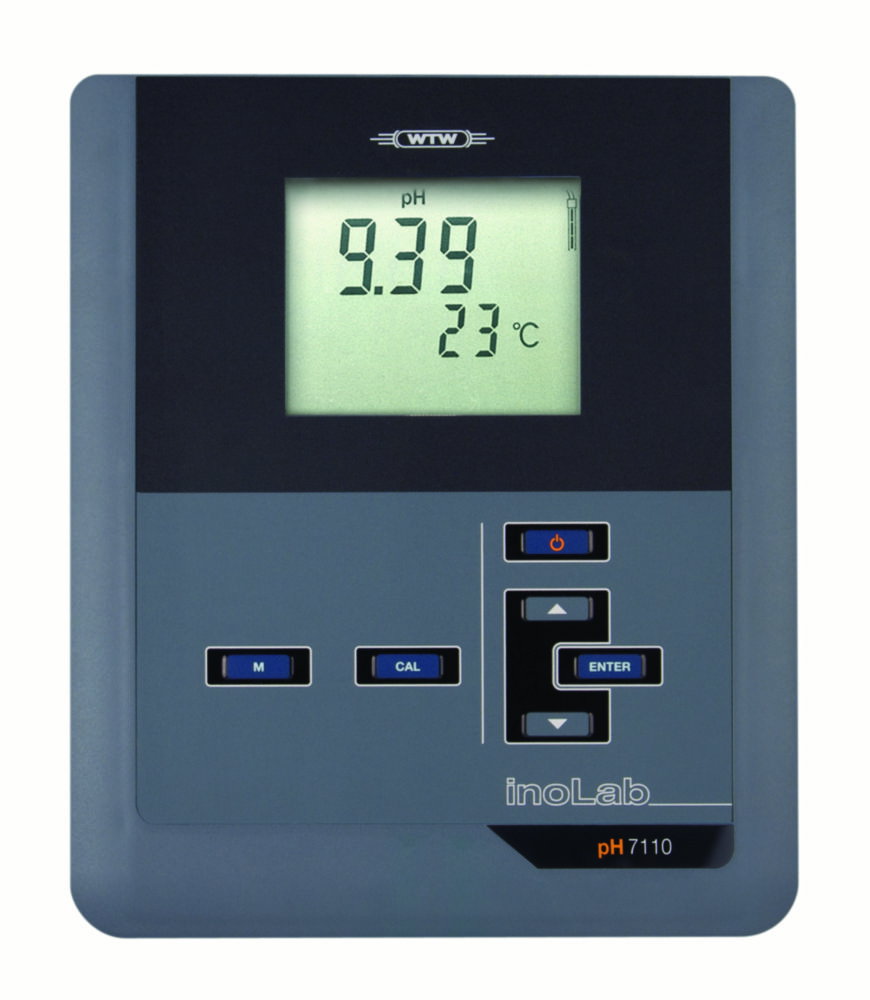

Laboratory instrument inoLab® pH 7110
Basic pH/mV laboratory instrument for all tasks where reliable, accurate readings are required quickly and easily. With large LCD segment display and easy-to-read keyboard. The AutoRead function ensures correct and repeatable measurement results. A built-in timer reminds the user of periodical calibration.Scope of supply: Laboratory instrument with DIN connection, mains power adapter, stand
Laboratory instrument inoLab® pH 7110 BNC
Basic pH/mV laboratory instrument for all tasks where reliable, accurate readings are required quickly and easily. With large LCD segment display and easy-to-read keyboard. The AutoRead function ensures correct and repeatable measurement results. A built-in timer reminds the user of periodical calibration.Scope of supply: Laboratory instrument with BNC connection, mains power adapter, stand
Laboratory instrument inoLab® pH 7110 SET 2
Basic pH/mV laboratory instrument for all tasks where reliable, accurate readings are required quickly and easily. With large LCD segment display and easy-to-read keyboard. The AutoRead function ensures correct and repeatable measurement results. A built-in timer reminds the user of periodical calibration.Scope of supply: Laboratory instrument with DIN connection, mains power adapter, stand, SenTix® 41, 3 mol/l KCl, buffer 4.7/10.01
Laboratory instrument inoLab® pH 7110 SET 4
Basic pH/mV laboratory instrument for all tasks where reliable, accurate readings are required quickly and easily. With large LCD segment display and easy-to-read keyboard. The AutoRead function ensures correct and repeatable measurement results. A built-in timer reminds the user of periodical calibration.Scope of supply: Laboratory instrument with DIN connection, mains power adapter, stand, SenTix® 81, 3 mol/l KCl, buffer 4.7/10.01

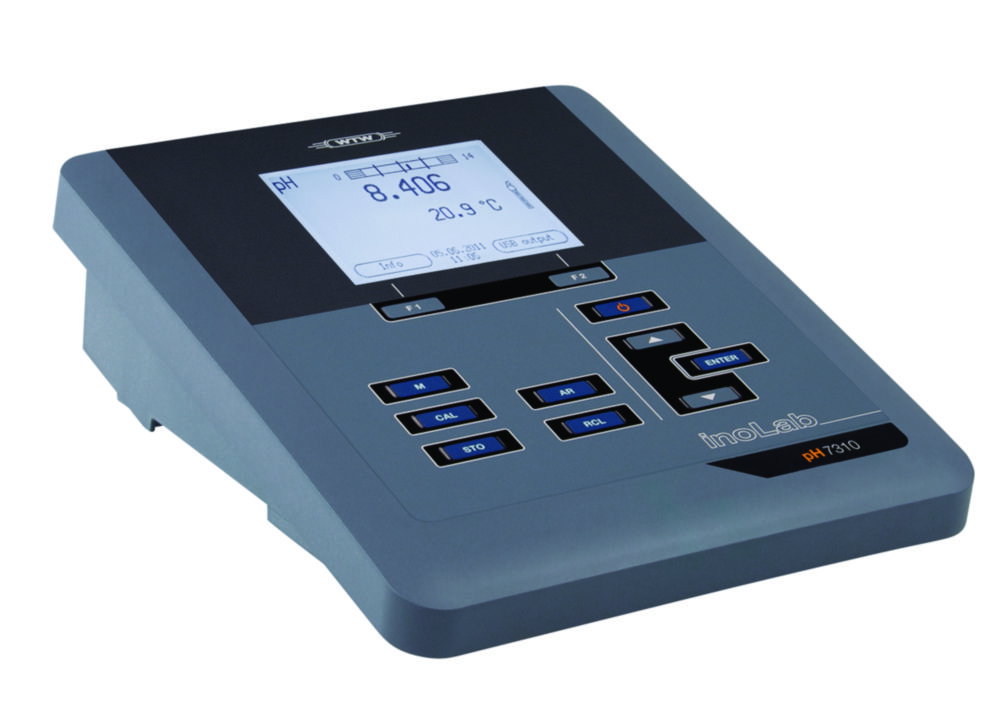

Laboratory instrument inoLab® pH 7310
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.Scope of supply: Laboratory instrument with DIN connection, power supply, stand, USB cable
Laboratory instrument inoLab® pH 7310 BNC
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.Scope of supply: Laboratory instrument with BNC connection, power supply, stand, USB cable
Laboratory instrument inoLab® pH 7310 Set 2
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.Scope of supply: Laboratory instrument with DIN connection, power supply, stand, USB cable, SenTix® 41, 3 mol/l KCl, buffer 4, 7, and 10.01
Laboratory instrument inoLab® pH 7310 Set 4
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.Scope of supply: Laboratory instrument with DIN connection, power supply, stand, USB cable, SenTix® 81, 3 mol/l KCl, buffer 4, 7, and 10.01
Laboratory instrument inoLab® pH 7310P
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.An integrated thermal printer (58 mm width) is ready for printout of the measured data.Scope of supply: Laboratory instrument with integrated printer and DIN connection, power supply, stand, USB cable
Laboratory instrument inoLab® pH 7310P BNC
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.An integrated thermal printer (58 mm width) is ready for printout of the measured data.Scope of supply: Laboratory instrument with integrated printer and BNC connection, power supply, stand

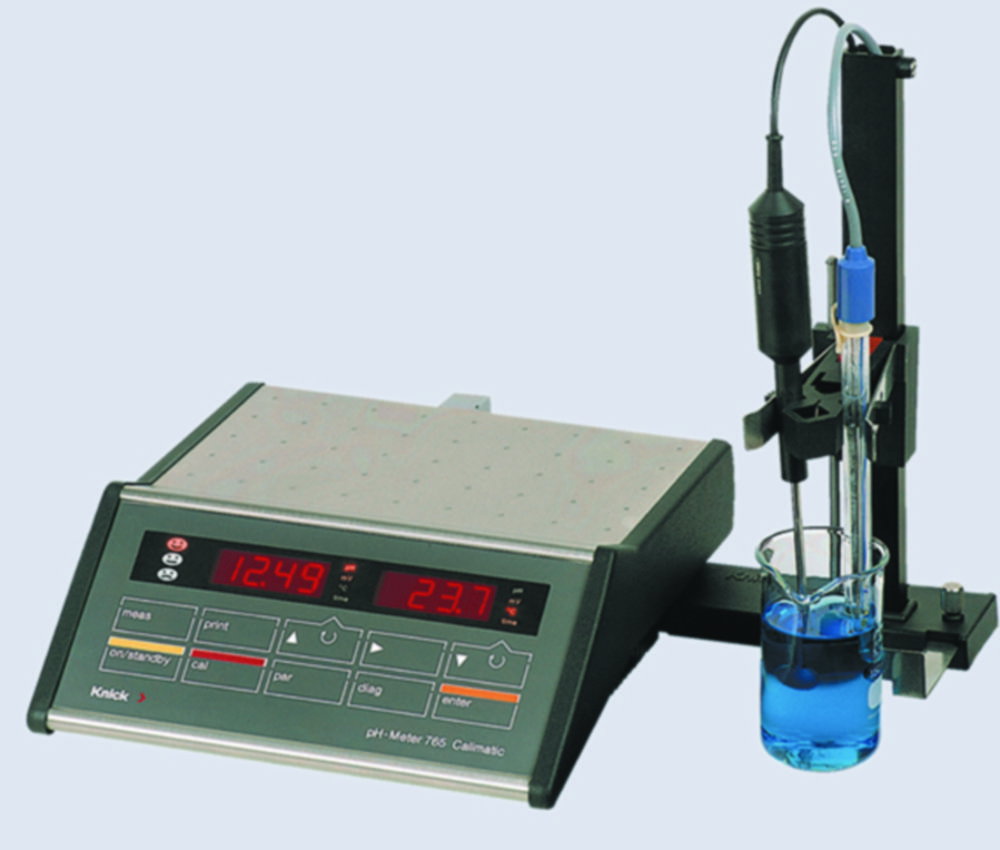

Laboratory pH meter 765
With many safety features making pH measurement easier and more reliable.Fullcheck® automatically checks instrument function from input socket to recorder output. Functional efficiency of the instrument can be documented as part of quality management in accordance with DIN EN ISO 9000 using a test print. Trueline® delivers a calibrated analog recorder signal (electrically isolated). Calimatic® automatically recognises the correct buffer. EMC design protects instrument from electromagnetic interference. The 765 laboratory pH meter complies fully with NAMUR (German committee for measurement and control standards in the chemical industry) EMC recommendations.Temperature compensation is either automatic with a Pt 100 or Pt 1000 sensor or manual. Data can be processed immediately by a computer via standard RS 232 interface. Direct output to a printer is also possible. Large, bright LED display enables simultaneous readout of 2 measured values, such as pH value and temperature.Case made of glass reinforced PA, with non-rusting, stainless steel, IP 54 protection level cover, ready for connection of ZU 6954 electrode stand.Printer control: Via serial interface for ZU 0244 or other standard printers, printing at the touch of a button or via print interval timer 0.1 to 999.9 min.Electrode monitoring:Sensoface®: analysis of zero point, transductance, response time and electrode glass impedance, good/average/poor optical display for monitoring electrode condition can be disabled.Drycheck®: Monitors electrode impedance and alerts to electrode dry-up, glass breakage and defective connections even in stand-by mode. Calibration timer monitors calibration interval.Instrument self-test system Fullcheck®: tests all measurement electronics, including analogue output, segment and keyboard test in diagnostic mode, automatic short test after power-on, QM documentation print-outs according to DIN EN ISO 9000 retrievable in diagnostic mode or via interface (printer).Laboratory pH meter 765, includes mains cable, electrode not included.
