Vacuum controller
Accessories for Vacuum Controller VACUU·SELECT and Measuring instrument DCP 3000
Accessories for Vacuum Controller VACUU·SELECT and Measuring instrument DCP 3000

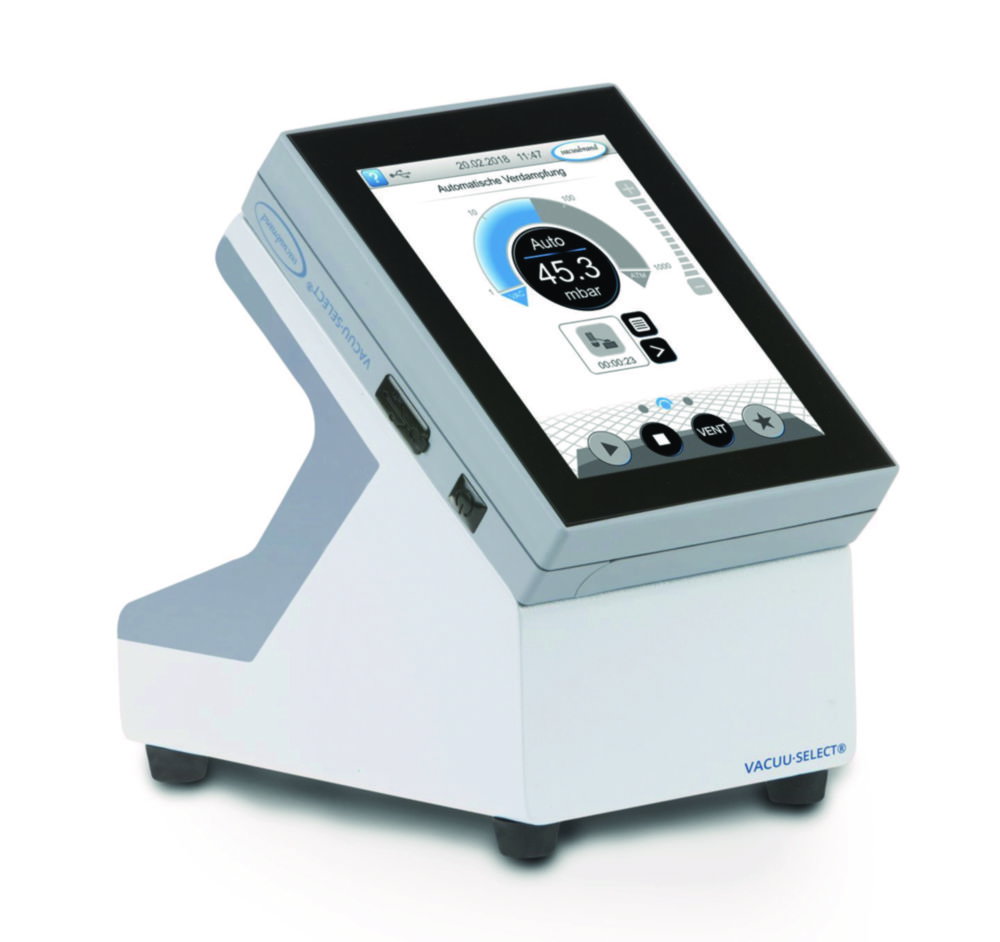

Compact Vacuum Controller VACUU·SELECT®, benchtop version
Fully equipped two-point vacuum controller with capacitive, gas type-independent absolute pressure measurement using an alumina-ceramic diaphragm. Ready to use due to standard laboratory connections.Scope of supply: Vacuum controller VACUU·SELECT® with chemistry suction line valve, check valve, integrated ceramic vacuum sensor, venting valve and power supply.

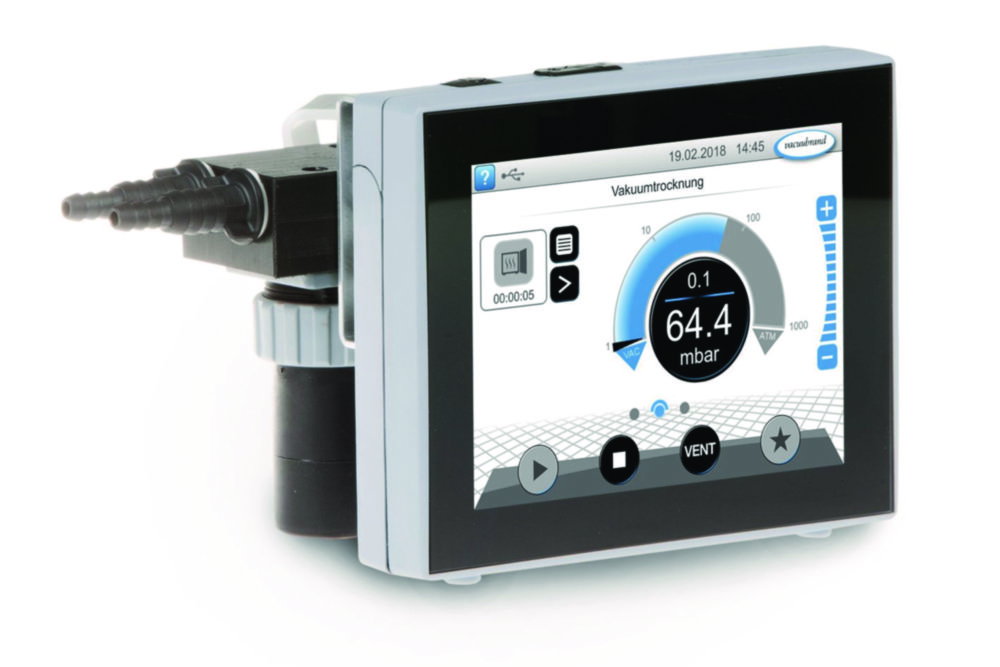

Compact Vacuum Controller VACUU·SELECT®, stand version
Fully equipped two-point vacuum controller with capacitive, gas type-independent absolute pressure measurement using an alumina-ceramic diaphragm. Ready to use due to standard laboratory connections.Scope of supply: Vacuum controller VACUU·SELECT® with chemistry suction line valve, check valve, integrated ceramic vacuum sensor, venting valve and power supply.

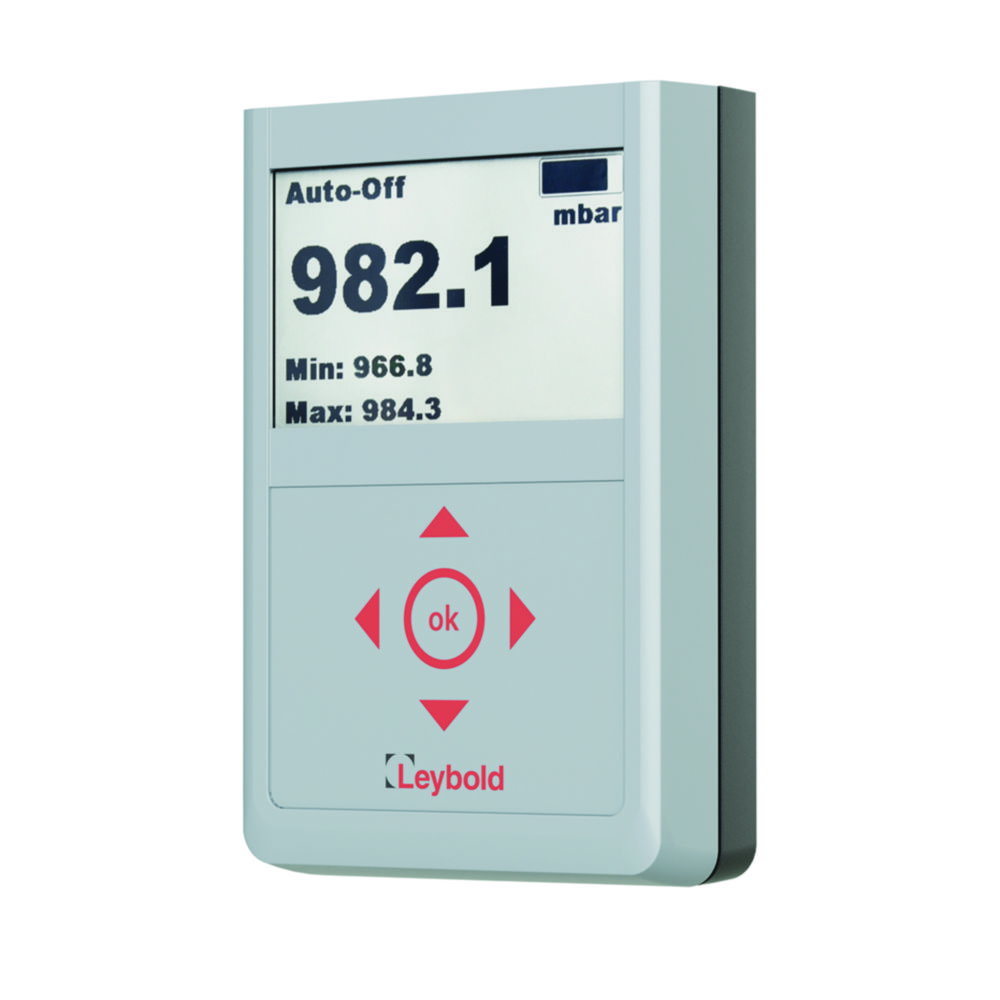

Digital vacuum gauge PIEZOVAC PV 201
The vacuum gauge is equipped with a piezoresistive sensor for high-pressure measurements. The PV 201 is ideal for applications requiring precise high-pressure measurements and ensures reliable performance in various vacuum environments. It can measure both absolute pressure and relative pressure (-1060 to 1200 mbar), thus supporting leak detection and pressure monitoring. The integrated data logger records measurements with a time stamp. Stored data can be easily transferred via USB-C or Bluetooth® LE and analysed with the optional VacuGraph™ software.LCD graphic display and intuitive menus facilitate operationGas type-independent pressure measurementIdentify leaks via pressure rise ratesPower supply: Li-battery is charged via the USB port
Digital vacuum gauge THERMOVAC TM 201
The vacuum gauge combines a piezoresistive sensor for high-pressure measurements with a heat conducting Pirani sensor for low-pressure measurements. This dual-sensor approach makes the TM 201 suitable for a wider range of vacuum applications. It can measure both absolute pressure and relative pressure (-1060 to 340 mbar), thus supporting leak detection and pressure monitoring. The integrated data logger records measurements with a time stamp. Stored data can be easily transferred via USB-C or Bluetooth® LE and analysed with the optional VacuGraph™ software.LCD graphic display and intuitive menus facilitate operationAdjustable gas type correction factorIdentify leaks via pressure rise ratesPower supply: Li-battery is charged via the USB port

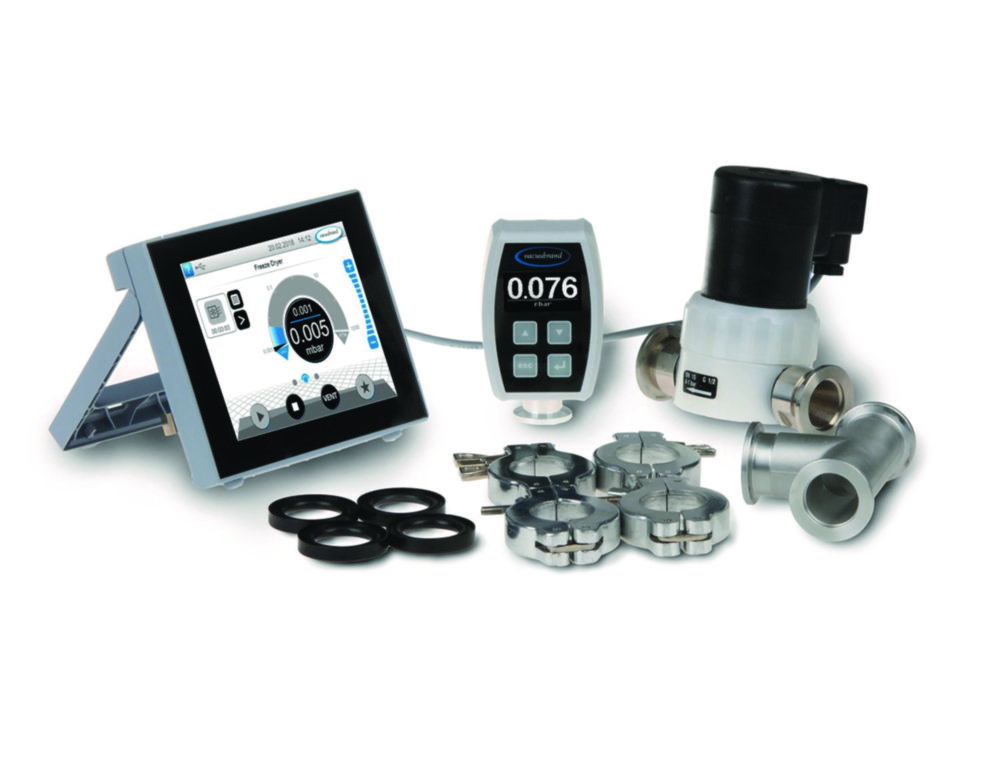

Fine vacuum controller package VACUU·SELECT + VACUU·VIEW extended, KF DN 16
The packages enable convenient vacuum control in the fine vacuum range down to 10-3 mbar and consist of a VACUU·SELECT vacuum controller, a VACUU·VIEW extended vacuum sensor, a VV-B 15C in-line solenoid valve and all necessary small flange components. Measurement principle: Ceramic diaphragm sensor + ceramic jacketed Pirani sensor.Suitable, e.g., for the VACUUBRAND RE/RZ 2.5 to RE/RZ 6 rotary vane pumps or RC 6 Chemistry-HYBRID pump.
Fine vacuum controller package VACUU·SELECT + VACUU·VIEW extended, KF DN 25
The packages enable convenient vacuum control in the fine vacuum range down to 10-3 mbar and consist of a VACUU·SELECT vacuum controller, a VACUU·VIEW extended vacuum sensor, a VV-B 15C in-line solenoid valve and all necessary small flange components. Measurement principle: Ceramic diaphragm sensor + ceramic jacketed Pirani sensor.Suitable for our RE/RZ 9 rotary vane pumps.

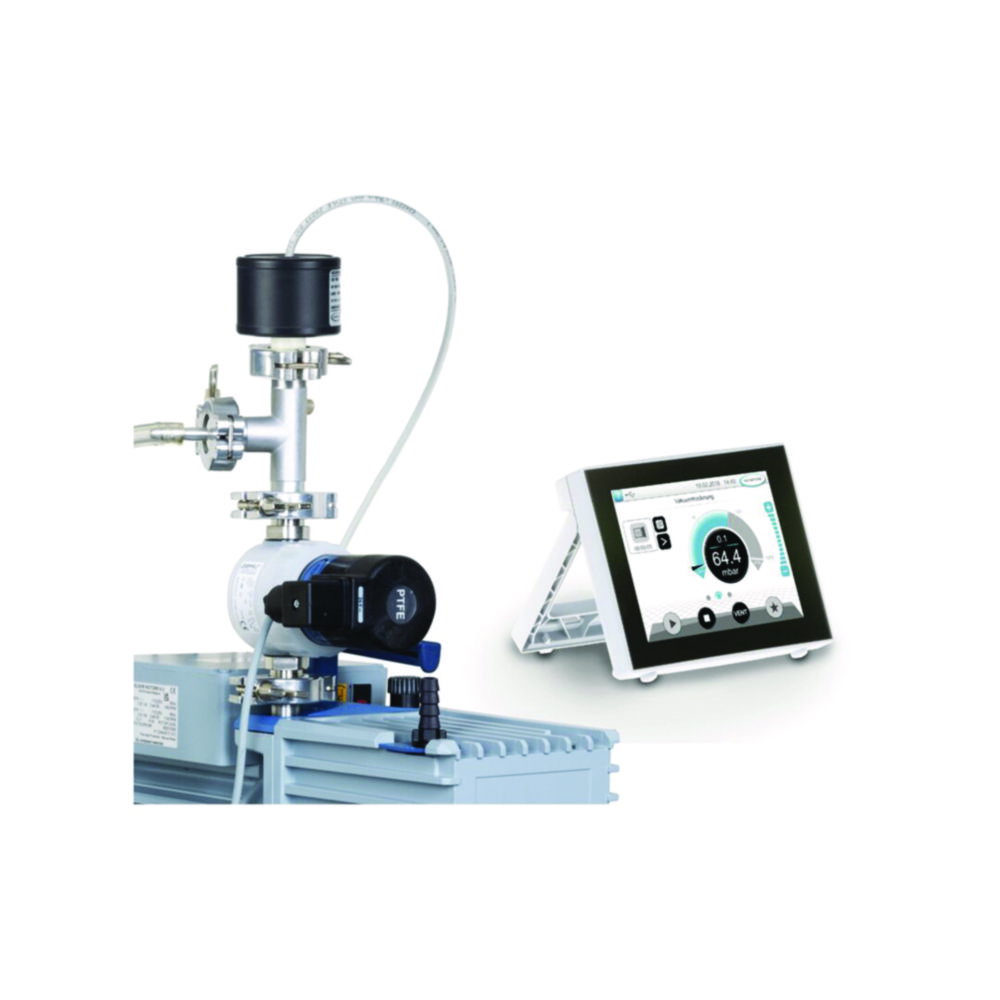

Fine vacuum controller package VACUU·SELECT + VSP 3000, KF DN 16
The packages enable convenient vacuum control in the fine vacuum range from 5 mbar down to 10-3 mbar and consist of a VACUU·SELECT vacuum controller, a VSP 3000 vacuum sensor, VV-B 15C solenoid-operated valve and all necessary small flange components. Measurement principle: Thermal conductivity (Pirani), chemically resistant plastics/ceramics.
Fine vacuum controller package VACUU·SELECT + VSP 3000, KF DN 25
The packages enable convenient vacuum control in the fine vacuum range from 5 mbar down to 10-3 mbar and consist of a VACUU·SELECT vacuum controller, a VSP 3000 vacuum sensor, VV-B 15C solenoid-operated valve and all necessary small flange components. Measurement principle: Thermal conductivity (Pirani), chemically resistant plastics/ceramics.

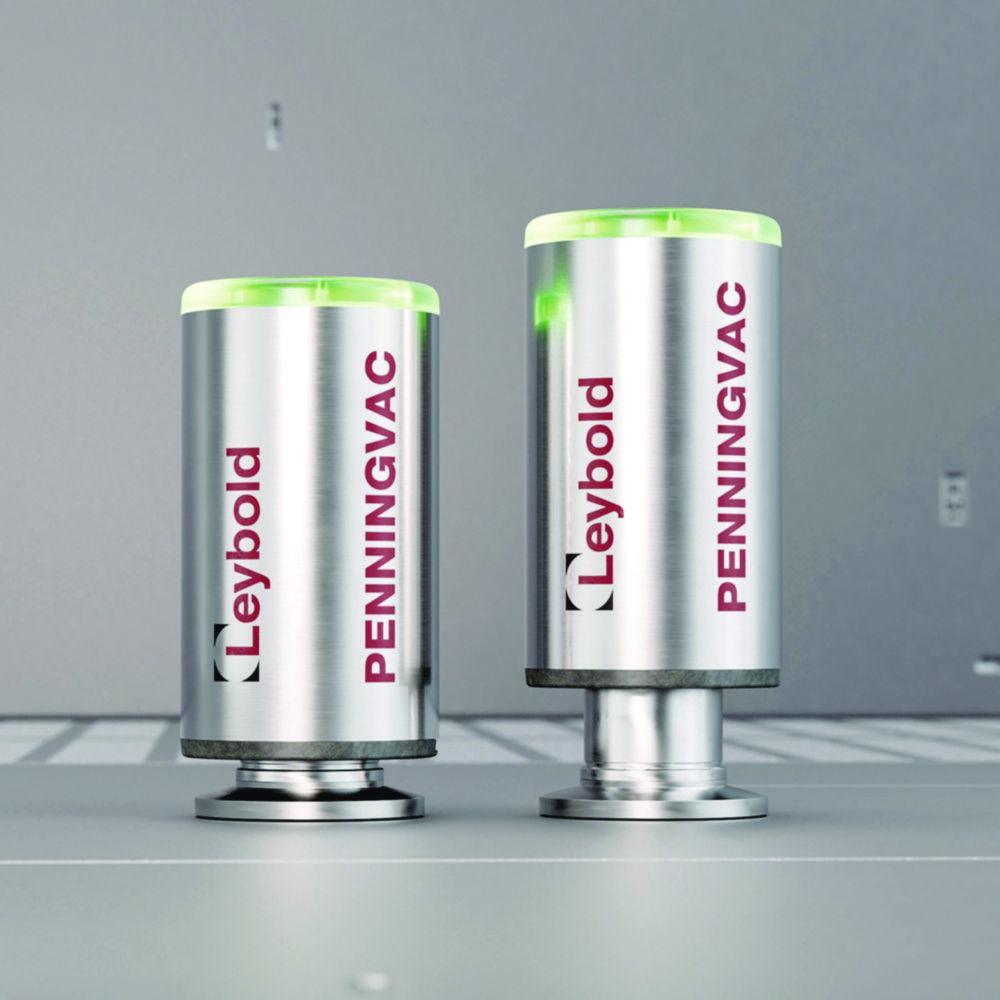

Gauge PENNINGVAC PTR 90 RN
The PENNINGVAC PTR 90 RN combines robust cold cathode tubes with a Pirani gauge. This enables accurate measurement from 1x 10-9 to 1000 mbar. The on/off function of the cold cathode is controlled automatically by the integrated Pirani gauge. The adaptive LED light ring indicates the live status of the gauge.Compact sizeEasy maintenanceAnalogue output 0 to 10 VFlange KF DN 25Connection plug RJ45/FCC68

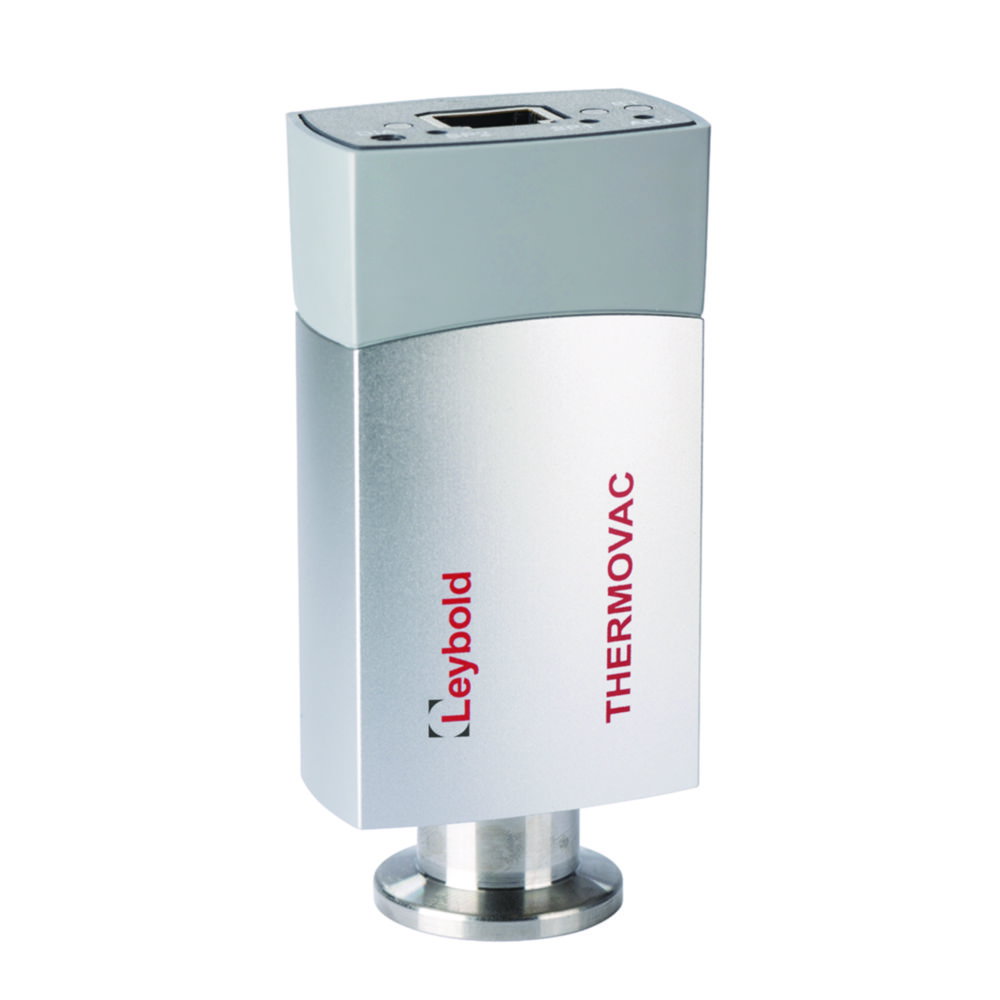

Gauge THERMOVAC TTR 101
The THERMOVAC TTR 101 combines the Pirani filament with a small capacitive measuring device. This enables precise measurements in the rough vacuum range.Compact sizeWith display for easy reading of the measured pressureEasily replaceable sensor elementLED signal for set point relay statusShort cycle operationConnection flange KF DN 16Complies with NRTL, ETL, RoHs, and WEEE standards
Gauge THERMOVAC TTR 91 RN
The gauge is equipped with the latest filament pirani technology to enable robust pressure measurement. The integrated filter protects the gauge from particle contamination. The LED light rings not only display basic information, but also indicate the pressure range.Compact sizeEasy maintenance without toolsFilament made of tungstenAnalogue output 0 to 10 VConnection plug RJ45/FCC68Flange KF DN 16

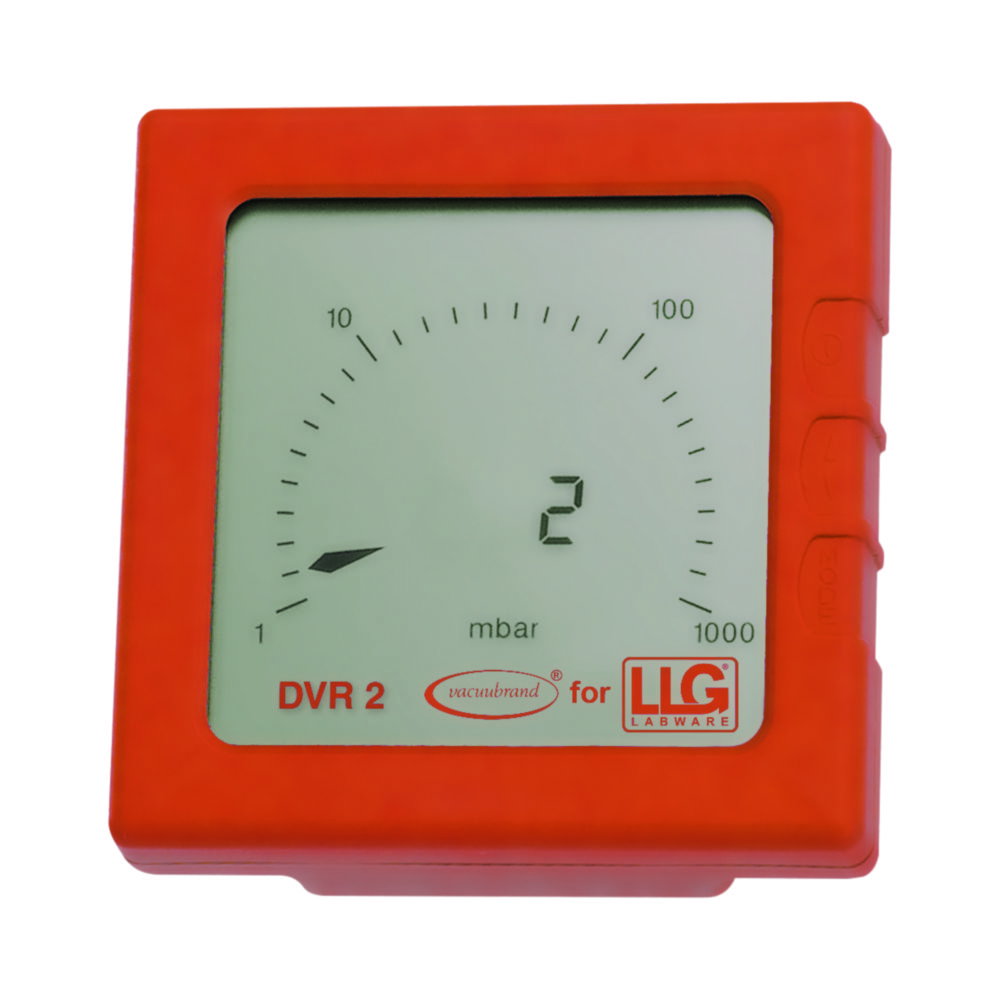

LLG-Vacuum measuring instrument DVR 2 pro
Versatile vacuum gauge for vacuum measurement between atmospheric pressure and 1 mbar.With integral, alumina ceramic, pressure transducer providing excellent corrosion resistance and long-term stability.Measurement principle: Capacitive; gas type-independent absolute pressure measurementMains independent due to battery operationLarge displayHigh measuring accuracyOptimal menu navigationWith support rodAll parts in contact with media are made of chemically resistant materialsDKD initial delivery calibration (Cat. No. 7.059 540) please order separately.Scope of supply: Vacuum measuring instrument with connections for small flange D16, compression fitting and tubing nozzle for tubing with 6 to 10 mm ID.
Storage and transport case for vacuum gauge THERMOVAC TM 201/PIEZOVAC PV 201
Robust storage and transport case with foam insert for secure device positioning. Protects against shocks, moisture and dust.

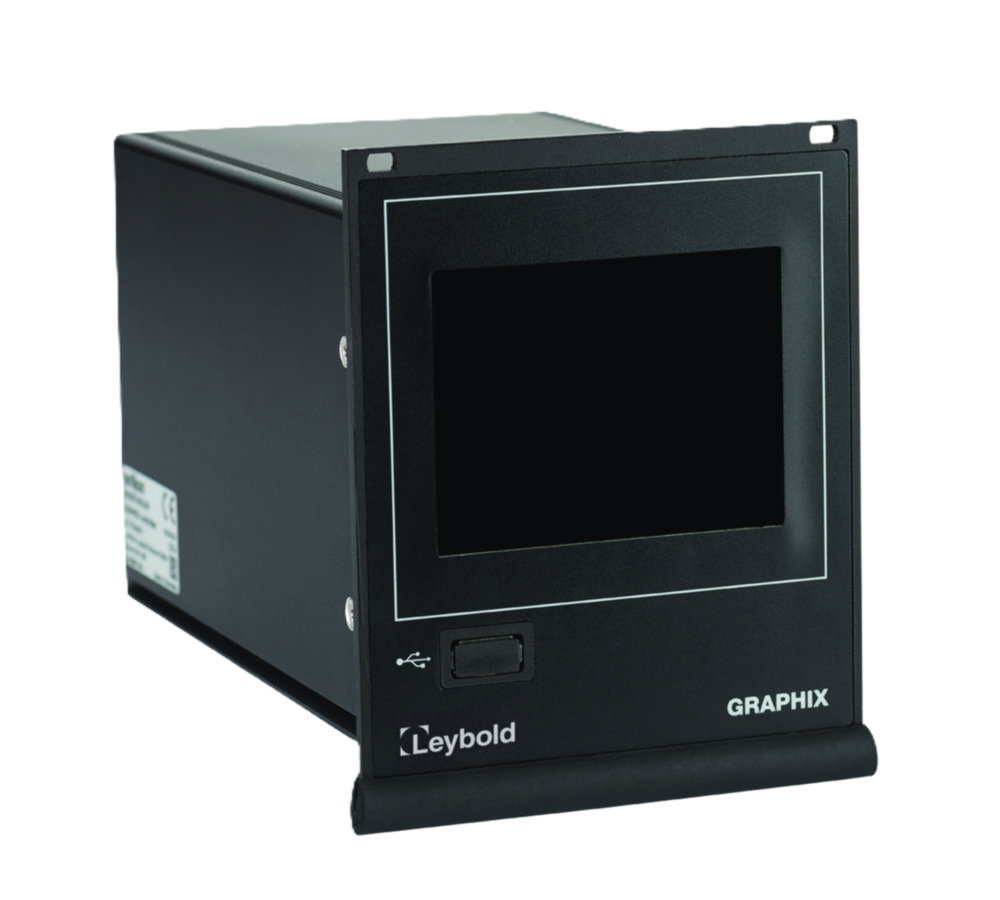

Vacuum control GRAPHIX
Universal controllers for connecting active vacuum sensors for direct pressure measurements.3.5" graphic touch display with intuitive menu navigationGraphical display of measurement dataDisplay range 10-10 to 2000 mbarVarious visualisation options (graphs and decimal display with zoom function)Display switchable between mbar, Torr, Micron, Pascal or PsiInternal and external storage (USB on the front) for measurement data and configuration filesLeak rate indication via pressure rise methodZero alignment and degas functionUp to six adjustable variable hysteresis switching thresholdsRS 232 C/RS 485 C interface with adjustable baud rate3 separate chart recorder outputs 0 to 10 volts for each measuring channel (analogue output)Relay output for error detectionSelectable languages: English, German, Chinese, Japanese, French, Italian, KoreanVisualisation via LEYASSIST software on the PCSoftware update possible via USB

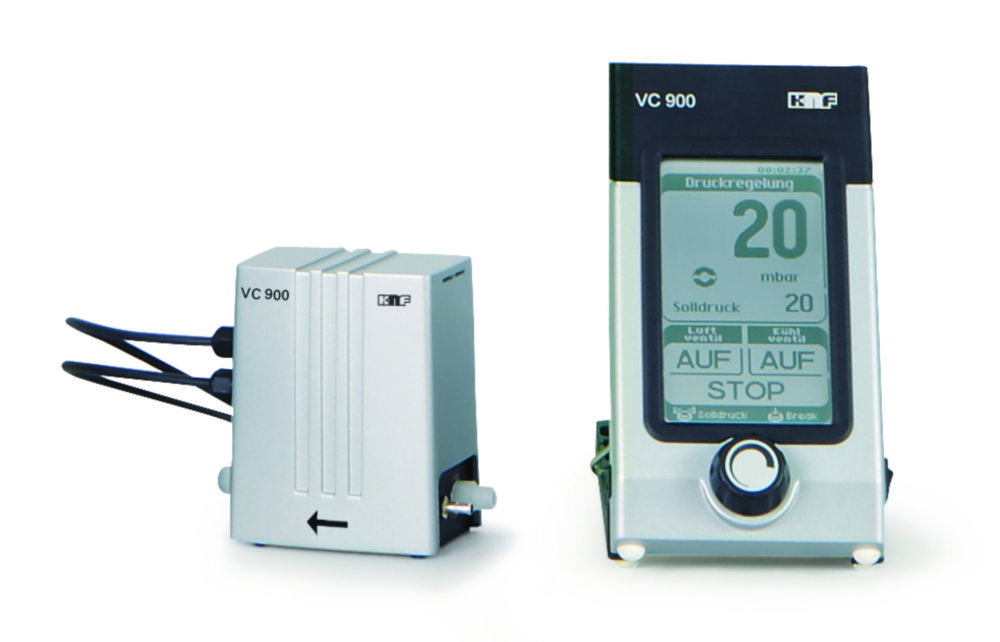

Vacuum Control Unit VC 900
Application: Rotary evaporation, Distillation, Multi-user vacuum systemEasy to use to control the vacuum applicationSeparate control unit with pressure sensors and two-step controlled valve to be placed independently from the operating unitVacuum controller can be operated with components from KNF and other producersPlease order the appropriate control cable for operating the N 920 G pump separately.

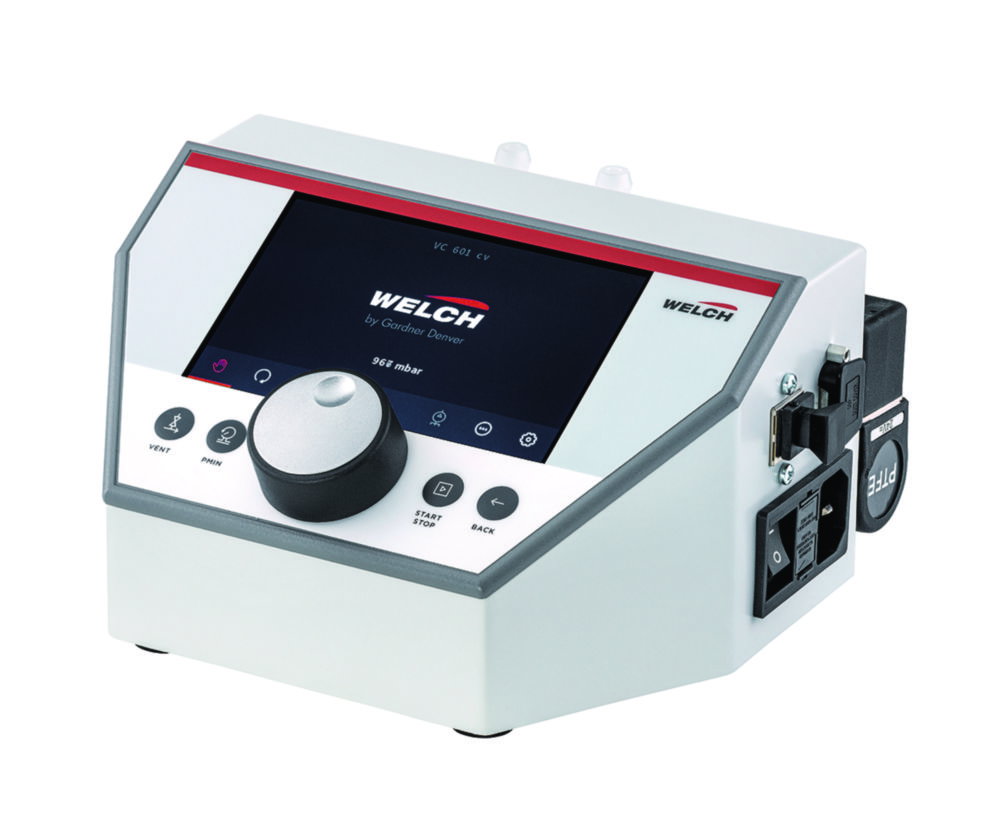

Vacuum Control Unit VCpro 601
Measures and displays vacuum pressure both graphically and digitally from 1100 to 1 mbar. Controlling the pressure can be done in real-time. The durable, chemically resistant sensor built into the VCpro 601 vacuum controller is a ceramic thick film hybrid. The sensor reading is gas independent and gives an absolute pressure.Precise vacuum control with timed ramp capabilityFully programmable modes to allow run repeatabilityIntuitive ICON-navigation of control screensConnectivity through LAN and RS232Built-in function for self-cleaning of diaphragm pumpSecurity levels for administrators and usersLog files on all pump activities for easy traceabilityHigh-Res display with dark and light screen modesDigital and analogue vacuum pressure displayAutomatic destillation controlCan be used with diaphragm or piston pumps from any manufacturerSuction / pressure connection: DN8 (6,35 mm ID) DN4 (3,2 mm ID)Inert Gas Port to Release Valve: DN4 (3,2 mm ID)

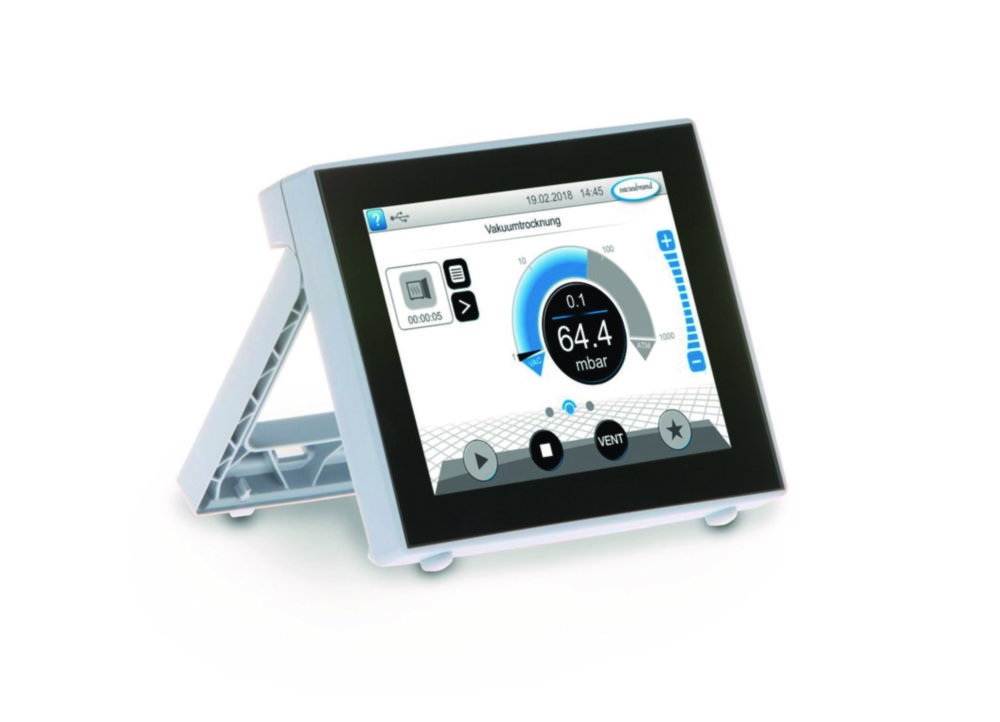

Vacuum Controller VACUU·SELECT
The fully equipped basic unit without vacuum control valve can be positioned freely. A matching range of accessories offers everything for fitting into a variety of laboratory applications.Scope of delivery: Vacuum Controller VACUU·SELECTwith integrated ceramic vacuum sensor and venting valve, fold-out stand and power supply.Please order suction line valves separately.

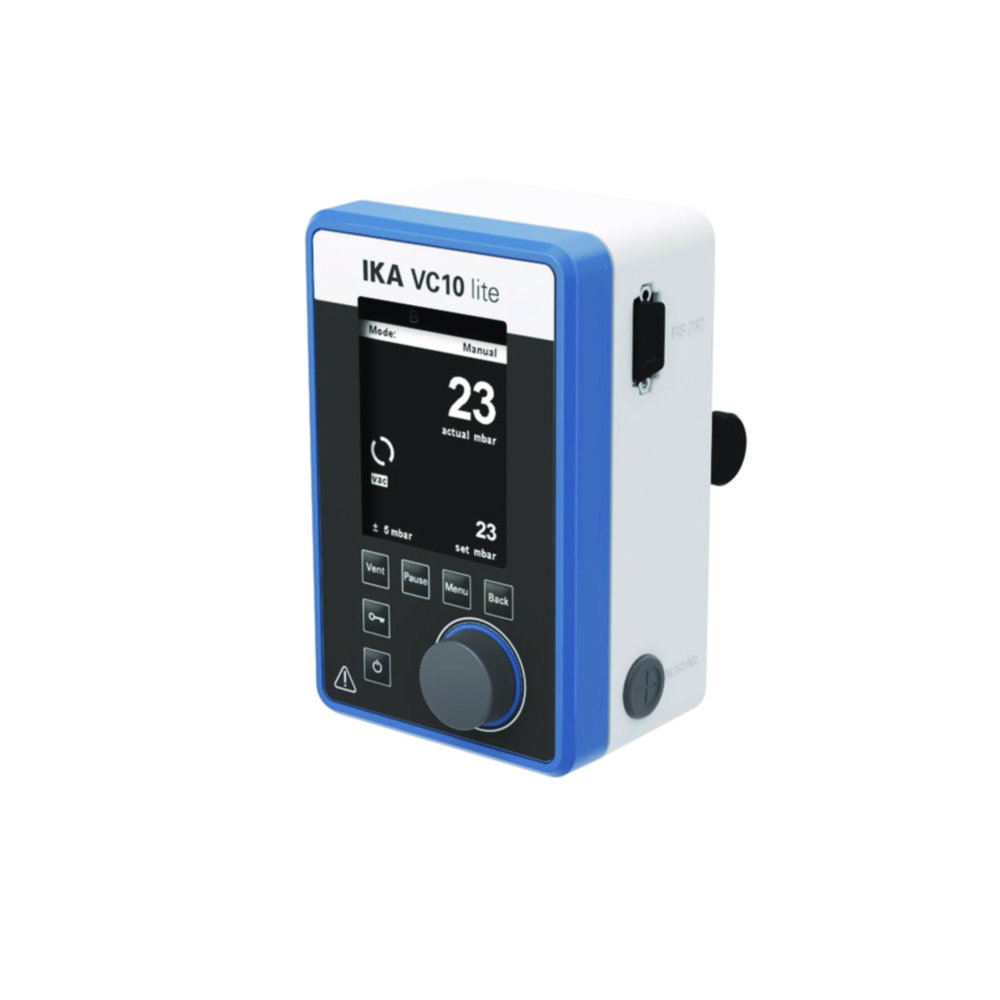

Vacuum controller VC 10 lite
Universal vacuum controller for the controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory.Valve cleaning function for long service lifeIntegrated vent valve for easy pressure equalisation and aeration with inert gas after process completionVENT short key button enables pressure equalisation during a running processUp to ten user-defined programmes with up to ten pressure/time sequences can be savedUSB/RS232 interfaces for connection to the laboratory software labworldsoft®Electronic control system for improved process efficiency and higher solvent recovery rates

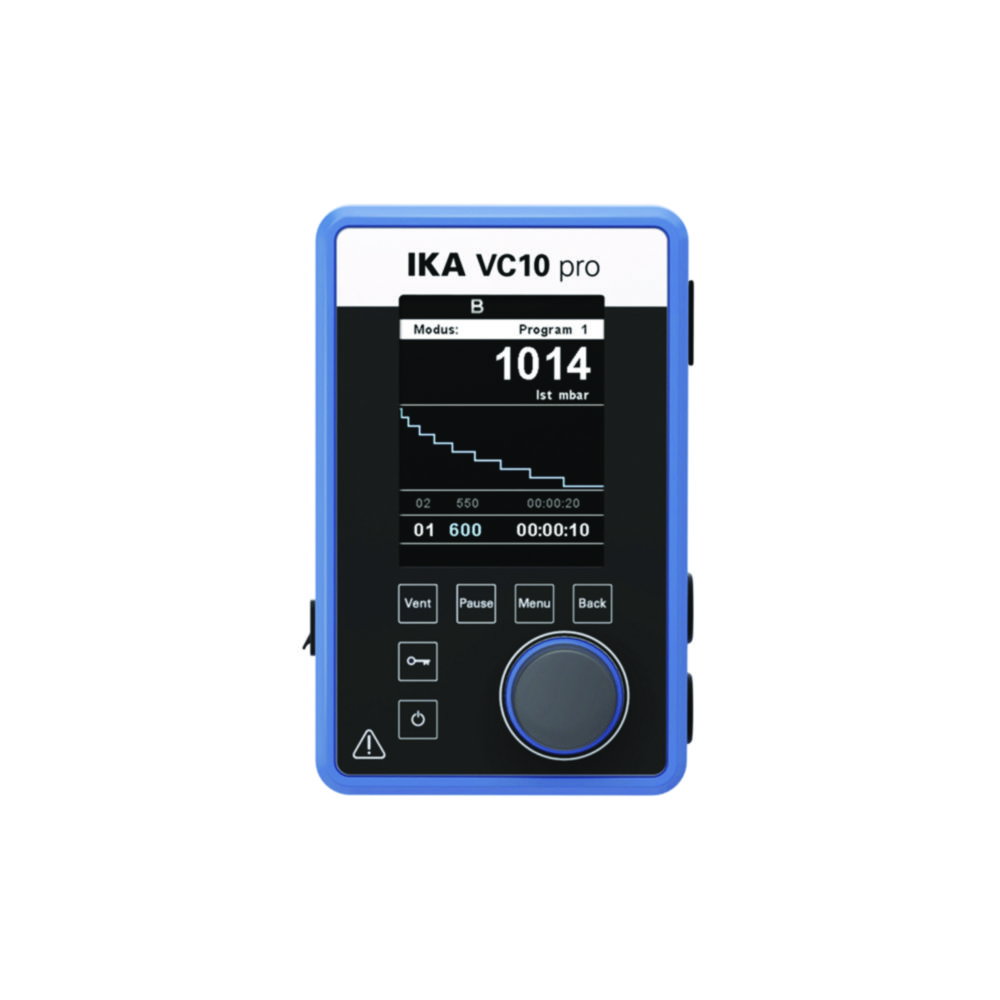

Vacuum controller VC 10 pro
Universal vacuum controller for the controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The integrated solvent library helps to set the correct parameters, for example in evaporation processes with rotary evaporators.On/off control of multiple vacuum sourcesAutomatic boiling point detectionGraphic functionConnection for external temperature sensorValve cleaning function for long service lifeIntegrated vent valve for easy pressure equalisation and aeration with inert gas after process completionVENT short key button enables pressure equalisation during a running processUp to ten user-defined programmes with up to ten pressure/time sequences can be savedUSB/RS232 interfaces for connection to the laboratory software labworldsoft®Electronic control system for improved process efficiency and higher solvent recovery rates

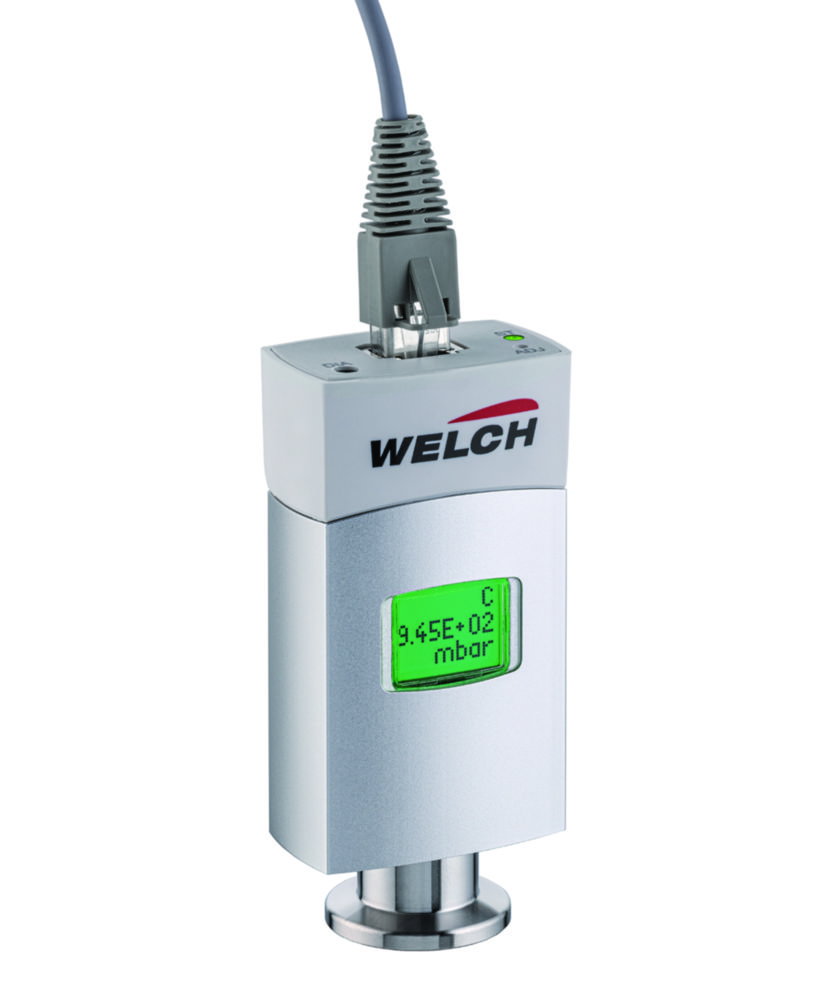

Vacuum gauge VMpro 2
The chemical-resistant vacuum gauge VMpro 2 combines Pirani technology with a ceramic capacitance diaphragm sensor and thus provides gas-type-independent, highly accurate values for reliable pressure measurement in the measuring range between 10 mbar and atmospheric pressure. The digital display ensures easy monitoring of the vacuum and shows the current measuring principle.Scope of supply: Vacuum gauge VMpro 2, AC/DC power adapter with EU and UK plug adapters, connection cable
