Colour measurement
Accessories for colorimeter Ultrospec 35c and cell density meter Ultrospec 30

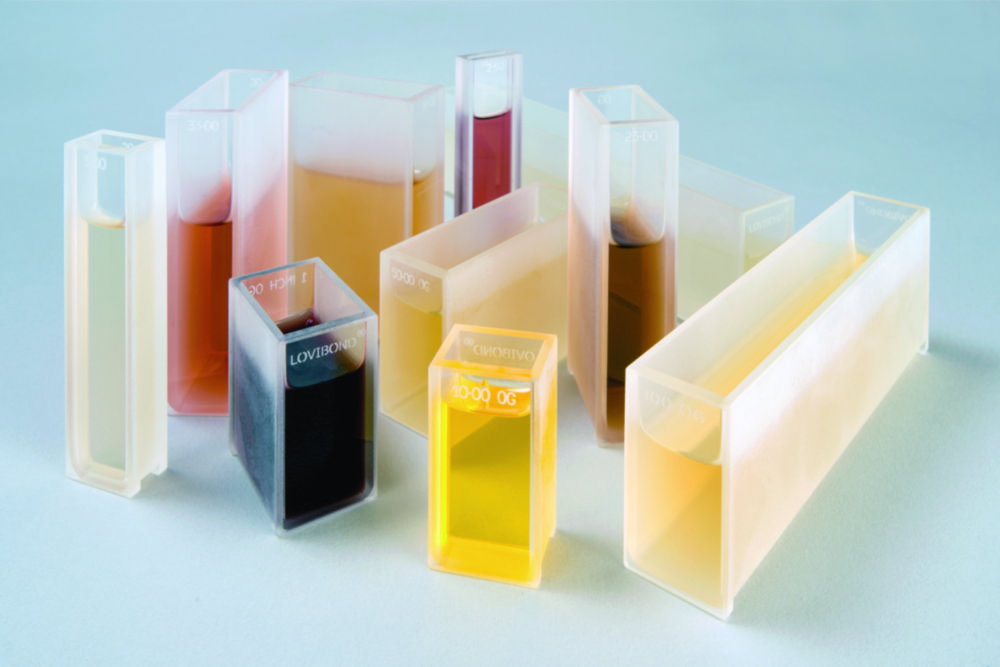

Cells W600
Cells made of optical glass or Borosilicate glass 3.3, 21 mm x 40 mm, for instument Models Fs, PFXi/PFX195, 880, 950 and 995. (Note: PFXi/PFX-195 max. path length 50 mm).W600/OG/xx for unheated samples (up to 40 °C)W600/B/xx for heated samples (up to max. 100 °C)Further versions available on request.
Cells W680
Cells made of optical glass 17 mm x 75 mm, for Comparator 2000+ and Comparator 3000 using unheated samples (up to 40 °C).Further versions available on request.
Colorimeter Fx
The Lovibond® Model Fx solves the problem of measuring the colour of edible oils and fats with its unique ability to not only keep the oil at a constant temperature but also to measure and report on the temperature of the sample, avoiding any misreading from crystallisation. The oils can now be measured in their natural and correct state.Avoids misreading from crystallisationMeasures Lovibond® RYBN, Lovibond RY10:1, AOCS RY, Chlorophyll & b-CaroteneAllows the Measurement of Hot Samples (Integrated Heater)Ensured Compliance to StandardsScope of supply: Colorimeter, W600/B/1" cell (borosilicate, 1" path length), W600/B/5¼" cell (borosilicate, 5¼" path length), external power supply, quick start guide (hard copy), USB memory stick (containing the manuals), certificate of conformity

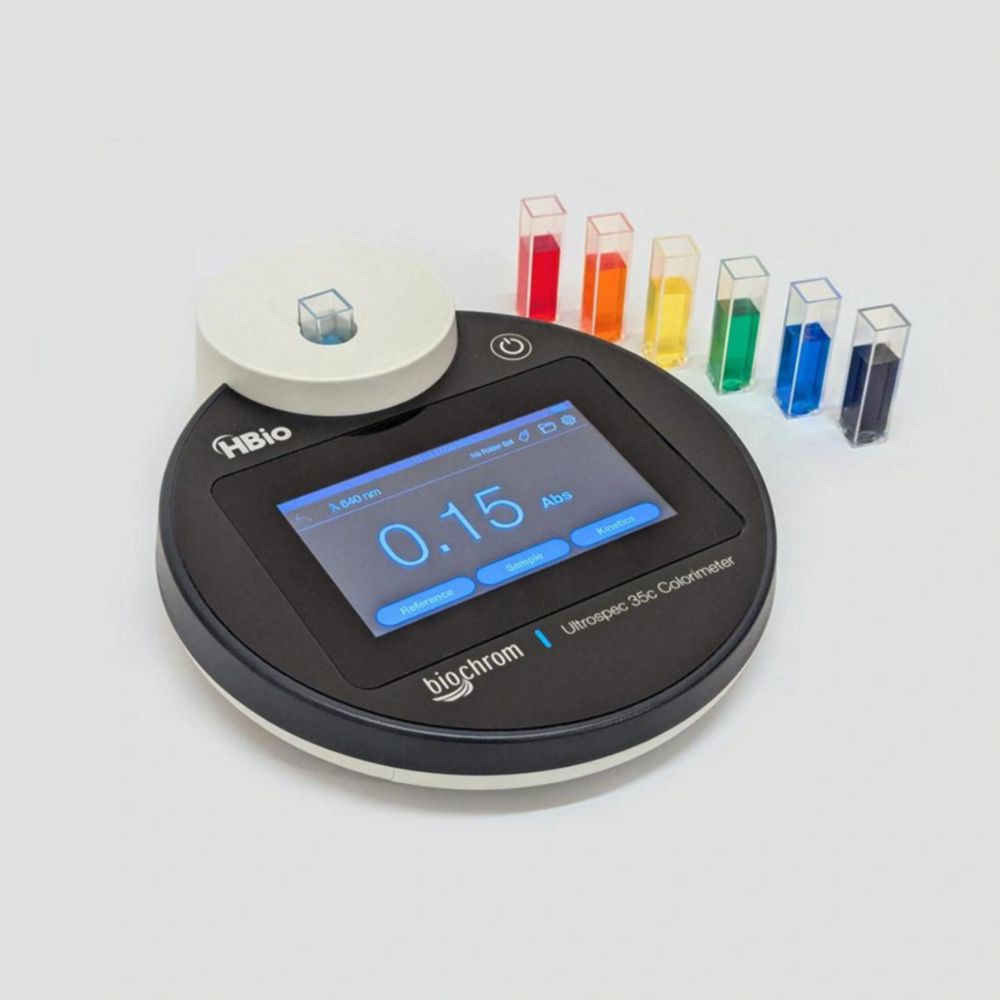

Colorimeter Ultrospec 35c
Compact, portable colorimeter for measuring the absorbance/transmission of liquid samples in a cuvette or test tube at a specified wavelength to determine the molecular concentration. Ideal for use in the laboratory or in the field for quantification and analysis in life science, chemistry, and physics.Large, backlit 4.3" LCD colour touchscreen displayUSB ports for exporting measurement dataModes: Absorbance, % transmission, kineticsSelectable wavelengths: 450, 500, 520, 540, 600, 640 nmStorage of measurement dataEasy cleaning and maintenanceScope of supply: Colorimeter, USB-C cable, 8 cuvettes, quick start guide, power supply with plug adapter EU, UK, China/AUS, US

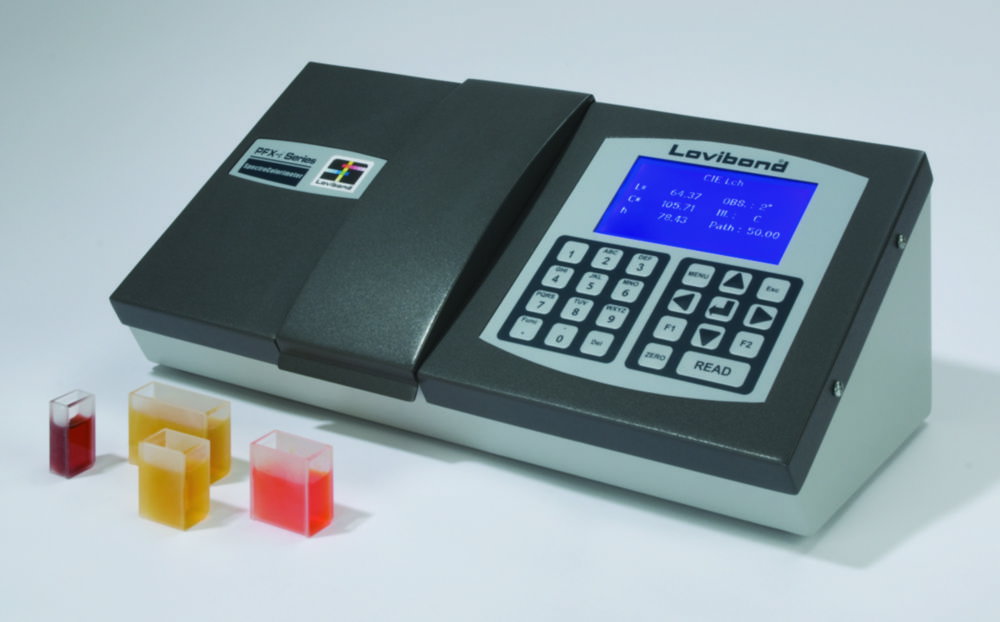

Colorimeters, Lovibond® PFXi series
The PFXi series of spectrophotometric colorimeters introduces a unique concept in liquid colour control: RCMSi technology (Remote Calibration & Maintenance Service via internet). Users can benefit from the capability for remote calibration and servicing via the internet - eliminating any costs and time delays associated with servicing and guaranteeing compliance with standards. The PFXi range is supplied with a full range of colour scales for specific markets including, but not limited to, Petroleum, Edible Oils, Pharmaceuticals, Brewing and Honey. Users can upgrade scales remotely at any time. Every PFXi is supplied with colour control software for data analysis (LAN & USB cable provided). Optical glass cells, a certified glass calibration filter, a spare lamp and user instructions included. The PFXi-880 and -995 series are available with an optional integrated heater unit. (This is not available for the PFXi-195). This is a critical feature when dealing with materials such as fats and waxes where temperature needs to be maintained at a constant temperature +10°C above the "Cloud Point" of the material.Please Note: CIE values and spectral data readings are standard on all the instruments listed below.

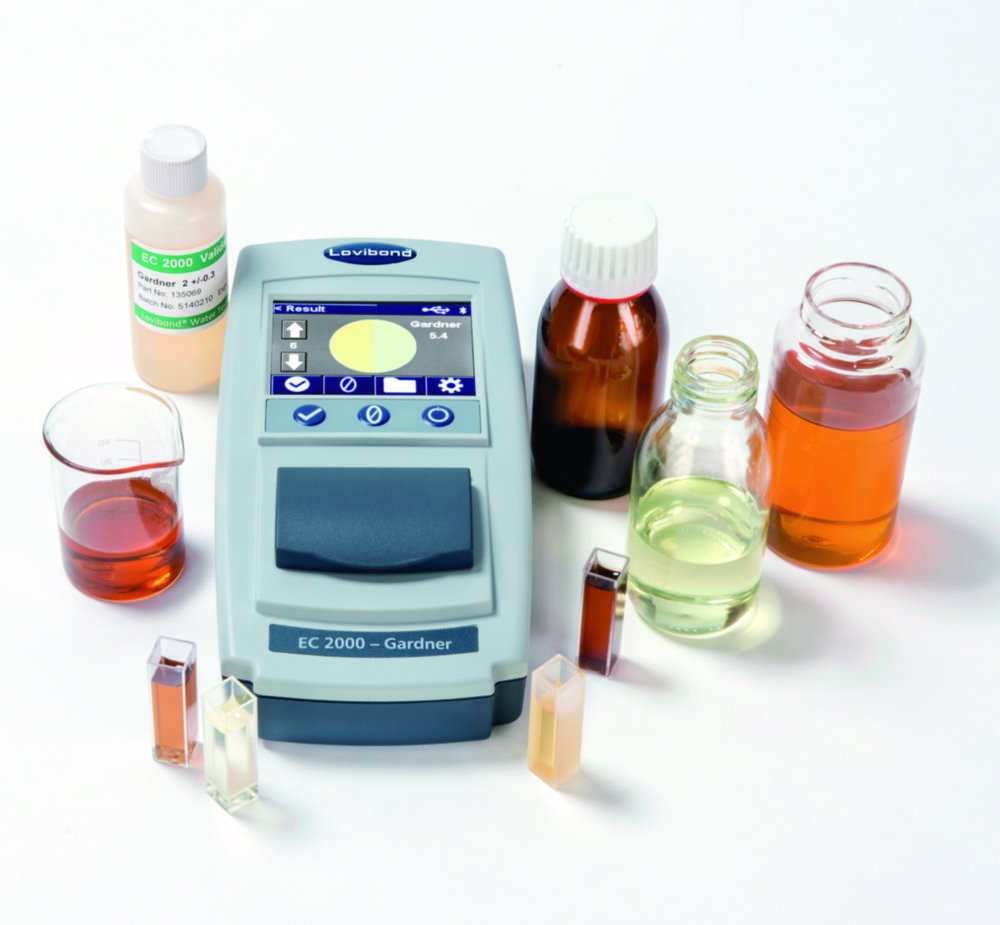

Comparator EC 2000 GARDNER
Two-Field Comparator View and nummerical results. The EComparator series offers the progress from Visual (subjective) to Electronic (objective) results. The EC 2000 range provides users with a Two Field View visual representation in alignment with the popular Lovibond® Comparator 2000+ system widely used today.With the EComparator series, viewers can view the colour difference with on-screen colour and on-screen numerical display. Touch screen technology makes the EComparator easily programmable with instinctive menus on screen. Users can set language, date and time, view preferences and create projects with individual tolerance settings "within tolerance" (green), "outside tolerance" (red) and "on border of tolerance" (amber) to provide the user with immediate information on the sample.Instant and accurate, ready for immediate useGuaranteed agreement with international standardsResults shown on display optional as colour or numeric valueDigital, mobile technology at the press of a buttonInstant reporting from the laboratory or on siteEC 2000 GARDNER: ASTM D 1544, ASTM D 6166, AOCS Td 1a, MS 817 Part 10. Resins, varnishes, lacquers, drying oils, fatty acids, lecithins, sunflower oil, linseed oil. Incl. cells (3 x 10 mm W100 plastic) and (1 x 10 mm W100 OG)Scope of supply: Liquid reference standards and 1 glass standard included

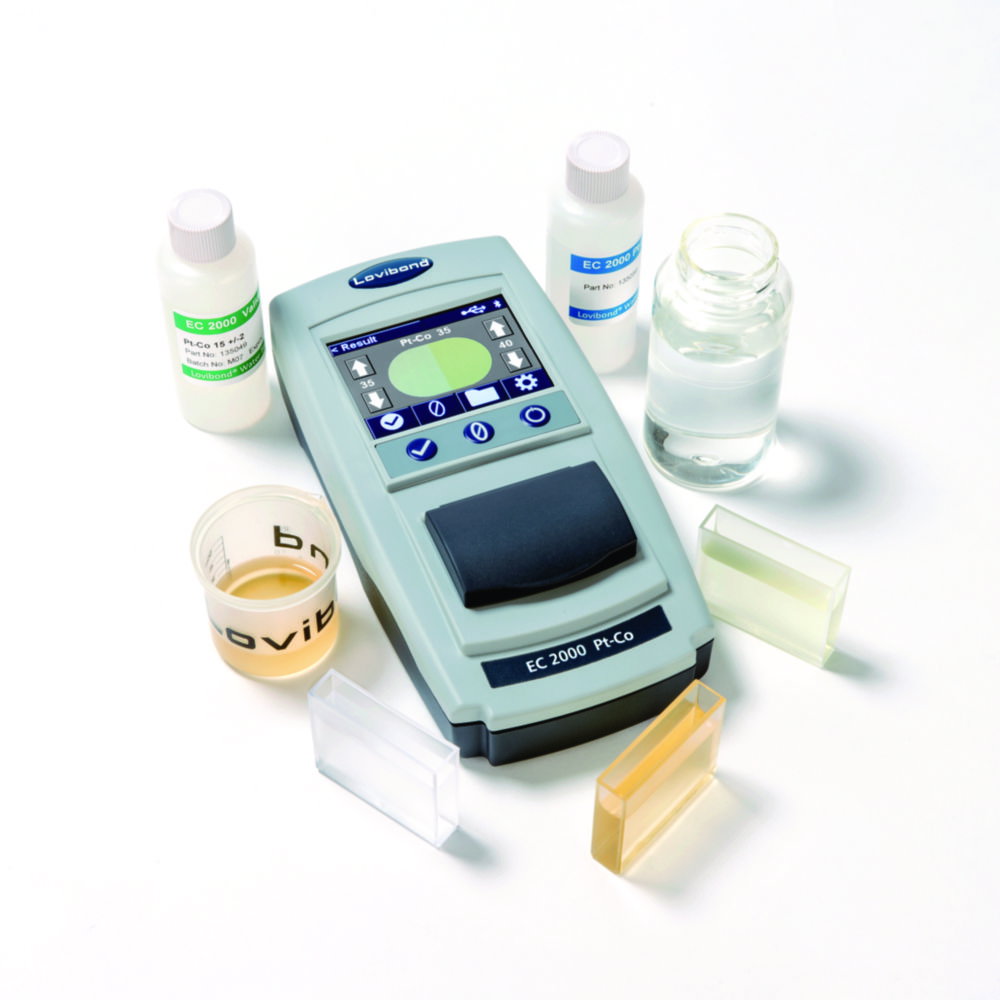

Comparator EC 2000 PT CO
Two-Field Comparator View and nummerical results. The EComparator series offers the progress from Visual (subjective) to Electronic (objective) results. The EC 2000 range provides users with a Two Field View visual representation in alignment with the popular Lovibond® Comparator 2000+ system widely used today.With the EComparator series, viewers can view the colour difference with on-screen colour and on-screen numerical display. Touch screen technology makes the EComparator easily programmable with instinctive menus on screen. Users can set language, date and time, view preferences and create projects with individual tolerance settings "within tolerance" (green), "outside tolerance" (red) and "on border of tolerance" (amber) to provide the user with immediate information on the sample.Instant and accurate, ready for immediate useGuaranteed agreement with international standardsResults shown on display optional as colour or numeric valueDigital, mobile technology at the press of a buttonInstant reporting from the laboratory or on siteEC 2000 PT CO: Platinum-Cobalt/Hazen/Apha Colour (ASTM D 1209)/True Colour Units (TCU). Water, clear oils, chemicals and petrochemicals. Incl. cells (3 x 50 mm W100 plastic) and (1 x 50 mm W100 OG)Scope of supply: Liquid reference standards and 1 glass standard included

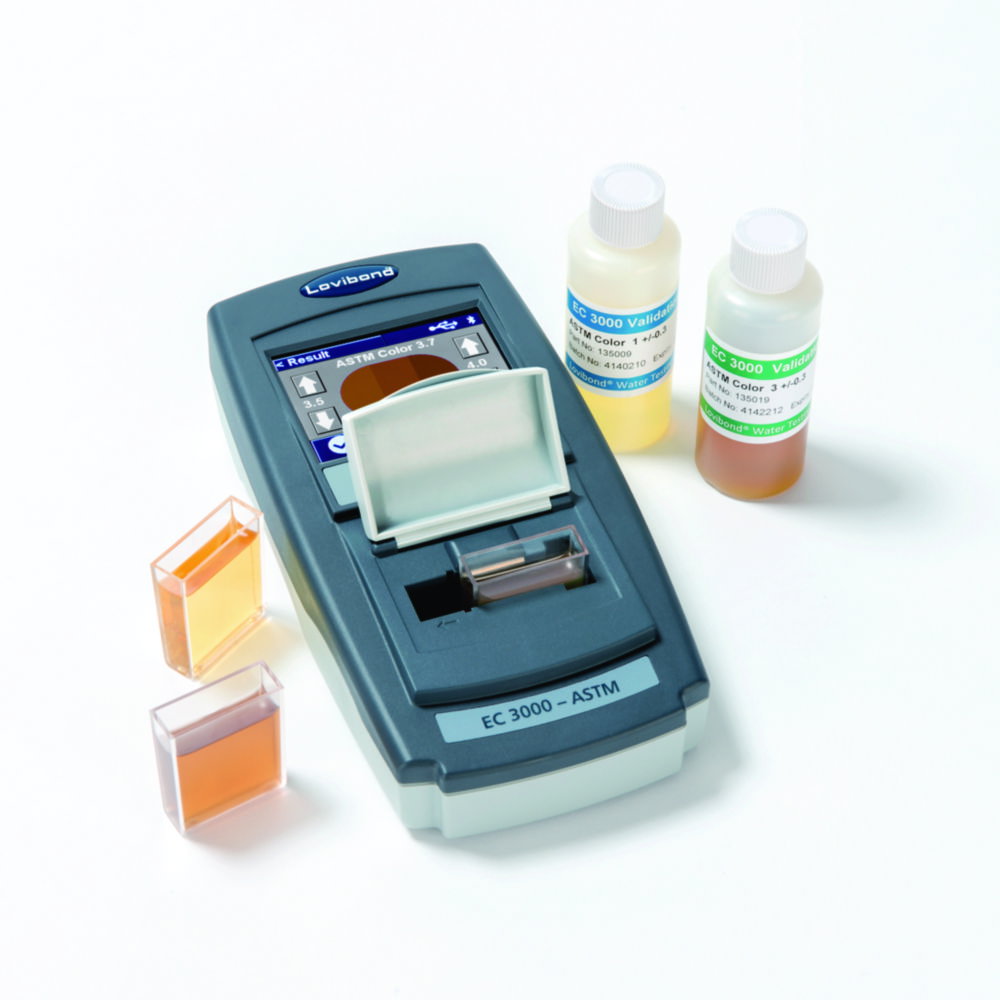

Comparator EC 3000 ASTM COLOR
Three-Field Comparator View and nummerical results. The EComparator series offers the progress from Visual (subjective) to Electronic (objective) results. The EC 3000 range provides users with a Three Field View visual representation in alignment with the popular Lovibond® Comparator 3000/AF comparators. Here the sample and two consecutive readings of the colour scale are viewed simultaneously, making it easier to achieve the optimum colour match.With the EComparator series, viewers can view the colour difference with on-screen colour and on-screen numerical display. Touch screen technology makes the EComparator easily programmable with instinctive menus on screen. Users can set language, date and time, view preferences and create projects with individual tolerance settings "within tolerance" (green), "outside tolerance" (red) and "on border of tolerance" (amber) to provide the user with immediate information on the sample.Instant and accurate, ready for immediate useGuaranteed agreement with international standardsResults shown on display optional as colour or numeric valueDigital, mobile technology at the press of a buttonInstant reporting from the laboratory or on siteEC 3000 ASTM COLOR: ASTM D 1500, ASTM D 6045, ISO 2049, IP196. For mineral oils and petrochemicals. Incl. cells (2 x 33 mm W100 plastic) and (2 x 33 mm W100 OG)Scope of supply: Liquid reference standards and 2 glass standards included

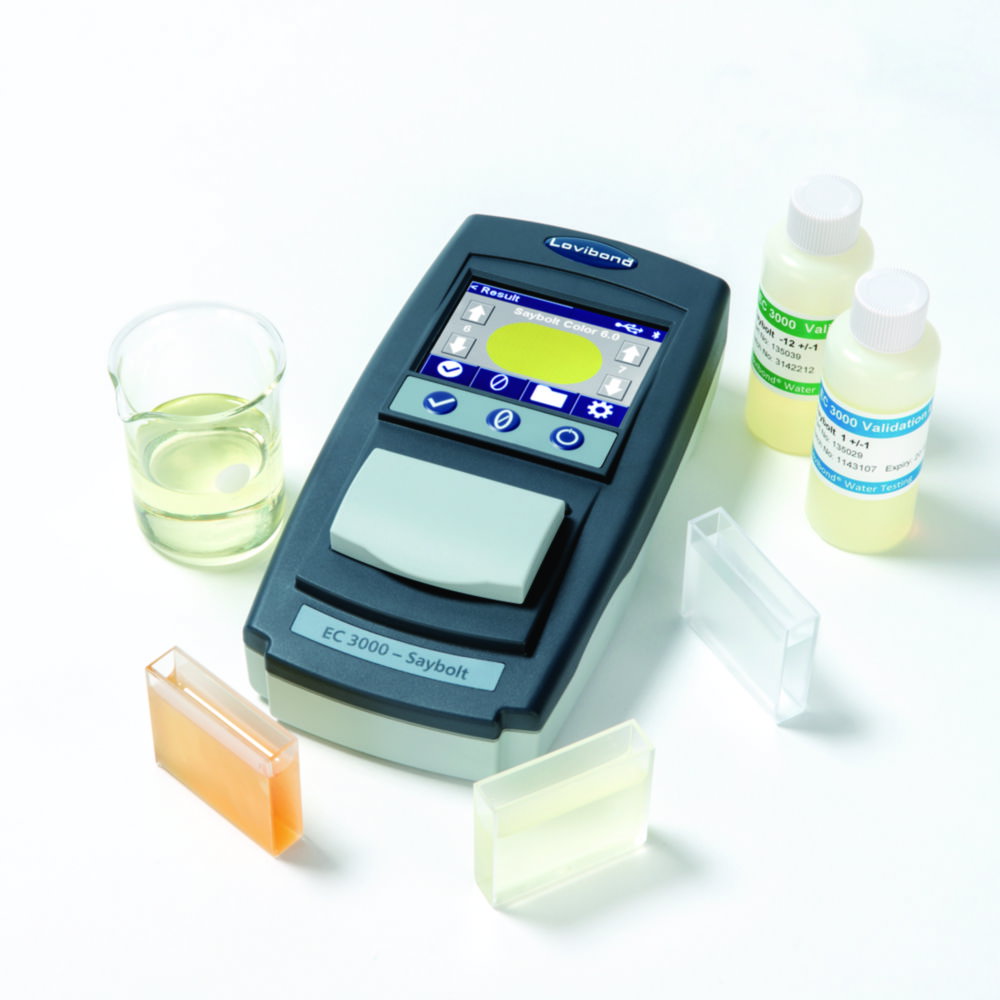

Comparator EC 3000 SAYBOLT
Three-Field Comparator View and nummerical results. The EComparator series offers the progress from Visual (subjective) to Electronic (objective) results. The EC 3000 range provides users with a Three Field View visual representation in alignment with the popular Lovibond® Comparator 3000/AF comparators. Here the sample and two consecutive readings of the colour scale are viewed simultaneously, making it easier to achieve the optimum colour match.With the EComparator series, viewers can view the colour difference with on-screen colour and on-screen numerical display. Touch screen technology makes the EComparator easily programmable with instinctive menus on screen. Users can set language, date and time, view preferences and create projects with individual tolerance settings "within tolerance" (green), "outside tolerance" (red) and "on border of tolerance" (amber) to provide the user with immediate information on the sample.Instant and accurate, ready for immediate useGuaranteed agreement with international standardsResults shown on display optional as colour or numeric valueDigital, mobile technology at the press of a buttonInstant reporting from the laboratory or on siteEC 3000 SAYBOLT: ASTM D 156, ASTM D6045. Aviation fuels, kerosene, naphthas, white mineral oils, hydrocarbon solvents, petroleum waxes. Incl. cells (2 x 50 mm W100 plastic) and (2 x 50 mm W100 OG)Scope of supply: Liquid reference standards and 2 glass standards included

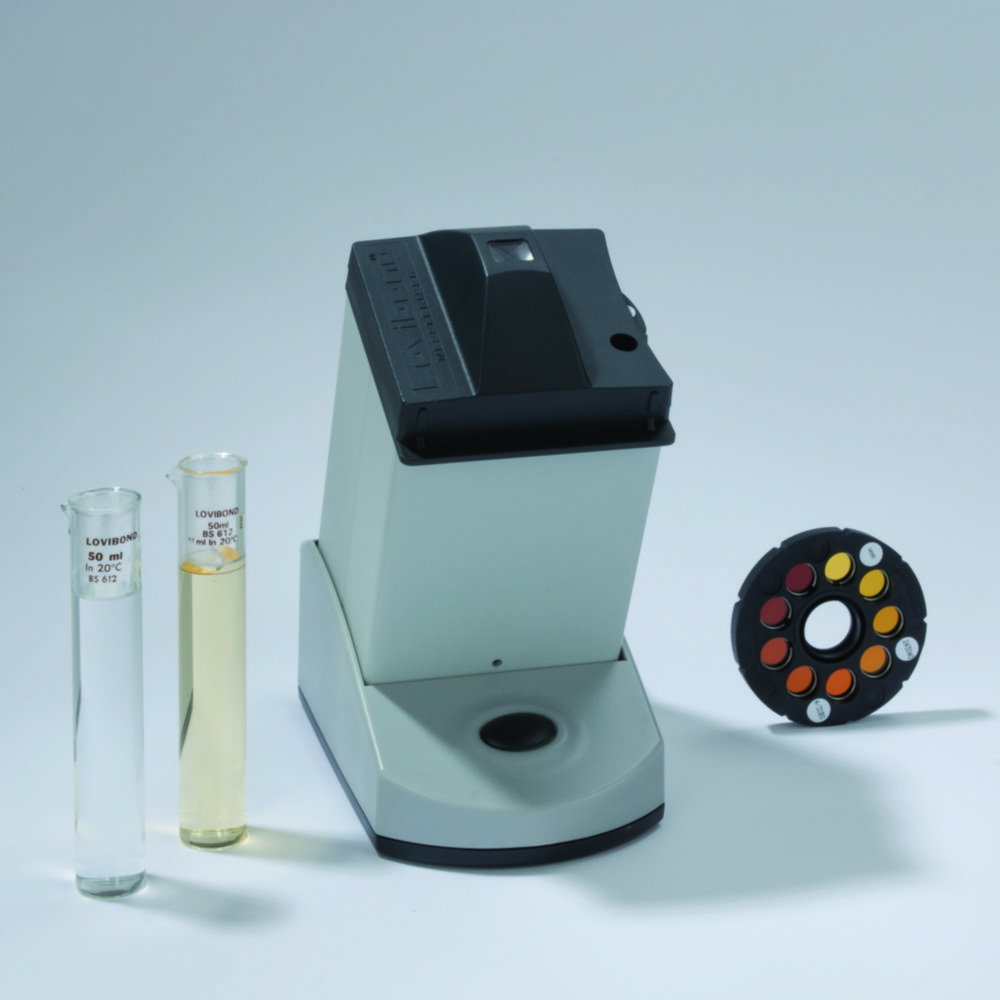

Lovibond® Comparator 2000+
Lovibond® Comparator 2000+ is a quality instrument for the visual analysis of colour intensity in analysis samples using Lovibond colour discs. The integral cell attachment enables cells with a depth of 40mm to be accepted. The Lovibond® Nessleriser system provides greater depths by using corresponding accessory Nessler tubes. This enables the determination of concentrations below the detection limit of the Lovibond® Comparator 2000+. The integral prism in the Lovibond® Comparator 2000+ brings the glass standard of the colour discs and the colour samples optically into the field of view. The prism is hermetically sealed, preventing the lens from being contaminated. Both the Comparator 2000+ and the Nessleriser are designed in such a way that they compensate for cloudy or coloured water samples. Each device is available for use in daylight or in combination with the artificial daylight unit 2000.
Lovibond® Comparator 2000+/Nessleriser with Nessler tubes
Lovibond® Comparator 2000+ is a quality instrument for the visual analysis of colour intensity in analysis samples using Lovibond colour discs. The integral cell attachment enables cells with a depth of 40mm to be accepted. The Lovibond® Nessleriser system provides greater depths by using corresponding accessory Nessler tubes. This enables the determination of concentrations below the detection limit of the Lovibond® Comparator 2000+. The integral prism in the Lovibond® Comparator 2000+ brings the glass standard of the colour discs and the colour samples optically into the field of view. The prism is hermetically sealed, preventing the lens from being contaminated. Both the Comparator 2000+ and the Nessleriser are designed in such a way that they compensate for cloudy or coloured water samples. Each device is available for use in daylight or in combination with the artificial daylight unit 2000.
Lovibond® Comparator 2000+/Nessleriser with stand
Lovibond® Comparator 2000+ is a quality instrument for the visual analysis of colour intensity in analysis samples using Lovibond colour discs. The integral cell attachment enables cells with a depth of 40mm to be accepted. The Lovibond® Nessleriser system provides greater depths by using corresponding accessory Nessler tubes. This enables the determination of concentrations below the detection limit of the Lovibond® Comparator 2000+. The integral prism in the Lovibond® Comparator 2000+ brings the glass standard of the colour discs and the colour samples optically into the field of view. The prism is hermetically sealed, preventing the lens from being contaminated. Both the Comparator 2000+ and the Nessleriser are designed in such a way that they compensate for cloudy or coloured water samples. Each device is available for use in daylight or in combination with the artificial daylight unit 2000.
Lovibond® Comparator 2000+/Nessleriser with stand, daylight unit
Lovibond® Comparator 2000+ is a quality instrument for the visual analysis of colour intensity in analysis samples using Lovibond colour discs. The integral cell attachment enables cells with a depth of 40mm to be accepted. The Lovibond® Nessleriser system provides greater depths by using corresponding accessory Nessler tubes. This enables the determination of concentrations below the detection limit of the Lovibond® Comparator 2000+. The integral prism in the Lovibond® Comparator 2000+ brings the glass standard of the colour discs and the colour samples optically into the field of view. The prism is hermetically sealed, preventing the lens from being contaminated. Both the Comparator 2000+ and the Nessleriser are designed in such a way that they compensate for cloudy or coloured water samples. Each device is available for use in daylight or in combination with the artificial daylight unit 2000.

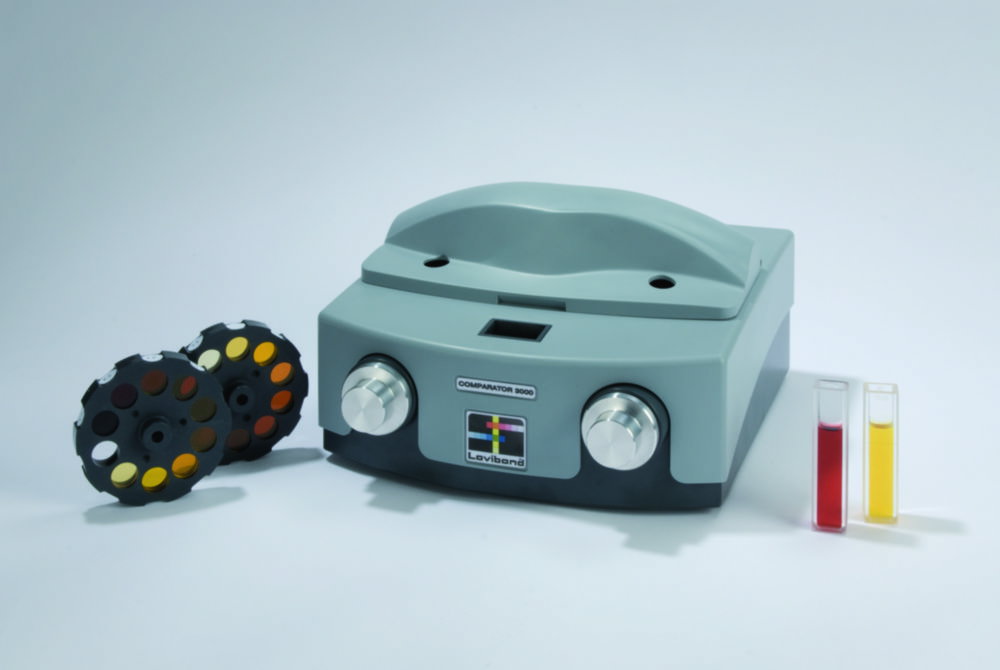

Lovibond® Comparator 3000
Visual comparators for colour grading. A series of 3-field instruments designed for visual colour grading by direct comparison between the sample and coloured glass standards. The sample and two adjacent glasses on the colour scale are viewed simultaneously, making it easier to achieve the optimum colour match. The tungsten halogen light source is colour corrected to CIE Standard Illuminant C (B for the EBC Comparator 3000) and guarantees constant lighting conditions for colour grading. Versions of the Comparator 3000 are available for the following scales, each supplied with the appropriate range of colour standards and sample containers:

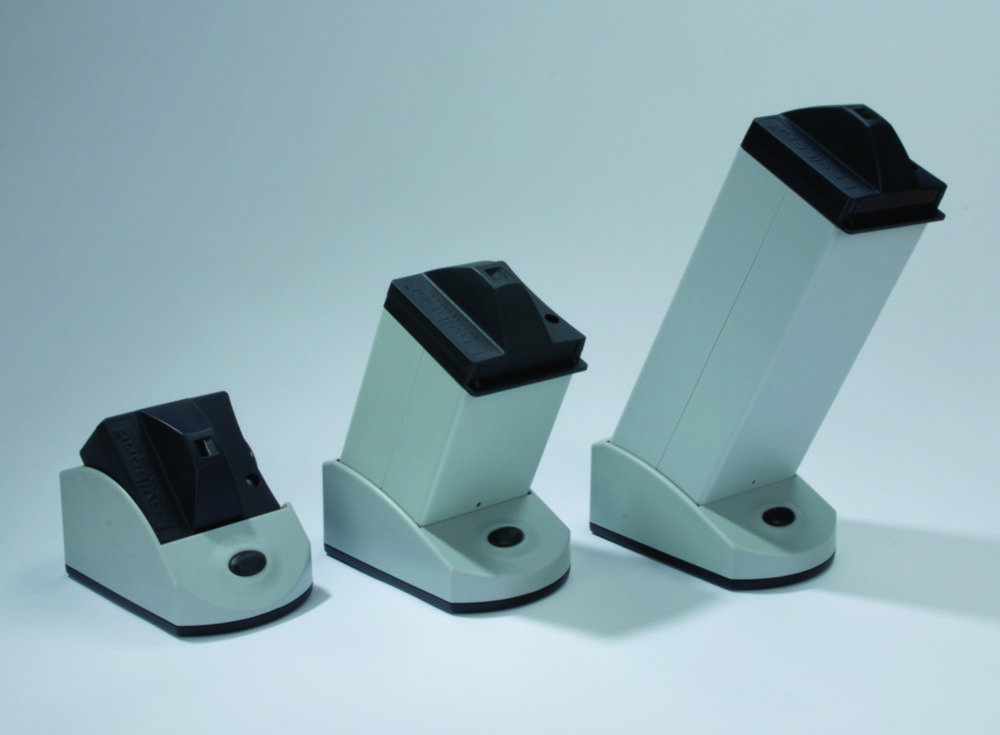

Lovibond® Nessleriser Systems, Pt-Co/Hazen/APHA Scale
Lovibond® Comparator 2000+ is a quality instrument for the visual analysis of colour intensity in analysis samples using Lovibond colour discs. The integral cell attachment enables cells with a depth of 40mm to be accepted. The Lovibond® Nessleriser system provides greater depths by using corresponding accessory Nessler tubes. This enables the determination of concentrations below the detection limit of the Lovibond® Comparator 2000+. The integral prism in the Lovibond® Comparator 2000+ brings the glass standard of the colour discs and the colour samples optically into the field of view. The prism is hermetically sealed, preventing the lens from being contaminated. Both the Comparator 2000+ and the Nessleriser are designed in such a way that they compensate for cloudy or coloured water samples. Each device is available for use in daylight or in combination with the artificial daylight unit 2000.
Nessler cylinders, Soda-lime glass
With spout and white circular mark. Calibrated "In".

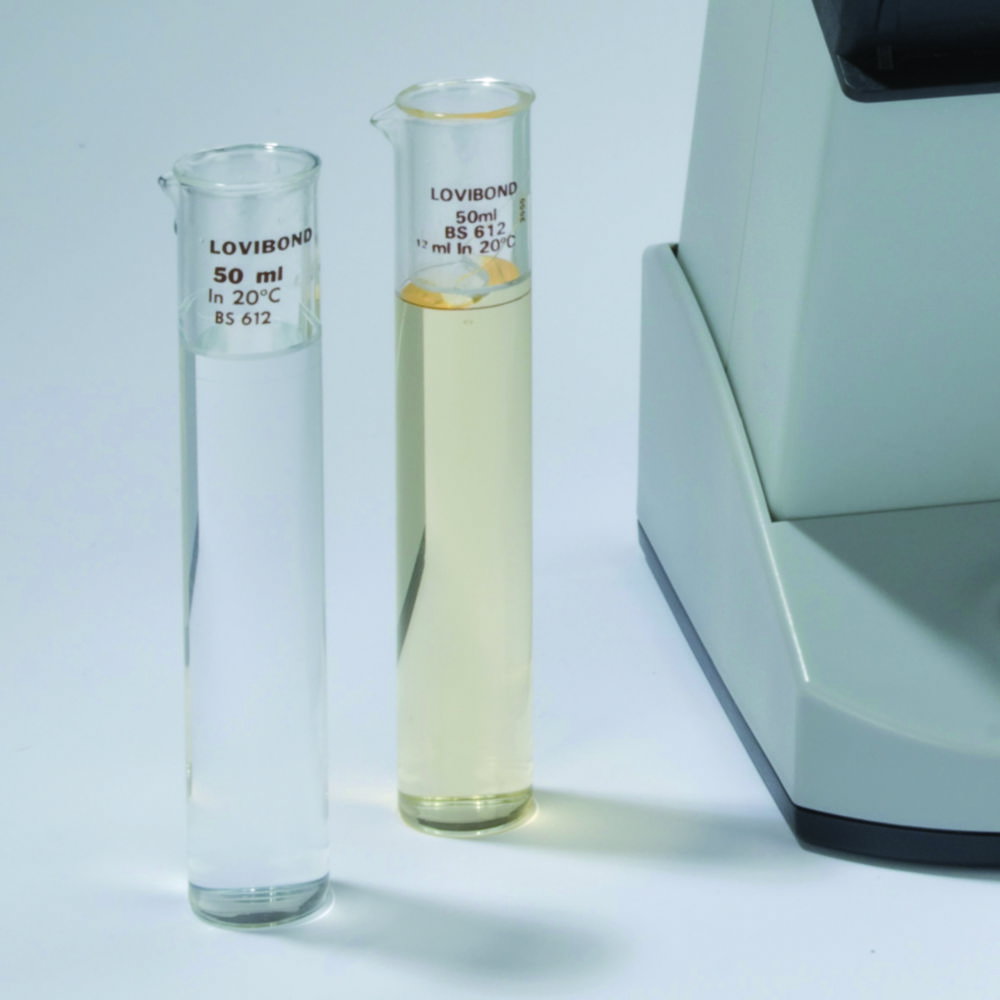

Nessler tubes for Lovibond® Comparator System 2000
Nessler cylinder AF306P, 113 mm: For use with the Nessleriser 2150 for the measurement of the Pt-Co/Hazen colour discs NSH (10-90 mg Pt/l) and NSB (70-250 mg Pt/l) and NSX (50-300 mg Pt/l).Nessler cylinder DB420, 250 mm: For use with the Nessleriser 2250 for the measurement of the Pt-Co/Hazen colour discs CAA (0-30 mg Pt/l) and CAB (30-70 mg Pt/l).

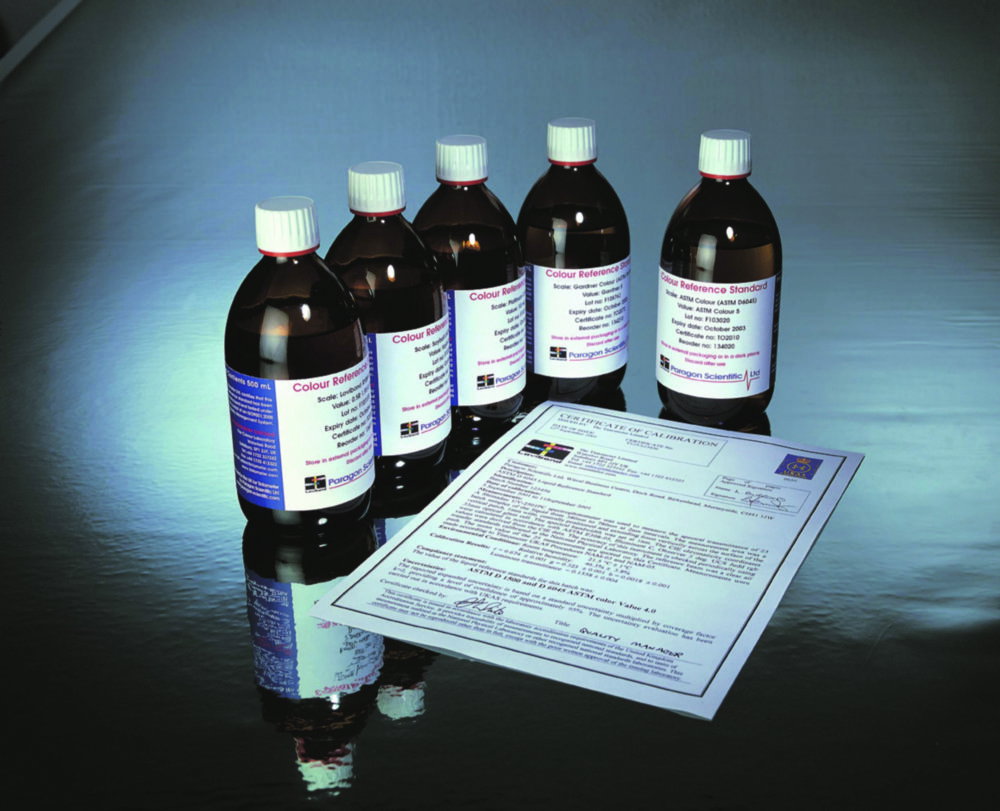

Pt-Co Reference Standards
Bottles of 500 ml, certified according to QS System, ISO 9001. Shelf life 12 months. Other versions available on request.
