Thermocyclers
Real-time PCR-system QPCR-500
High specification, economically priced real-time thermocycler. The QPCR-500 system has a unique high thermal block uniformity (±0.1 °C). This uniformity as well as validated sample volumes of down to 5 µl enable an optimized reaction run time for 40 cycles down to only 15 minutes. The uniform temperature across the plate is achieved with a unique heating and cooling system that quickly enables a uniform temperature of ±0.1 °C in every well of the block within a fraction of a second of reaching each well temperature. This high uniformity eliminates the need for triplicates which reduces reagent running costs. QPCR-500 accommodates a unique and economical 48-well PCR plate, the size of which is only 1/8 the size of a standard 96-well plate. The well format mirrors a 384-well plate therefore allowing the use of a 16-channel micropipette. The small plate cuts reagent costs in half whilst still producing a strong fluorescent signal. Applications include e.g. absolute and relative quantification, Allelic Discrimination and High Resolution Melt.Features:Validated volume per well: 5 to 20 µlHigh temperature uniformity of ±0.1 °C across the whole block instantly after every temperature change40 cycles in 40 minutes before optimization, and down to only 15 minutes when optimizedGenotype in 4 minutes with over 99 % accuracyPatented "Adaptive LED Control" minimizes optical artifacts and prevents premature detector saturationDual LED excitation (452 nm to 486 nm and 542 nm to 582 nm)4 emission filters (505 nm to 545 nm, 562 nm to 596 nm, 604 nm to 644 nm, 665 nm to 705 nm)Data is always collected in all four filters for all wellsDistinguishes 5000 and 10000 template copies with 99 percent confidenceAdditional features:48-well blockMIQE compliant400 analyte specific qPCR reagent kits availableNo calibration requiredCalibrated dyes: SYBR®, FAMTM, HEXTM, ROXTM, Cy®5.Additional dyes within the filter wavelength range are supported with no additional calibration requiredUnlimited software licence2 years warrantyScope of supply: Real-time PCR-system QPCR-500, EcoControl and EcoStudy software, USB stick, 50 plates, 50 plate seals, power and Ethernet cable

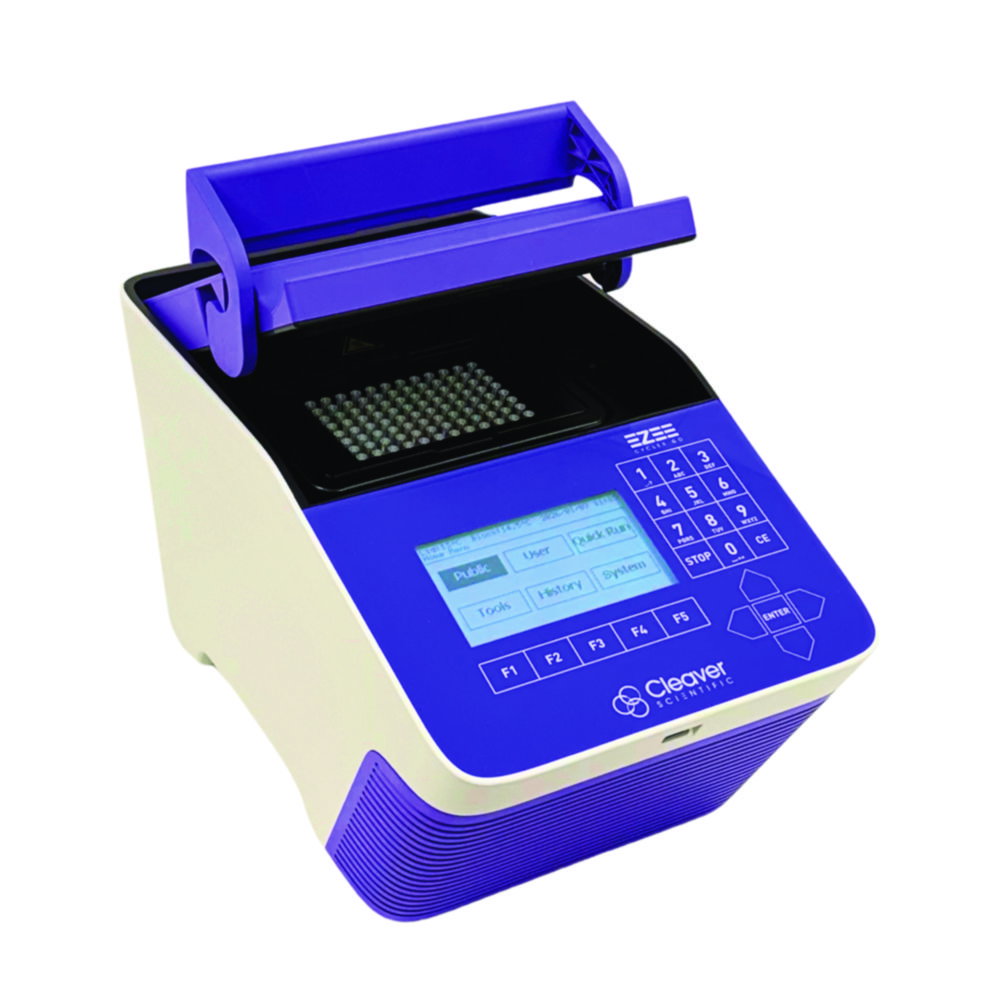

Thermal cycler EZEECYCLER GO
The thermal cycler offers flexible functions and is suitable for everyday PCR applications.Intuitive, graphical interface and responsive touch keypad simplify operationPrecise control of ramp rates down to 0.1 °C/secAdjustable lid temperatureEasy cleaning and disinfectionGradient optimisation: thermal gradient function enables rapid PCR optimisation for new experimental conditionsAuto restart function: built-in power failure recovery ensures experiment continuity and data integrity200 pre-installed programmes50 user folders (password-protected)Compatible with 96-well PCR plate and 0.2 ml PCR tubes/strips

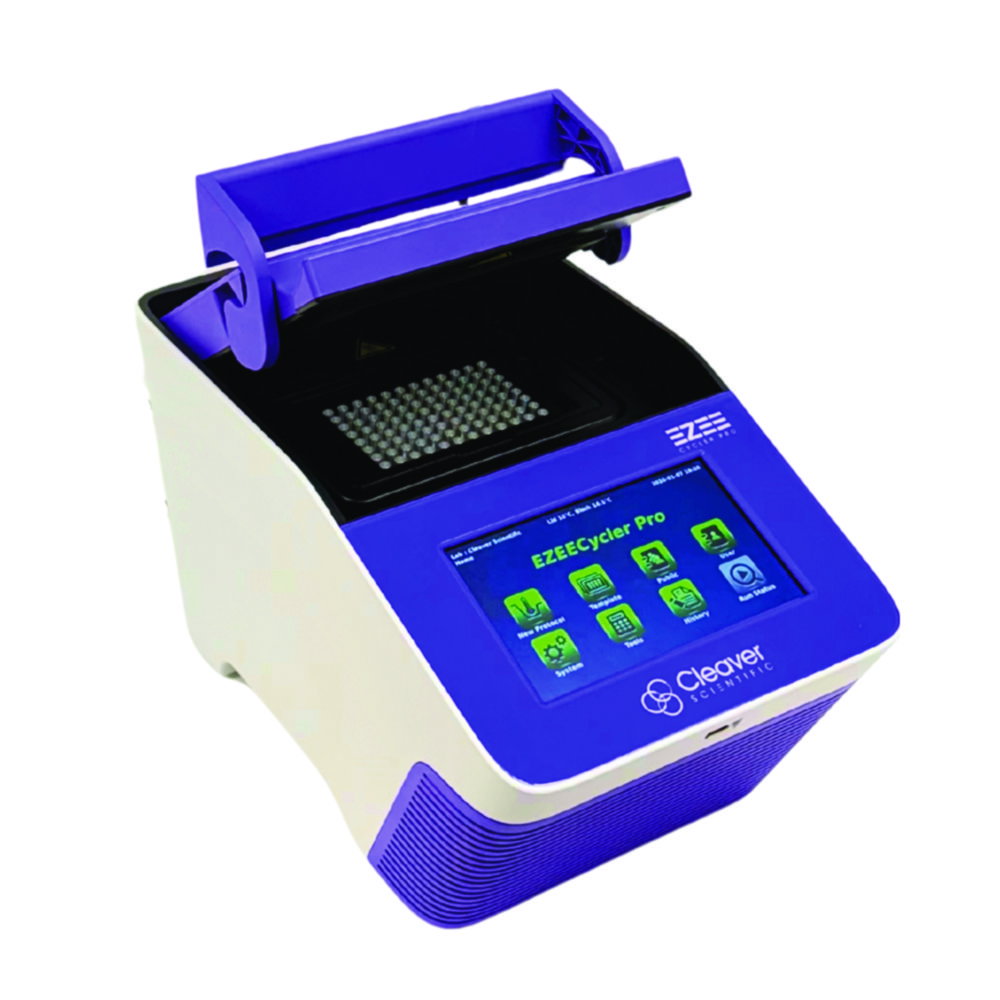

Thermal cycler EZEECYCLER PRO
The thermal cycler offers flexibility for precise PCR optimisation.Intuitive interface and 7" colour LCD touchscreenFlexible ramp rate control from 0.1 to 5.5 °C/secAdjustable lid temperatureGradient optimisation: enables precise optimisation of experimental conditions in a single PCR runAuto restart function: built-in power failure recovery ensures experiment continuity and data integrityUSB port4000 pre-installed programmes100 user folders (password-protected)Compatible with 96-well PCR plate and 0.2 ml PCR tubes/strips

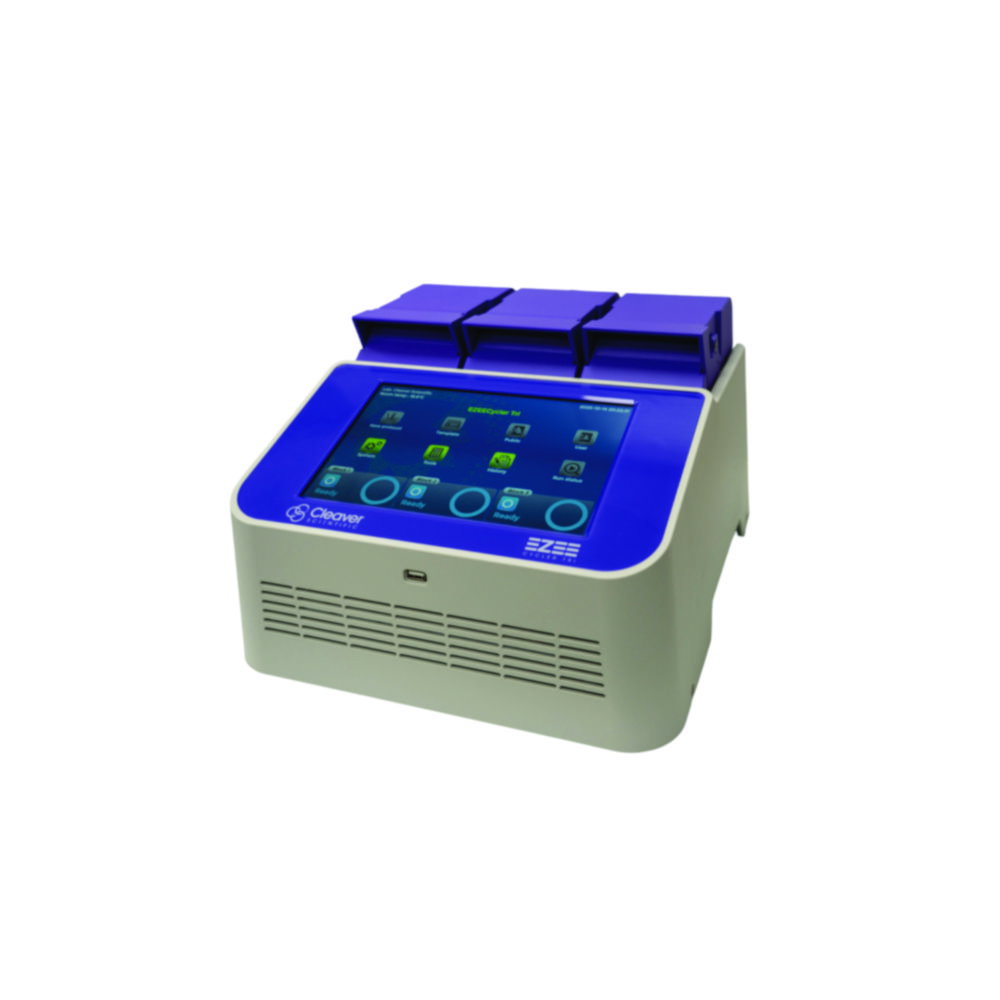

Thermal cycler EZEECYCLER TRI
This powerful high-throughput thermal cycler can run three independent programmes (3 x 48 samples) simultaneously. Intelligent gradient optimisation and advanced ramp rate control ensure perfectly tuned PCR conditions. Each block module can be calibrated individually.Intuitive interface and 10.1" colour LCD touchscreenFlexible ramp rate control from 0.1 to 5.0 °C/secAdjustable lid temperatureAuto restart function: built-in power failure recovery ensures experiment continuity and data integrityUSB port4000 pre-installed programmes100 user folders (password-protected)Compatible with 48-well PCR plate and 0.1 ml or 0.2 ml PCR tubes/strips

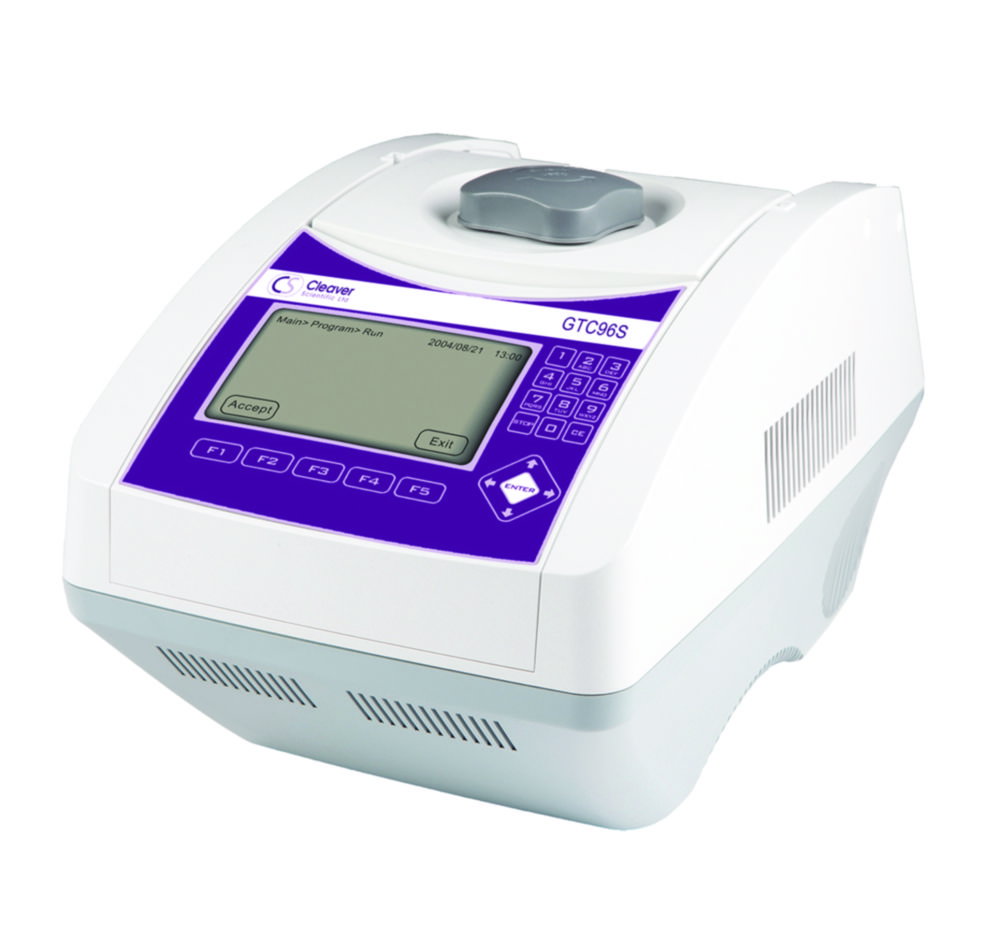

Thermal cycler GTC96S
Thermal cycler with advanced features and exceptional performance. The protocol optimisation process utilises ‘Flexible Temperature’ technology to divide the 96-well plate into six separate temperature zones (4 x 4 wells each), which are easily distinguished by blue and black squares. A separate temperature can be selected for each zone (maximum temperature difference between zones 24 °C).Precise temperature control minimises temperature fluctuations between the individual stages within a PCR cycleLid with ‘slide-in slide-out’ designAdjustable lid temperatureMemory for 200 programmesCompatible with 96-well PCR plate and 0.2 ml PCR tubes/strips
Thermal cycler GTC96S Complete package
Thermal cycler with advanced features and exceptional performance. The protocol optimisation process utilises ‘Flexible Temperature’ technology to divide the 96-well plate into six separate temperature zones (4 x 4 wells each), which are easily distinguished by blue and black squares. A separate temperature can be selected for each zone (maximum temperature difference between zones 24 °C).Precise temperature control minimises temperature fluctuations between the individual stages within a PCR cycleLid with ‘slide-in slide-out’ designAdjustable lid temperatureMemory for 200 programmesCompatible with 96-well PCR plate and 0.2 ml PCR tubes/stripsScope of supply: Thermocycler, UV sterilization chamber, single-channel microlitre pipette omniPETTE 0.2 to 2 µl, single-channel microlitre pipette omniPETTE 2 to 20 µl, single-channel microlitre pipette omniPETTE 20 to 200 µl, single-channel microlitre pipette omniPETTE 100 to 1000 µl, 8-channel microlitre pipette omniPETTE 20 to 200 µl, electrophoresis unit multiSUB Midi-96, power supply nanoPAC 500
Thermal cycler GTC96S PCR Kit
Thermal cycler with advanced features and exceptional performance. The protocol optimisation process utilises ‘Flexible Temperature’ technology to divide the 96-well plate into six separate temperature zones (4 x 4 wells each), which are easily distinguished by blue and black squares. A separate temperature can be selected for each zone (maximum temperature difference between zones 24 °C).Precise temperature control minimises temperature fluctuations between the individual stages within a PCR cycleLid with ‘slide-in slide-out’ designAdjustable lid temperatureMemory for 200 programmesCompatible with 96-well PCR plate and 0.2 ml PCR tubes/stripsScope of supply: Thermocycler, electrophoresis unit multiSUB Midi-96, power supply nanoPAC 500

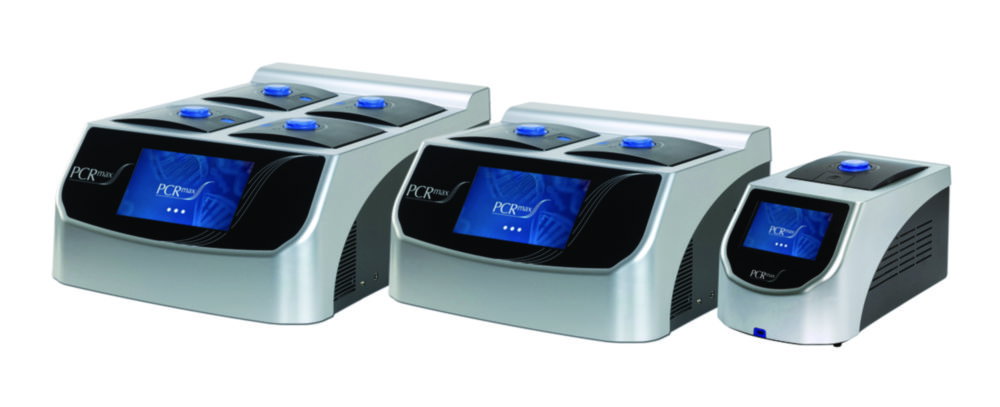

Thermocycler Alpha Cycler
The Alpha Cycler family form PCRmax provides a range of features which are specifically designed to meet the needs of modern researchers when amplifying DNA. Given the flexibility in format and block options (96 or 384 well) scaleability is core in the Alpha Cycler range. Alpha Cycler software has features such as recently used programmes, allowing users to quickly access their most commonly used protocols without the need to navigate through folders to find it, individual user logins, with protected protocols. The Alpha Cycler systems also contain a novel programme wizard which allows users to define a protocol based specifically on their primer sequence and template source. Primer sequences or TM's are entered, amplicon length and source defined and the on board algorithm generates an optimised protocol for your assay. The Alpha Cyclers range of block options allow for use of the most commonly used consumables from different manufacturers and includes 96 well plates (0.2 ml), tubes (0.2 ml), strip tubes (0.2 ml) and 384 well plates.Single, dual or four block options available with either 96 or 384 well gradient blocksMulti-block units have totally independent blocks for maximum flexibilityHD Android driven touchscreen interface for simplified programmingGenerate and send instrument reports to diagnose the health of your system and identify any issues before they impact users workLock programs with user defined passwordAlpha Track mobile app allows remote monitoring of run progressAlpha Track App (free of charge): Track the progress of runs and health of your system remotely via the mobile appThe Alpha Track Application is used in conjunction with your Alpha Cycler and allows users to:Remotely track the progress of runsSend a health report for diagnosis by the technical support teamBe notified of any issues and prevent system failures before occurring

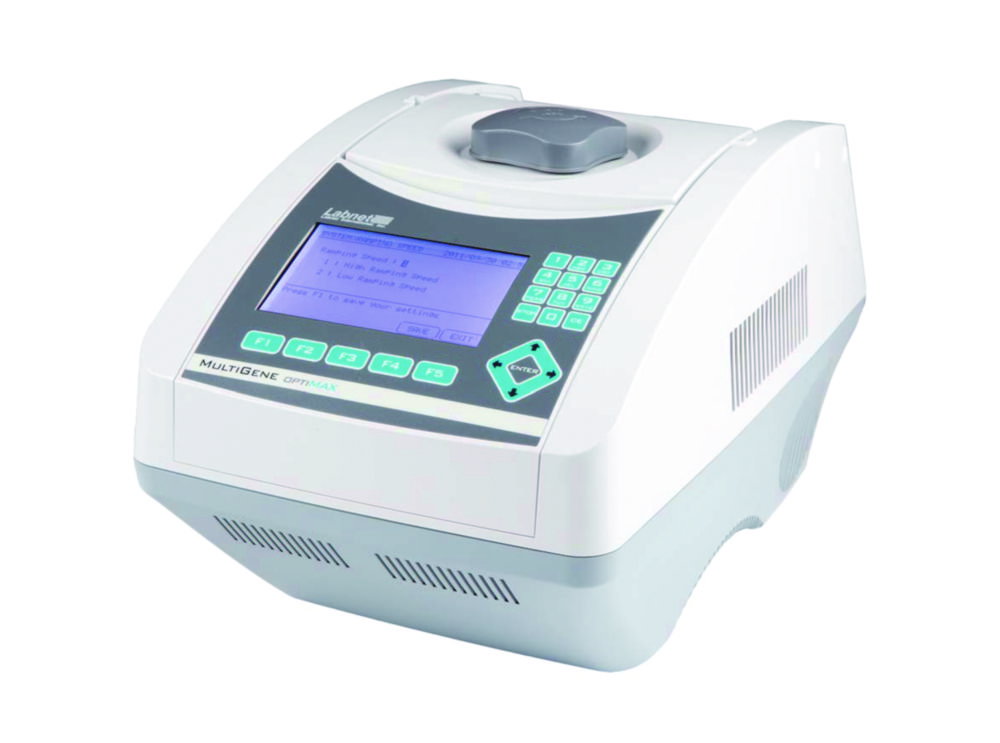

Thermocycler MultiGene™ OptiMax
This simple to program PCR thermocycler unit is compact in design, programming is intuitive with the large display and multiple pre-programmed templates supplied with the unit. The OptiMax comes with standard built in 2-step, temperature optimization, touchdown and time increment protocols that are easy to adjust to meet cycling needs. Select lid temperature or turn it off.Flexible Programming with FlexTemp™ technologyFast ramp rates 5 °C heating / 3.5 °C coolingNo condensation after overnight cooling at 4 °CIndividual temperature setting for each blockPassword protected programsSimple user interfaceWith USB and RS232 interface
