Temperature data logger

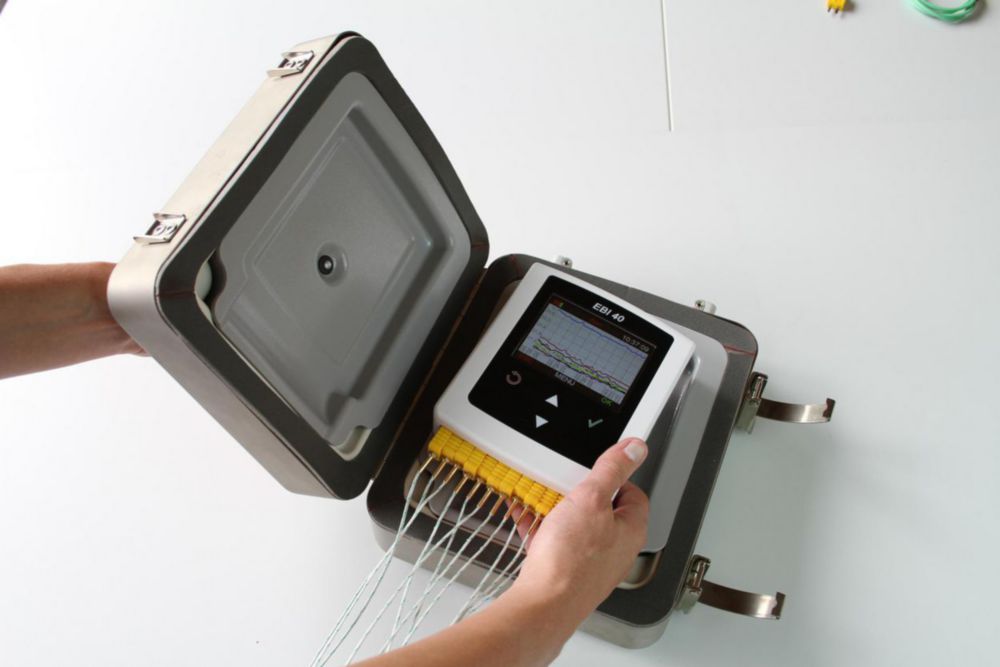

12-channel temperature data logger EBI 40-TC-02
Multi-channel data logger with graphical display for recording temperature data during process monitoring and validation. Current measurement values and the measurement curve can be viewed on the multi-colour TFT display. Up to 20000 measurement values can be stored per channel. The stored measurement values can be transferred to a PC via the USB interface.Automatic display switch-offDetermination of temperature profilesPower supply via battery or USBSuitable for type K and T thermocouple probes (with SMP connector)

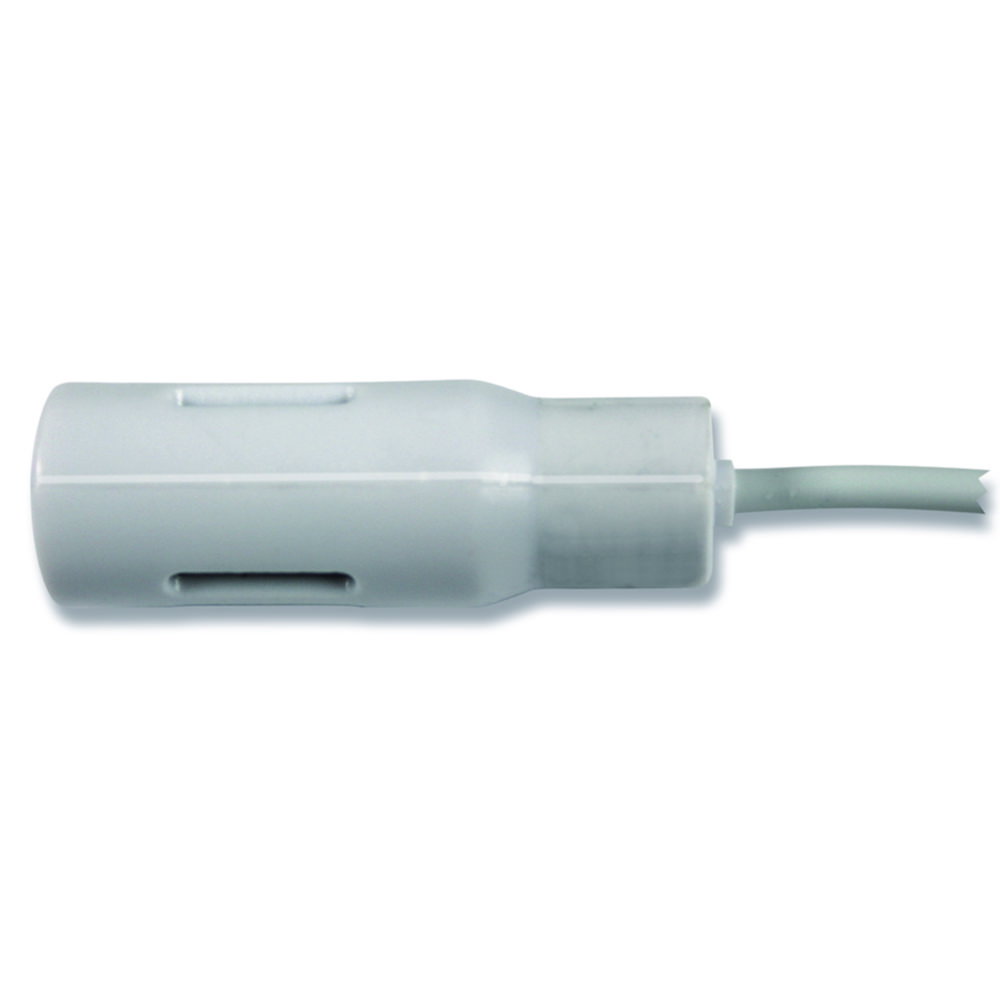

Combination probe temperature/humidity for PDF data logger LOG40
Combination probe for measuring temperature and relative humidity.
Combination probe temperature/humidity/pressure for PDF data logger LOG40
Combination probe for measuring temperature, relative humidity, and barometric pressure.

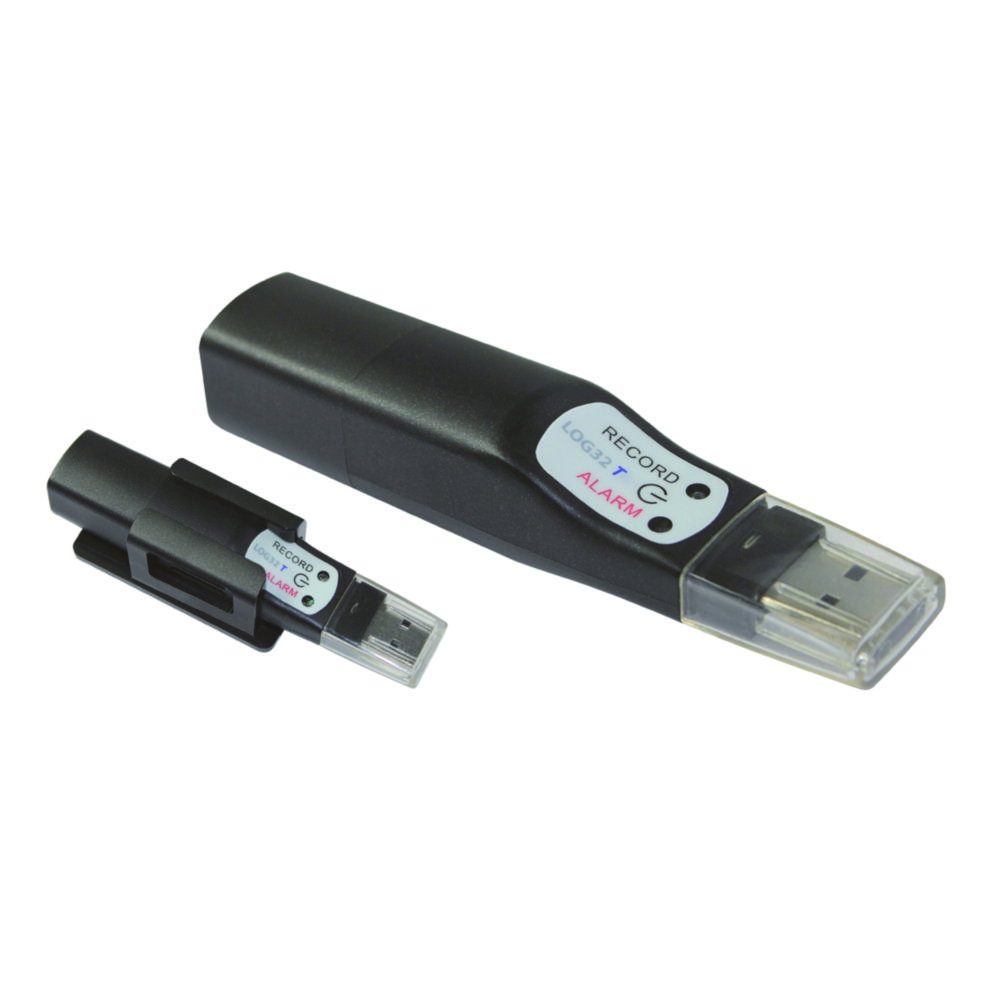

Data Logger LOG32T
Data logger with integrated USB interface for temperature recording. Ideal for monitoring storage and transport conditions in accordance with HACCP (EN 12830).Incl. calibration certificateMemory for 60 000 readingsUsable without software (pre-programmed 15-minute reading interval)Freely adjustable memory interval from 30 seconds to 24 hours (via free Log Connect software)Automatic output as PDF file (logger is recognized like USB memory stick)Battery lifetime > 3 years (with recording interval >15 minutes)Status and alarm LEDs with acoustic signal (buzzer)Wall mount includedEN12830 compliantIP65 waterproof

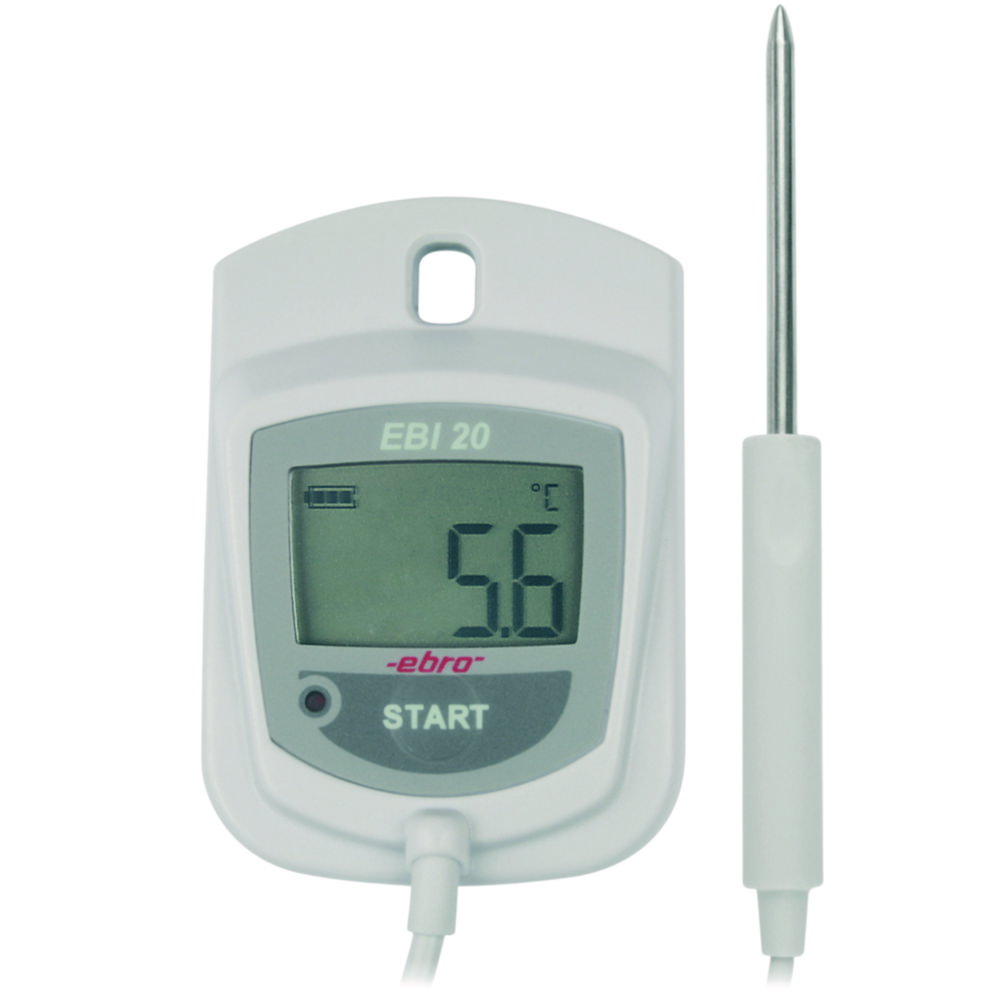

Data Logger with external temperature sensor EBI 20-TE1
Applications:TransportStorage monitoringRefrigeration areas and cold roomsFeatures:WaterproofVisual alarmMax/min values on displayStores 40000 readings, can be read off at any timeReplaceable batteryMeasuring mode: immediate loop measurement, measurement from starting point, start immediately until memory full, start/stop measuring, start when button pressedAccuracy: ±0.5 °C (-20 to 40 °C); ±0.8 °C for remaining measuring rangeScope of supply: Temperature Logger with external sensor

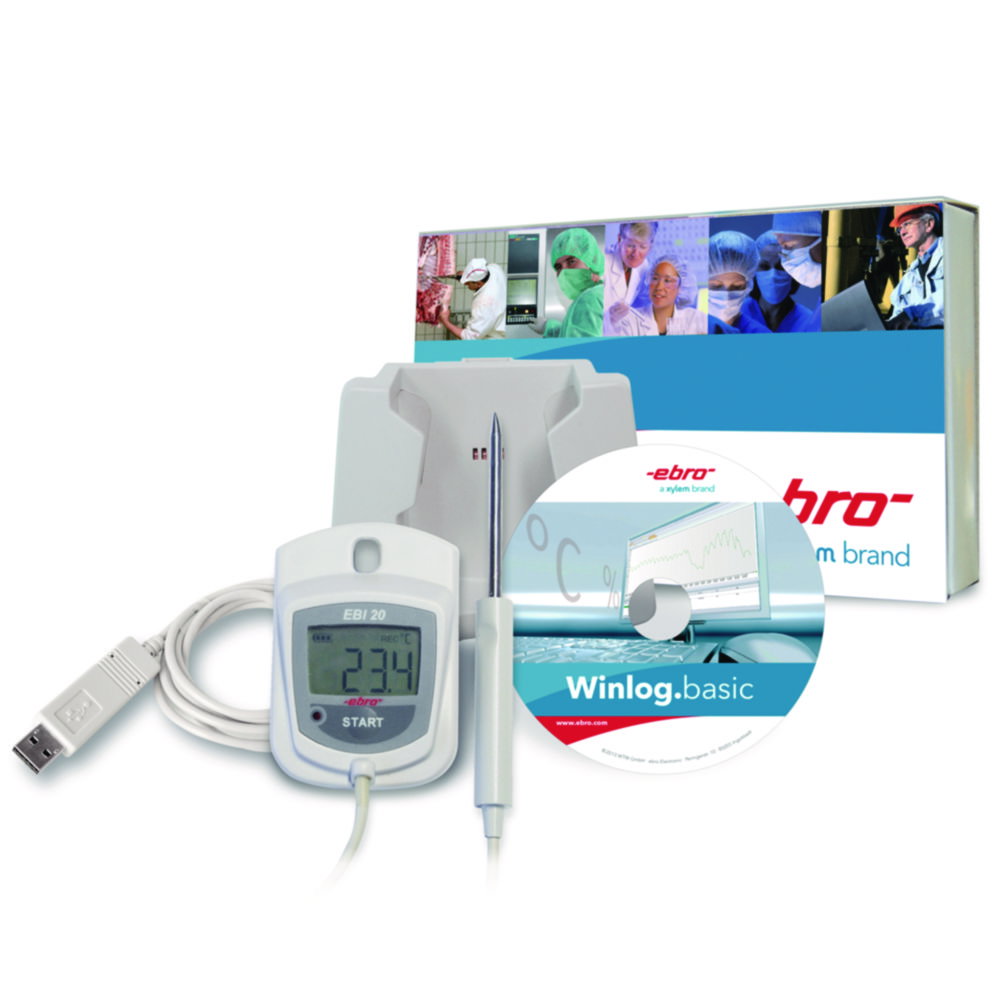

Data Logger with external temperature sensor EBI 20-TE1-Set
Applications:TransportStorage monitoringRefrigeration areas and cold roomsFeatures:WaterproofVisual alarmMax/min values on displayStores 40000 readings, can be read off at any timeReplaceable batteryMeasuring mode: immediate loop measurement, measurement from starting point, start immediately until memory full, start/stop measuring, start when button pressedAccuracy: ±0.5 °C (-20 to 40 °C); ±0.8 °C for remaining measuring rangeScope of supply: Temperature Logger with external sensor, evaluation software, Interface

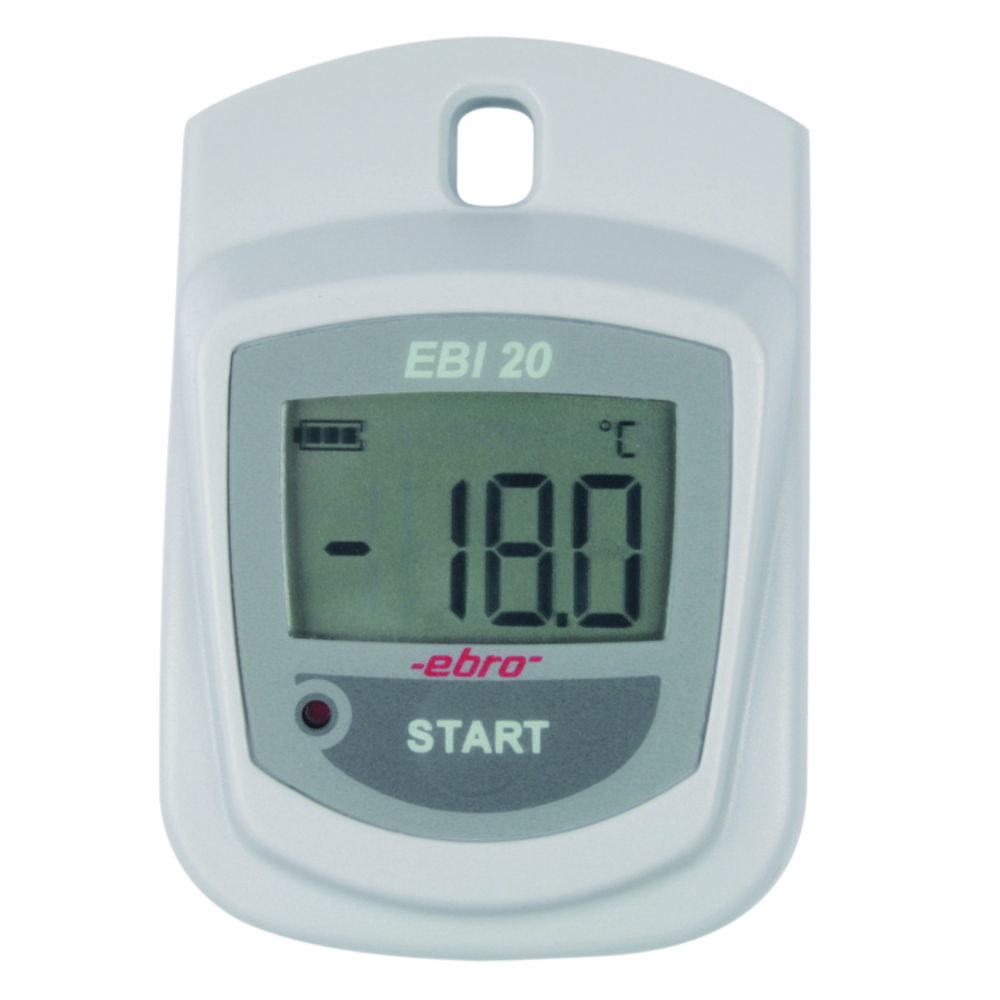

Data Logger with internal temperature sensor EBI 20-T1
Applications:TransportStorage monitoringRefrigeration areas and cold roomsFeatures:WaterproofVisual alarmMax/min values on displayStores 40000 readings, can be read off at any timeReplaceable batteryMeasuring mode: immediate loop measurement, measurement from starting point, start immediately until memory full, start/stop measuring, start when button pressedAccuracy: ±0.5 °C (-20 to 40 °C); ±0.8 °C for remaining measuring rangeScope of supply: Temperature logger

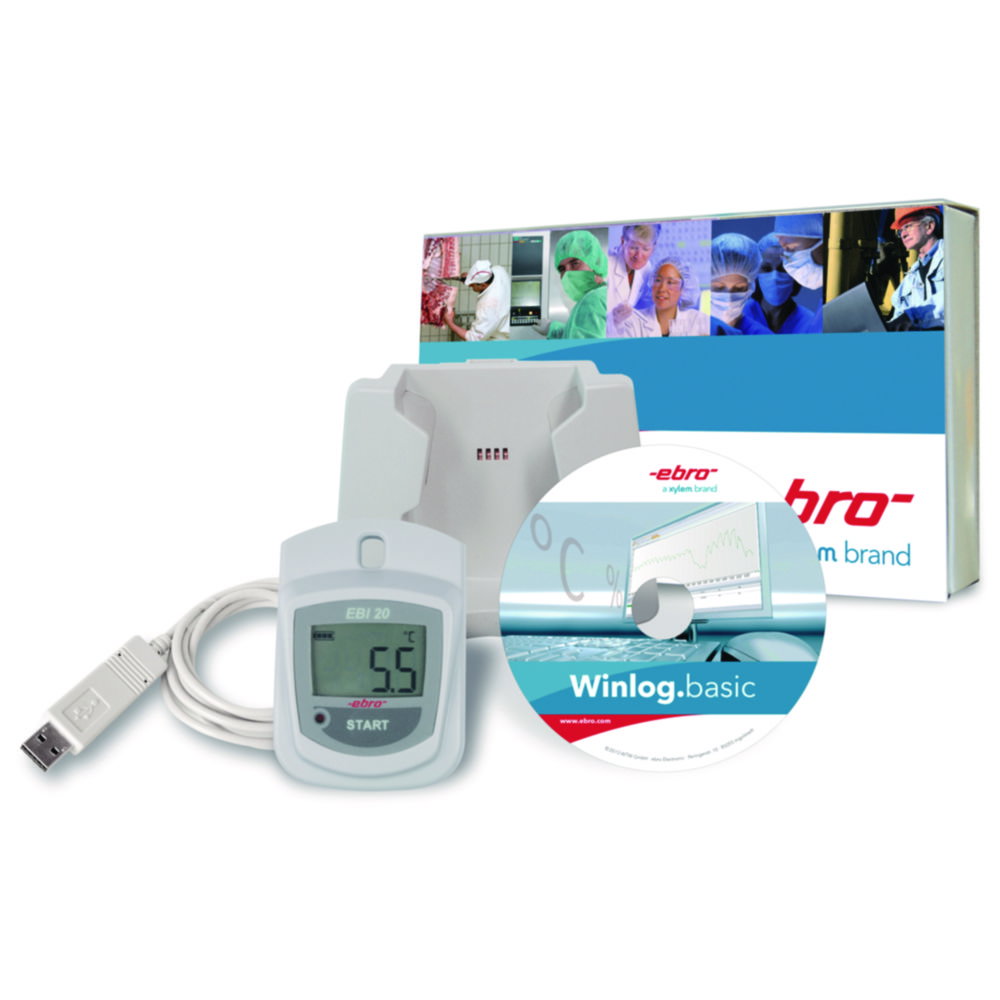

Data Logger with internal temperature sensor EBI 20-T1-Set
Applications:TransportStorage monitoringRefrigeration areas and cold roomsFeatures:WaterproofVisual alarmMax/min values on displayStores 40000 readings, can be read off at any timeReplaceable batteryMeasuring mode: immediate loop measurement, measurement from starting point, start immediately until memory full, start/stop measuring, start when button pressedAccuracy: ±0.5 °C (-20 to 40 °C); ±0.8 °C for remaining measuring rangeScope of supply: Temperature logger, evaluation software, interface

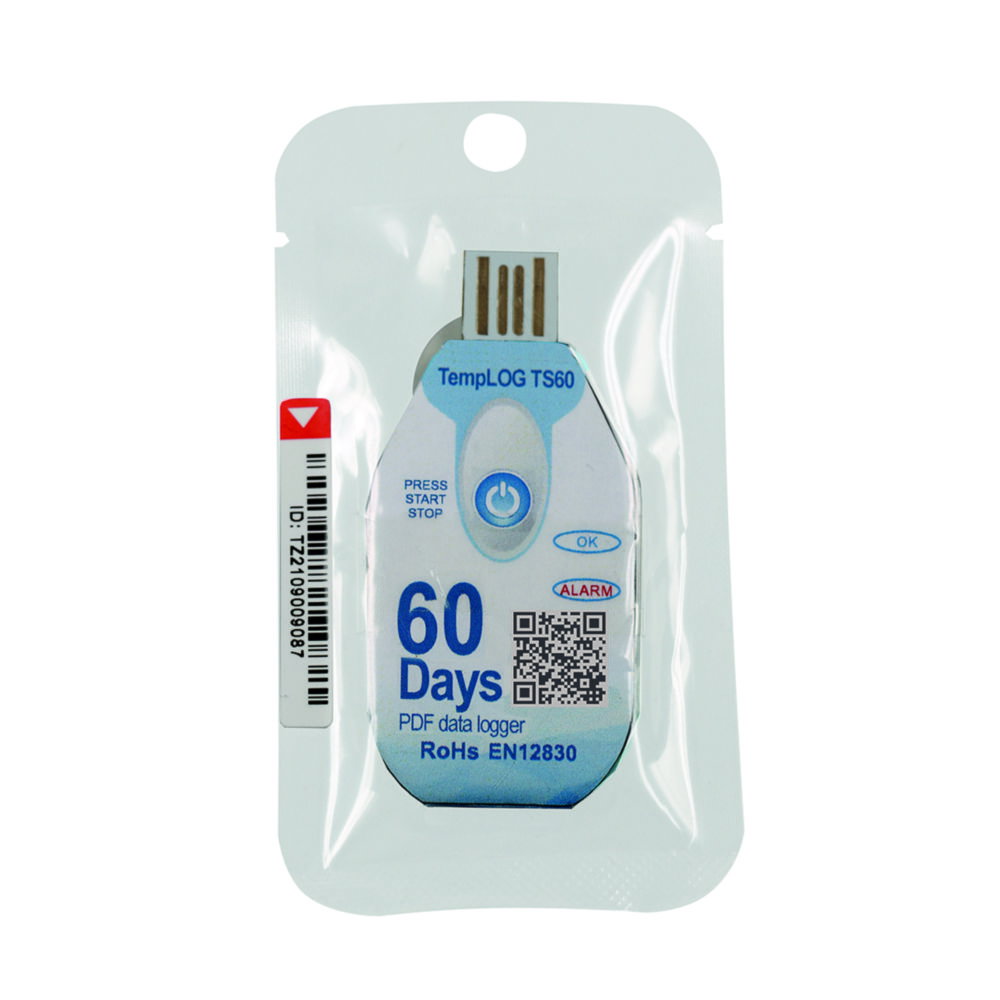

Disposable data logger TempLOG TS60/TS365
Ideal for low-cost temperature monitoring of transports. For evaluation, the data logger is connected to the USB interface and a PDF report is generated automatically. No hardware or software necessary.Auto generating PDF format data report10000 measurements every 10 minutes (TS60)68000 measurements every 10 minutes (TS365)Change of configuration (alarm, interval ...) on requestIntegrated USB connectorStart by buttonLED Alarm displaySerial number stickerInclusive certificateFood-safe according to HACCPCompliant to EN12830 S,T,C,D,1 and GDP

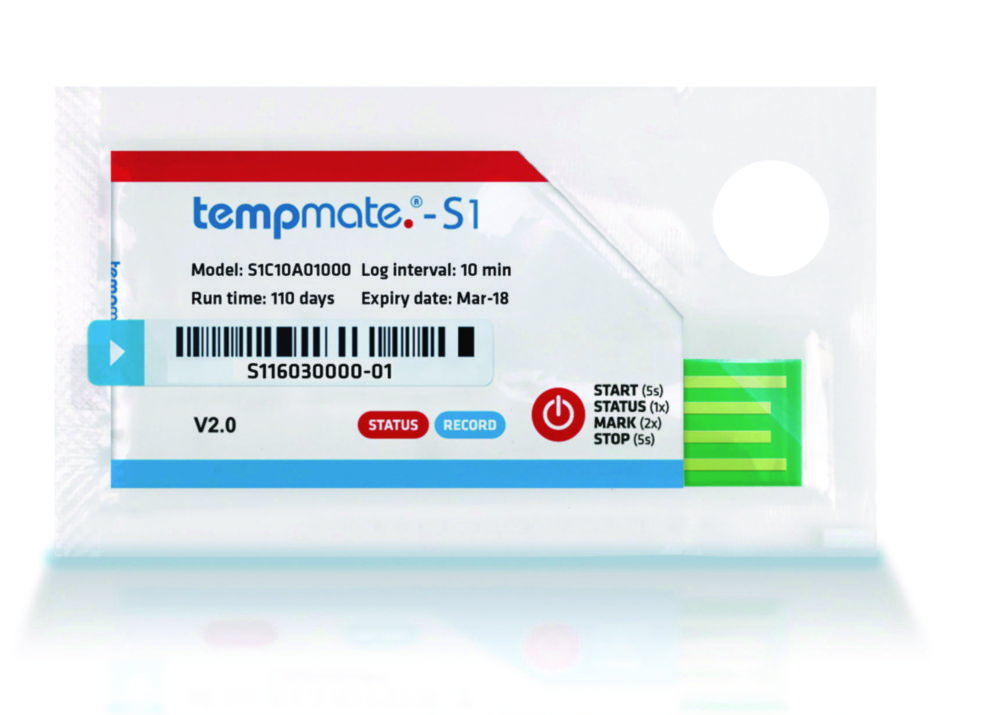

Disposable data logger TempMate-S1
The single-use data logger TempMate-S1 with its built-in USB connector, is the ideal solution for low-cost temperature monitoring of transports. TempMate-PDF loggers directly useable with pre-programmed configuration or reprogrammable with Tempbase Software according to each customer's specifications. To download the recorded data, simply connect TempMate-S1 directly to the USB port. A PDF and CSV report will automatically be generated, covering temperature graph, detailed data list and statistical information. No hardware (cable, interface) or software is required.Auto generating PDF and CSV format data report110 days run time 16000 measurements, 10 minute intervalReprogrammable with Tempbase Software free of chargeUp to 5 alarm points configurableIntegrated USB connectorLED Alarm indicatorsSerial number stickerInclusive certificateFood proof according to HACCP

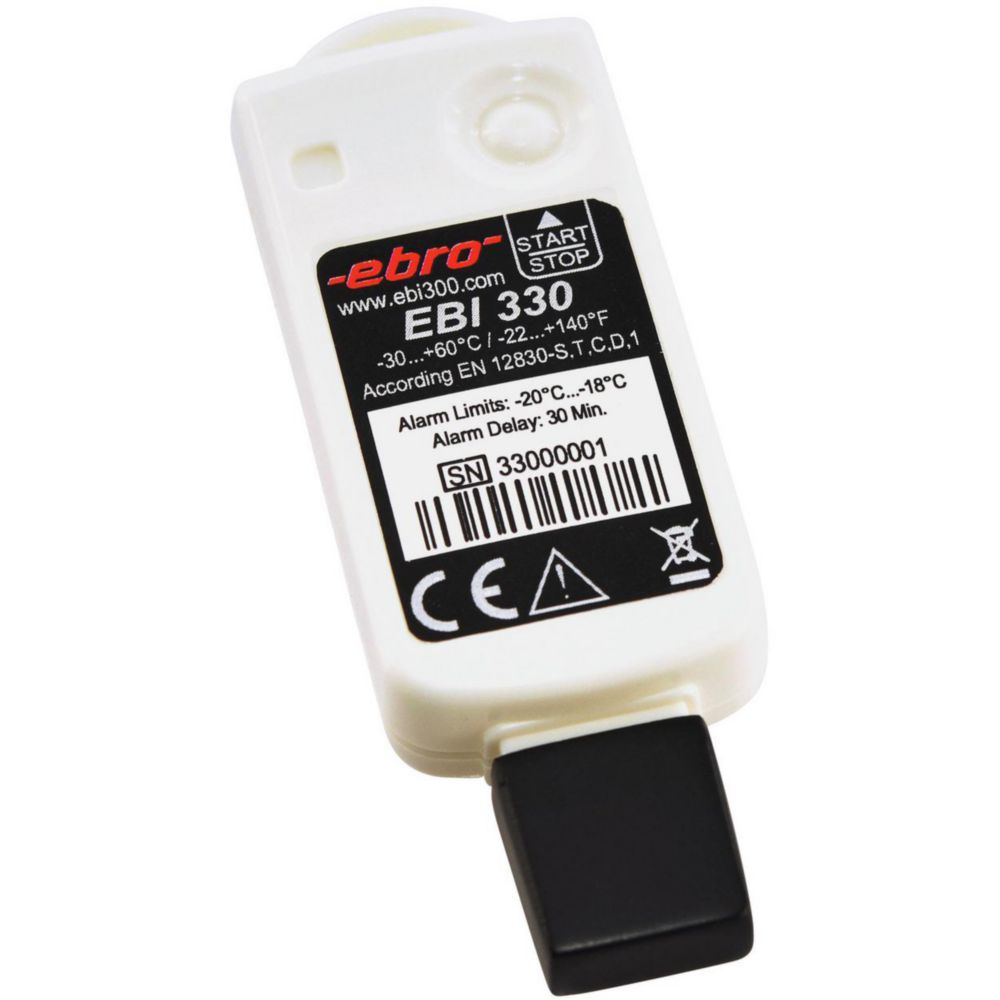

Disposable USB data logger EBI 330-T30
Disposable USB data logger for continuous temperature monitoring during the transport of temperature-sensitive goods. The logger can be easily connected to a PC via the USB interface. Upon arrival at the destination, the EBI 330-T30 automatically generates a PDF report containing all key data on the temperature history, without the need for additional software.It is not possible to manipulate the measured temperature values, which enhances data securityAlarm: lower and upper limit values adjustableAlarm status indicated by a flashing LEDProgrammable via the free online configurator at www.ebi300.comMeasurement modes: Start with key press, Start immediately until end of memory

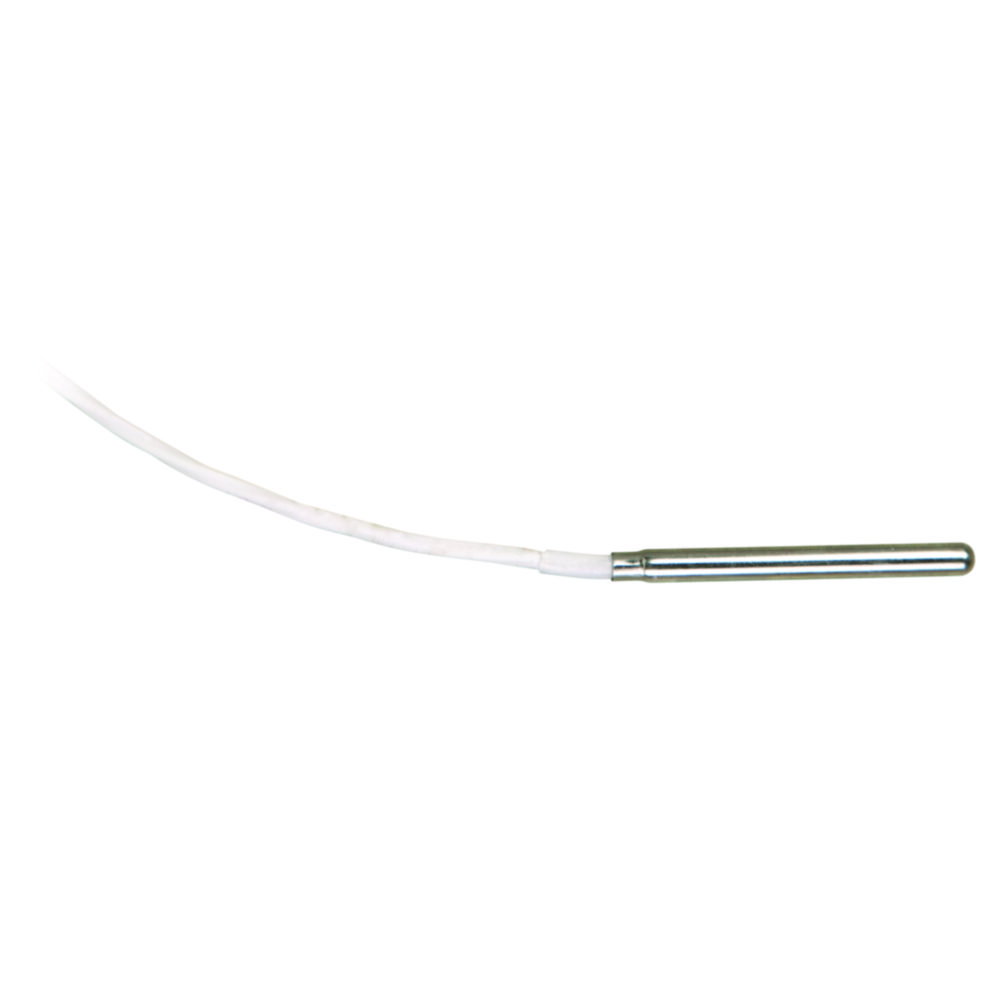

Exchangeable Pt 1000 probes TPX 25 for wireless temperature data logger EBI 25-TX
External temperature probe for data logger LOG200E/LOG220E
Pt 100 temperature probe with 1/3 DIN sensor and cable.
Food probes for testo measuring devices, TC plug type T
Temperature probes with TC plug type T.
Frozen goods probe for testo measuring devices, TC plug type T
Temperature probes with TC plug type T.

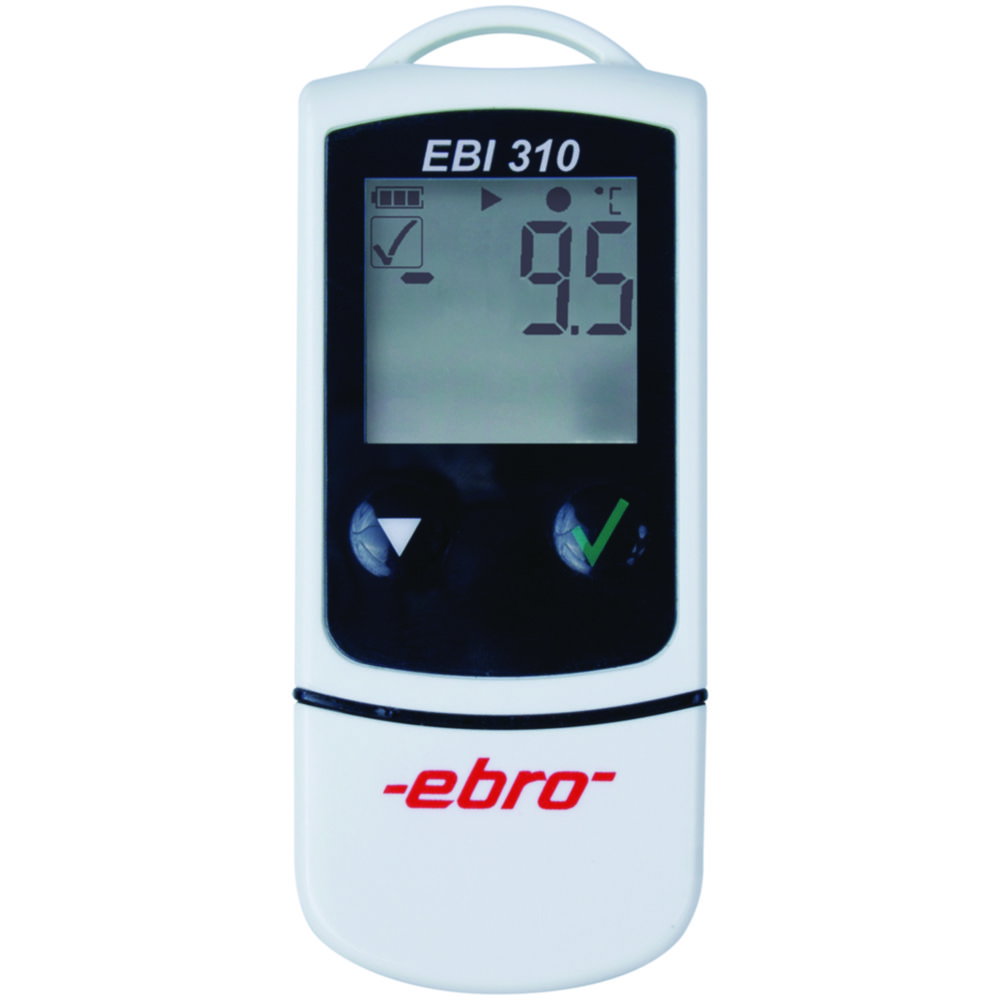

High precision PDF data logger EBI 310
PDF data logger with different temperature sensors. Compared to the EBI 300, the EBI 310 is characterized by shorter measuring intervals and higher storage capacity.Automatic PDF-report creation with temperature/time valuesTransport of drugs, inoculants, blood products and primary productsTransport of all temperature sensitive productsStorage of reference samples in refrigerators and deep-freezers"Traffic light principle" by limit exceededIQ/OQ procedures through standardized software and standard reporting process possibleGMP, pharmaceutical law compliant; EN 12830, ATP, VO (EG) 37/205 compliant, 21 CFR Part 11 conform (Winlog.basic)Programmable via the free online configurator at www.ebi300.comMeasuring modes: Start/Stop, endless loop, start with buttonAlarms: 5 valuesMemory capacity: 120000 measurementsData logger with internal temperature sensor.

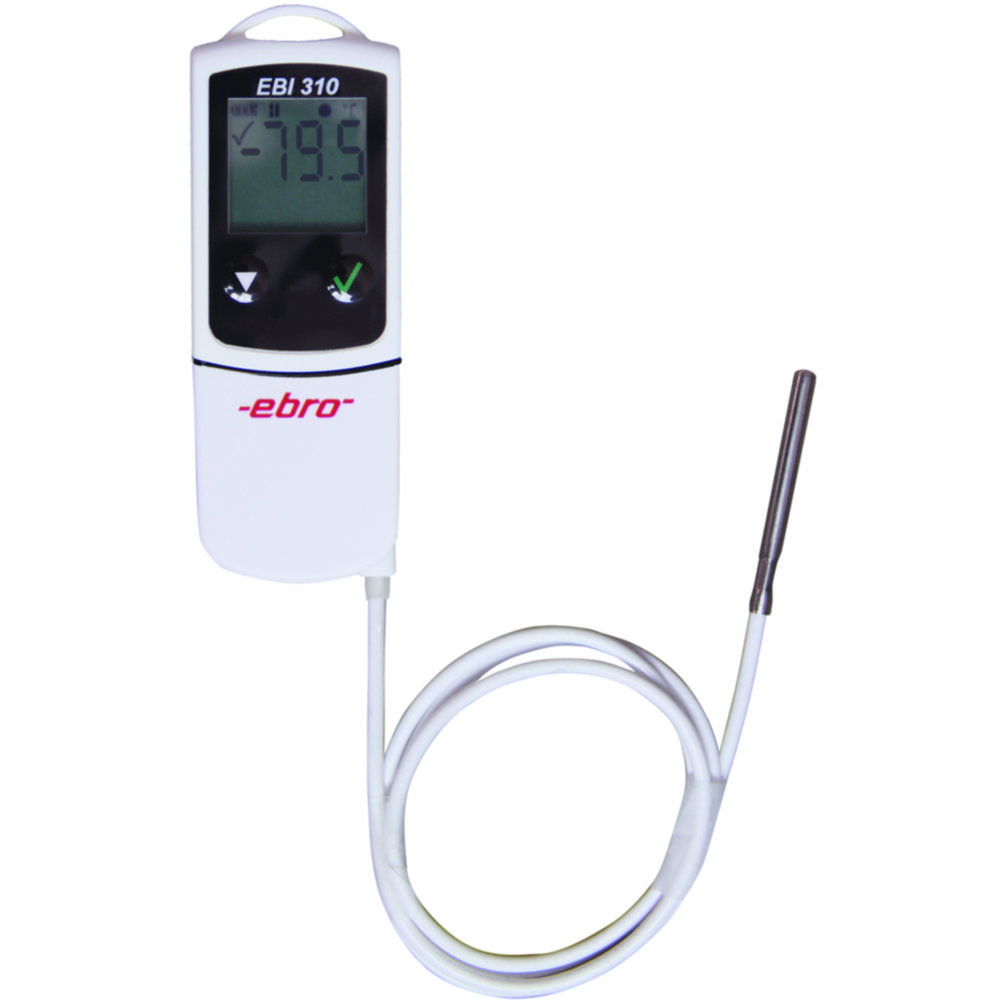

High precision PDF data logger EBI 310 TE, with external temperature sensor TPX 220
PDF data logger with different temperature sensors. Compared to the EBI 300, the EBI 310 is characterized by shorter measuring intervals and higher storage capacity.Automatic PDF-report creation with temperature/time valuesTransport of drugs, inoculants, blood products and primary productsTransport of all temperature sensitive productsStorage of reference samples in refrigerators and deep-freezers"Traffic light principle" by limit exceededIQ/OQ procedures through standardized software and standard reporting process possibleGMP, pharmaceutical law compliant; EN 12830, ATP, VO (EG) 37/205 compliant, 21 CFR Part 11 conform (Winlog.basic)Programmable via the free online configurator at www.ebi300.comMeasuring modes: Start/Stop, endless loop, start with buttonAlarms: 5 valuesMemory capacity: 120000 measurementsData logger with external precision temperature sensor, internal temperature sensor can be used additionally. Measurements in high and low temperature range.

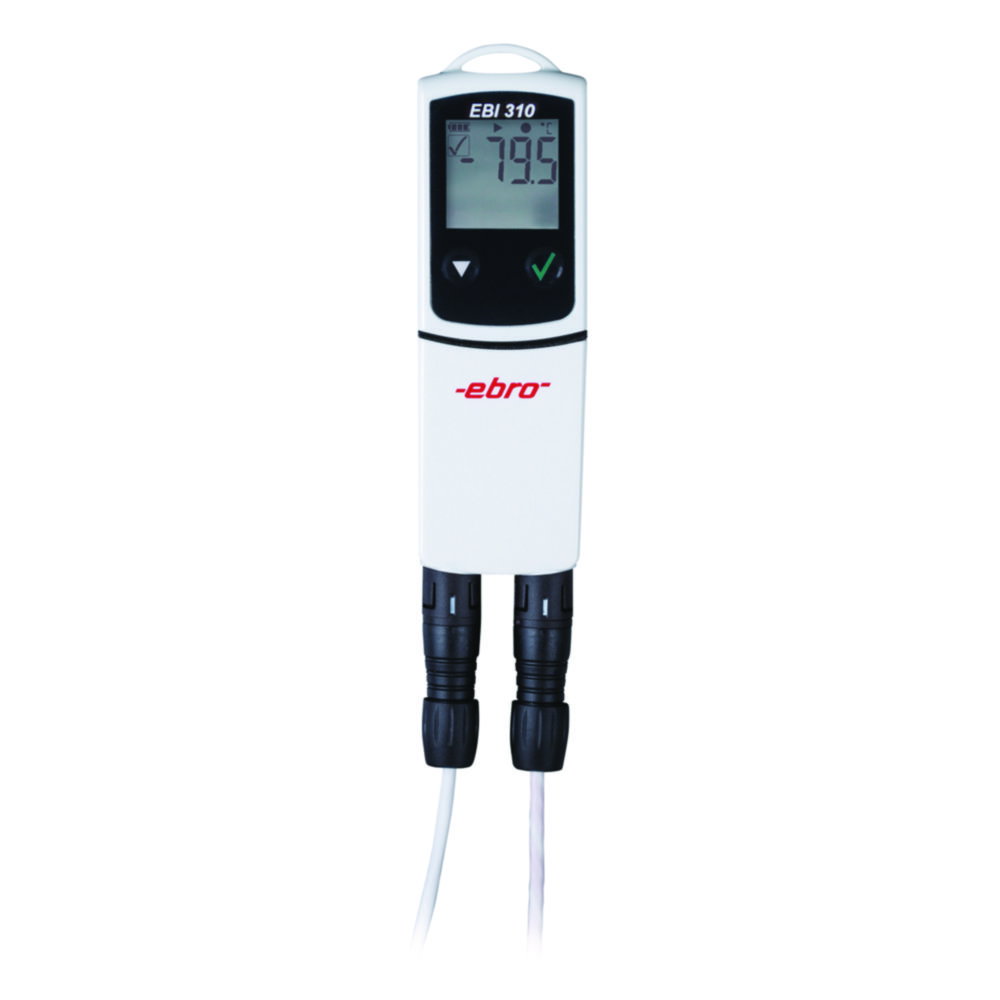

High precision PDF data logger EBI 310 TX, with temperature dual adapter TPX 310
PDF data logger with different temperature sensors. Compared to the EBI 300, the EBI 310 is characterized by shorter measuring intervals and higher storage capacity.Automatic PDF-report creation with temperature/time valuesTransport of drugs, inoculants, blood products and primary productsTransport of all temperature sensitive productsStorage of reference samples in refrigerators and deep-freezers"Traffic light principle" by limit exceededIQ/OQ procedures through standardized software and standard reporting process possibleGMP, pharmaceutical law compliant; EN 12830, ATP, VO (EG) 37/205 compliant, 21 CFR Part 11 conform (Winlog.basic)Programmable via the free online configurator at www.ebi300.comMeasuring modes: Start/Stop, endless loop, start with buttonAlarms: 5 valuesMemory capacity: 120000 measurementsData logger with temperature dual adapter for two exchangeable temperature sensors (not included in the scope of supply), internal temperature sensor can be used additionally.

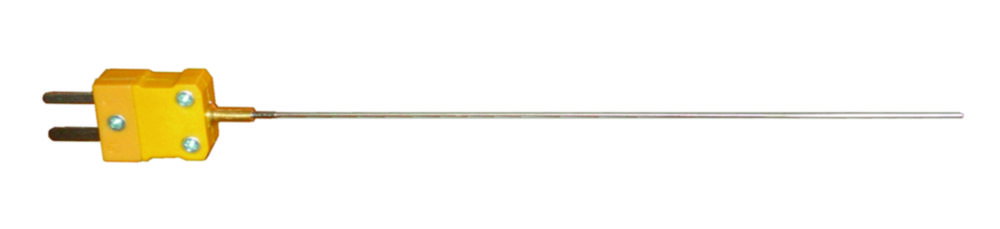

Immersion probe, thermocouple Type K
Immersion probe for measuring in liquid, gaseous, and powdery media. Flexible, without handle and sensor cable. Miniature connector. Accuracy class 1. According to EN 60584-1.
