Flat ground flange reaction vessels
2-way/3-way stopcocks, PTFE for reactor lids
With NPT 1/2" and GL18 screw thread. Grip made of PP. The media is only exposed to PTFE. Universal chemical resistance. Temperature resistant from 0 to 110 °C.

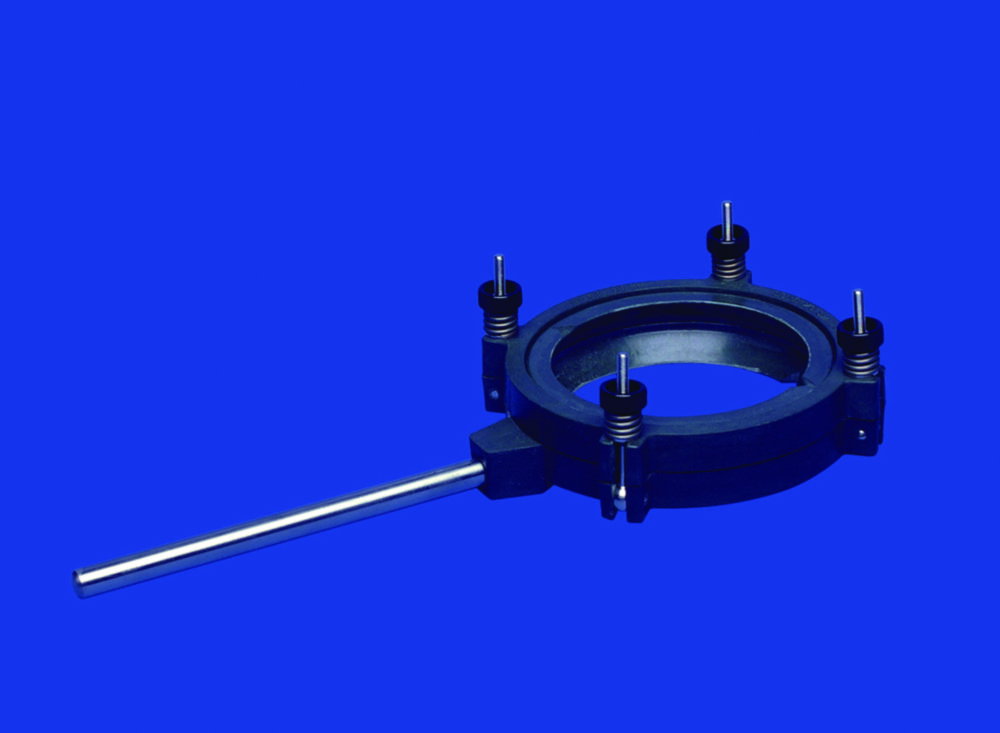

Clamps with stand rod
For fixing lids onto reaction vessels and mounting on a stand,Material: polyester-glass compound (clamp), steel (rod)

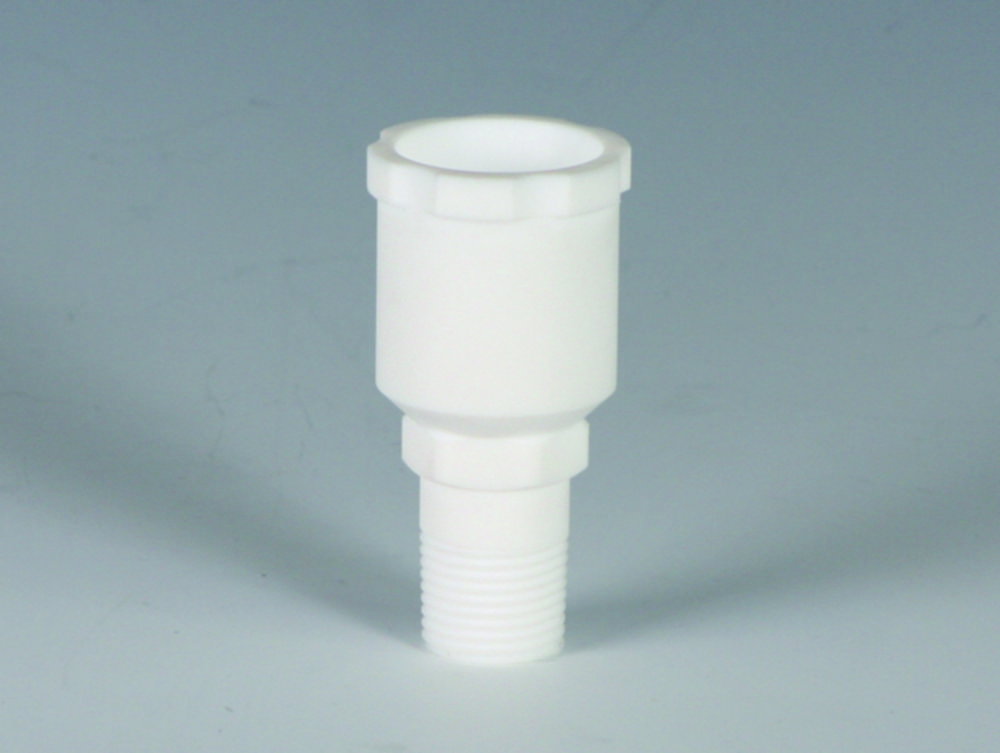

Connectors with ground joint, PTFE for Reactor lids
With NPT screw thread. Universal chemical resistance. With hexagonal gripping surface in standard wrench size. Temperature resistant from -200 to 250 °C.

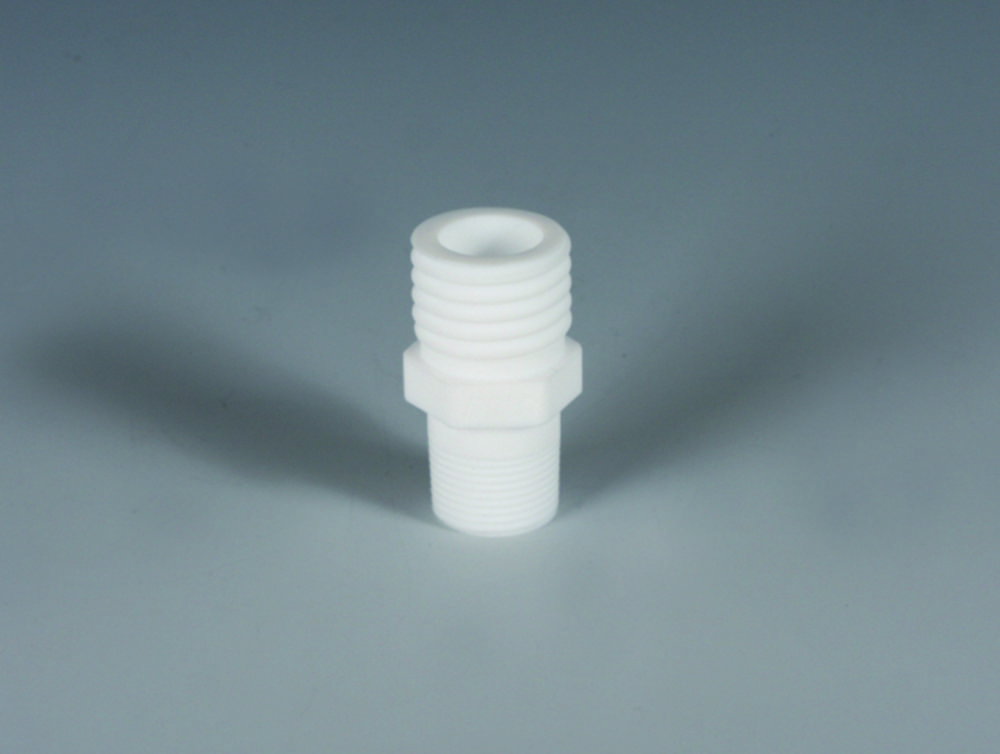

Fittings with connecting thread, PTFE for Reactor lids
With NPT screw thread. Universal chemical resistance. With hexagonal gripping surface in standard wrench size. Temperature resistant from -200 to 250 °C.

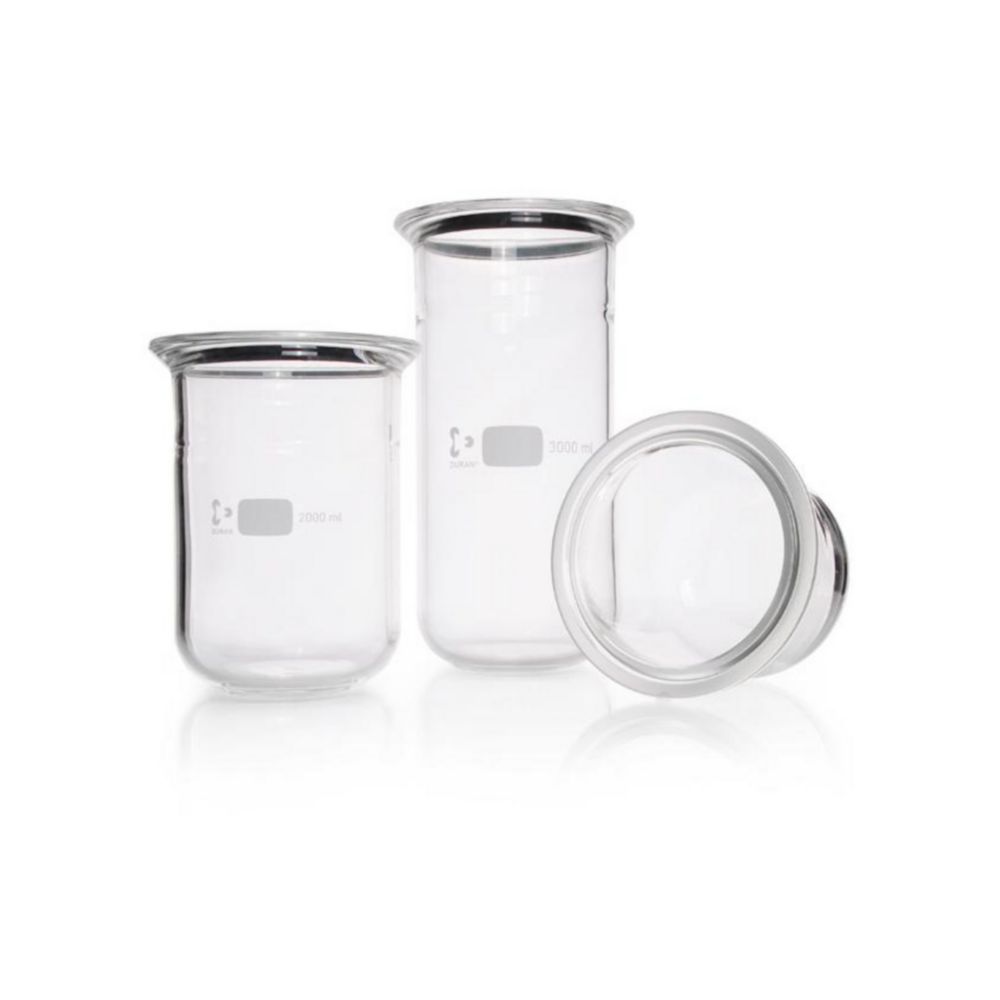

Flat flange beakers, DURAN®
Flanged neck with groove for vacuum use. Maximum 0.5bar working pressure at 250°C. Capacities indicated are brim-full volumes. We recommend that these beakers are heated in water or oil baths. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.

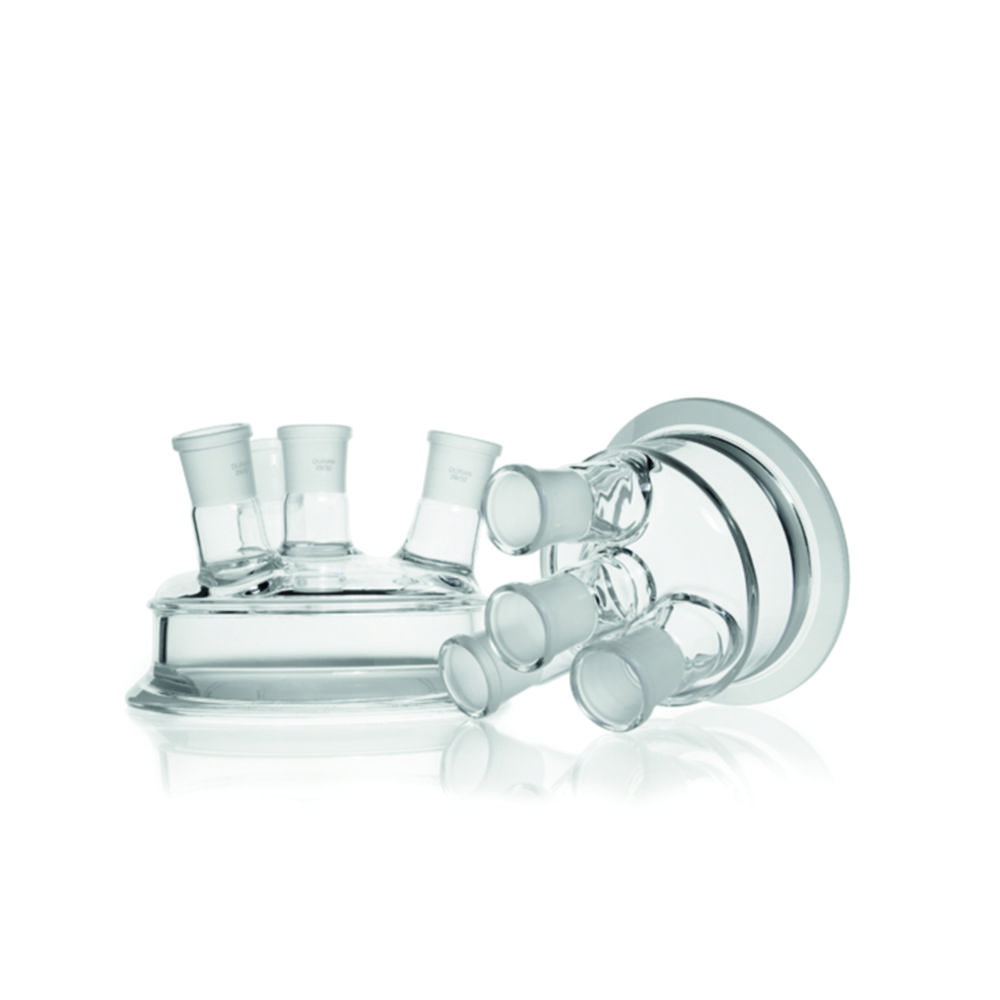

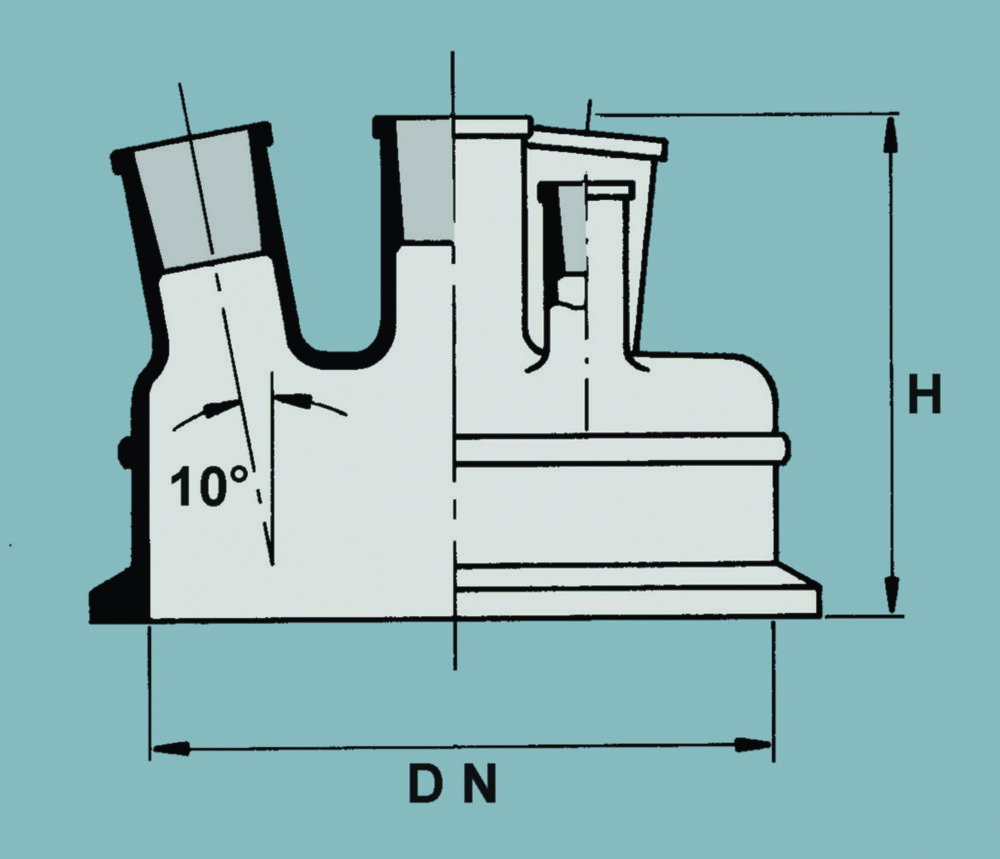

Flat ground flange lids, DURAN®
With four ground joint necks as outlined below. 1 bar max. operating pressure at 250 °C. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.

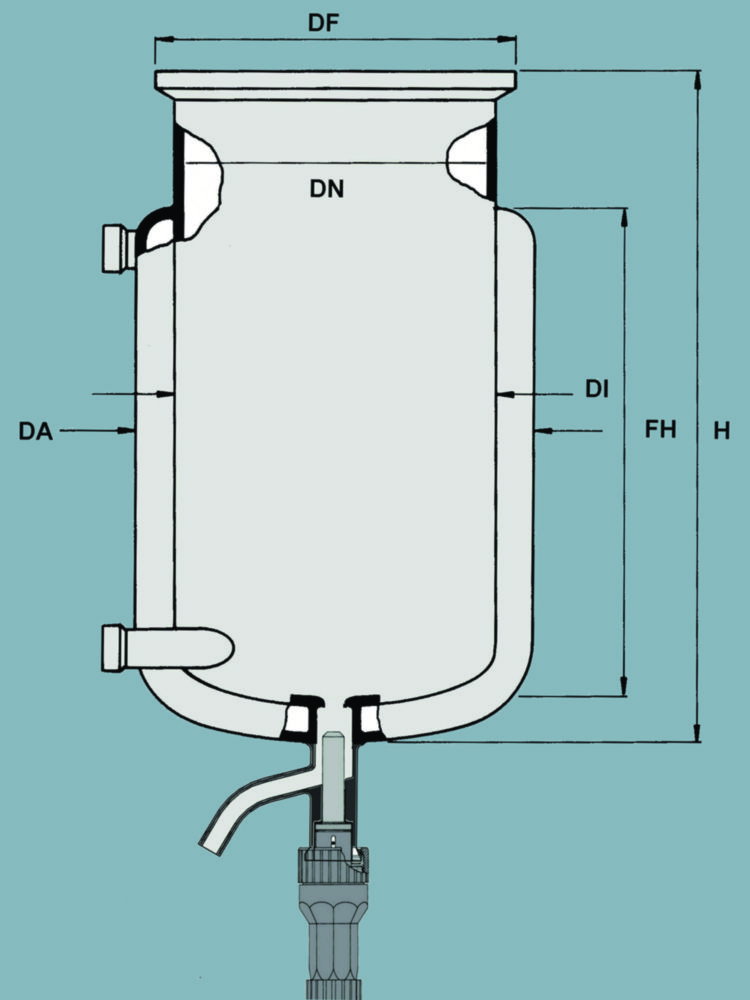

Flat ground flange reaction vessels, jacketed
Flange with groove in accordance with DIN 12214. Flask with thermostatic jacket and type "T" 10mm bore PTFE drain valve.Further accessories and spare parts available on request.

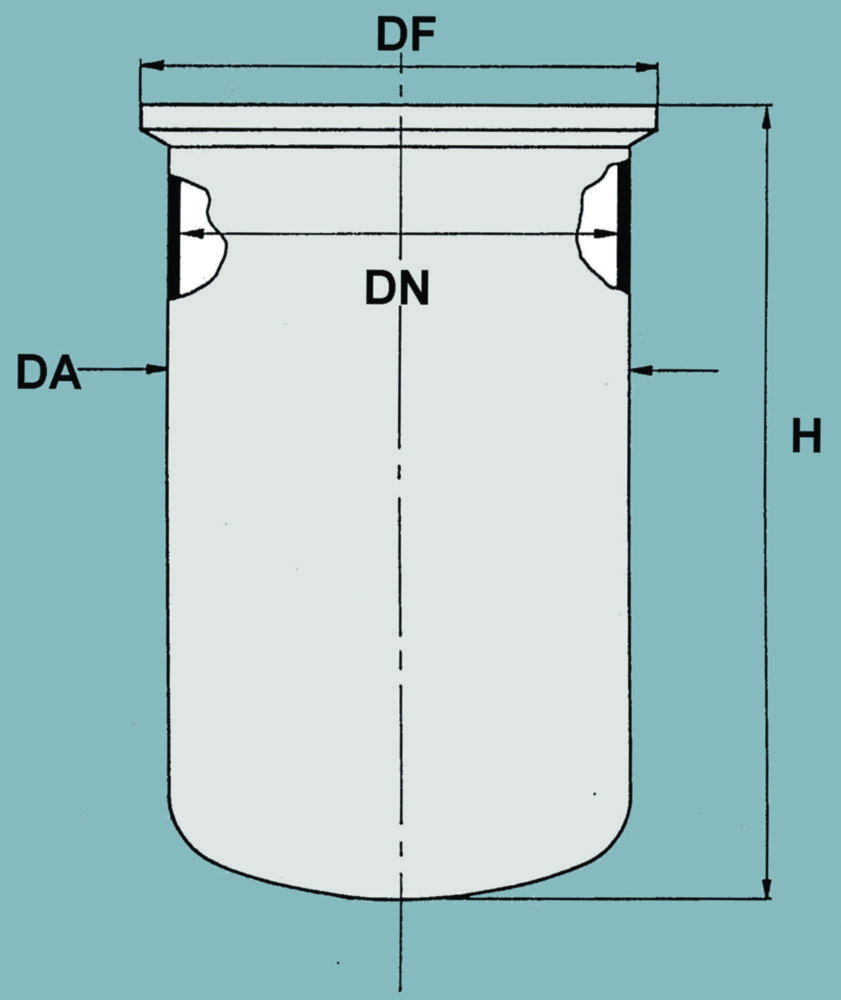

Flat ground flange reaction vessels, unjacketed
Flange in accordance with DIN 12214. Basic flask, without fittings.Form:A = cylindrical formB = short form* with flat bottom** Graduation, blue

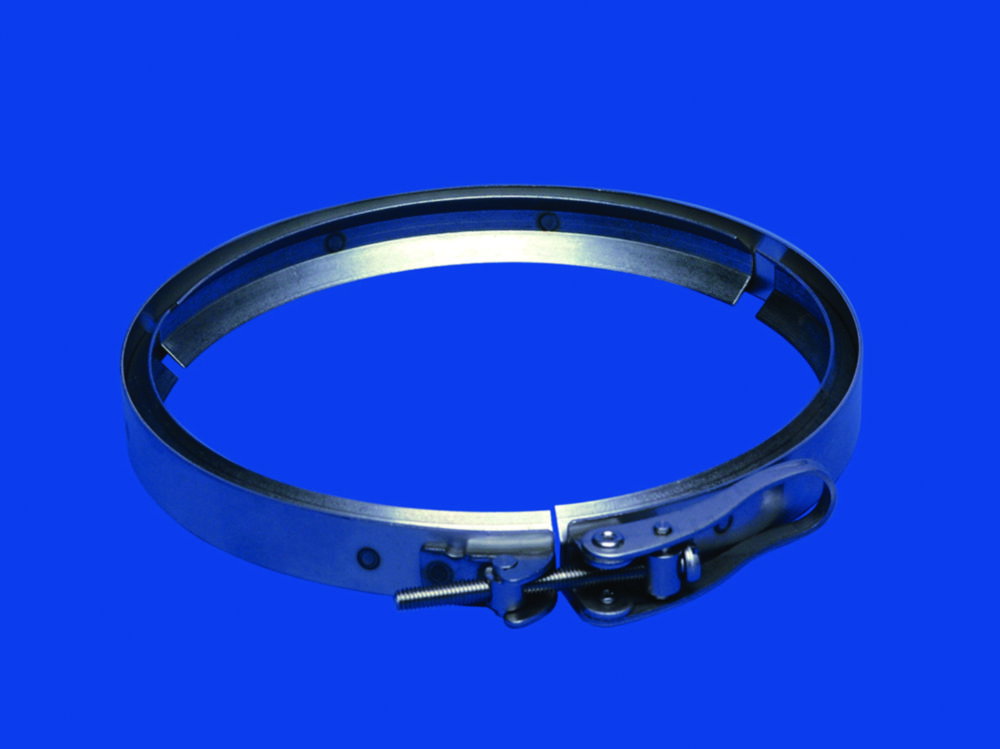

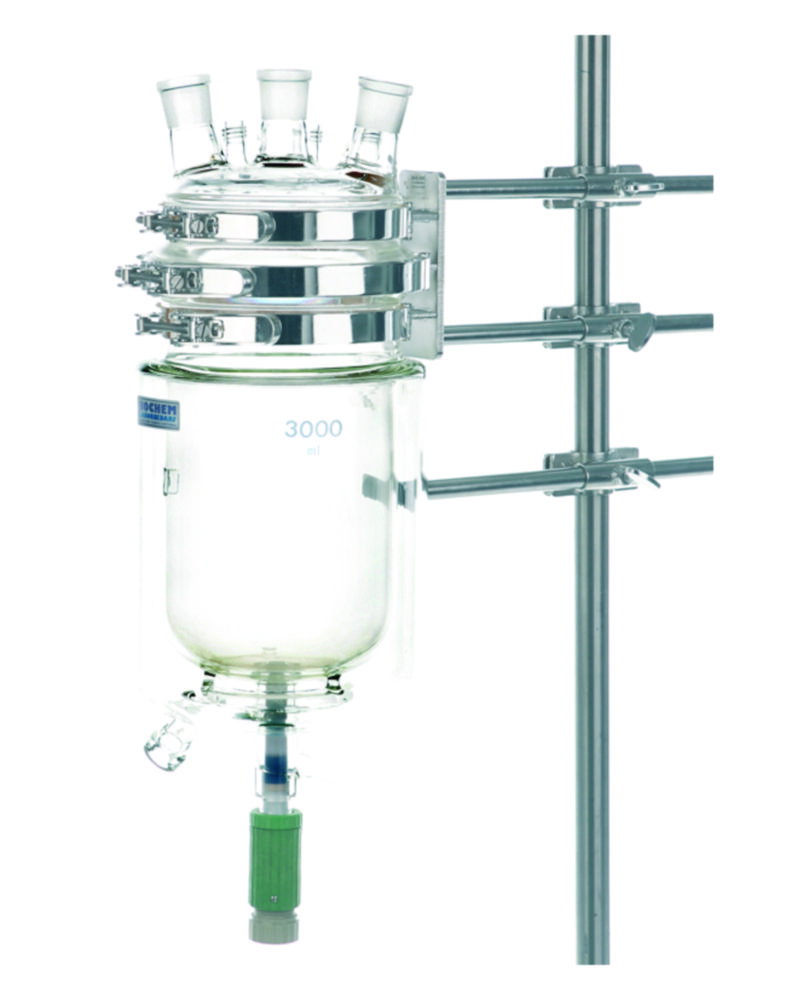

PF - laboratory-flange triple clamp, 18/10 stainless steel
Holder for all PF- laboratory flasks for the alternating removal of vessel and lid. This special quick-release fastener ensures that the two laboratory flat flanges of reaction tube and flat flange lid are connected and, in addition, that the reaction tube and flat flange lid are held individually (optimal flange angle 45°). Without accessories.

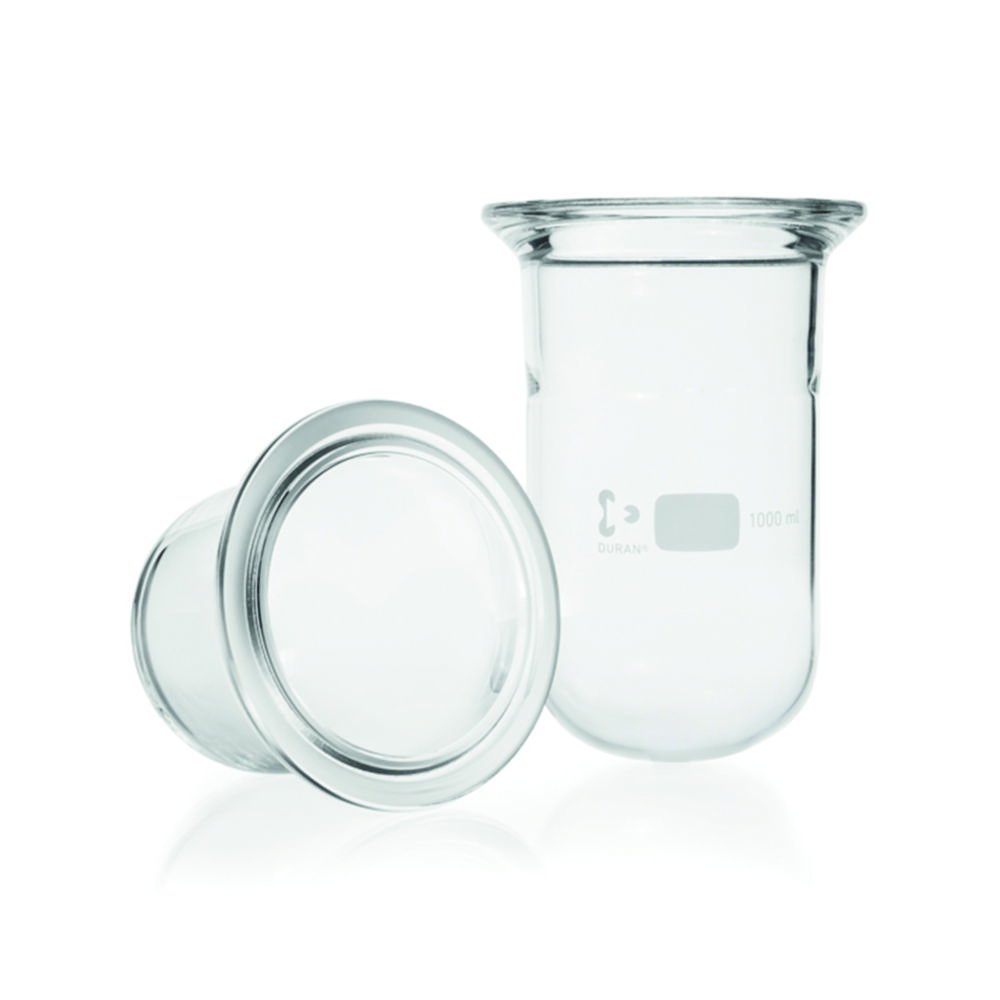

Reaction flasks, flat flange, DURAN®, cylindrical
Flanged neck with groove for vacuum use. Capacities indicated are brim-full volumes. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.

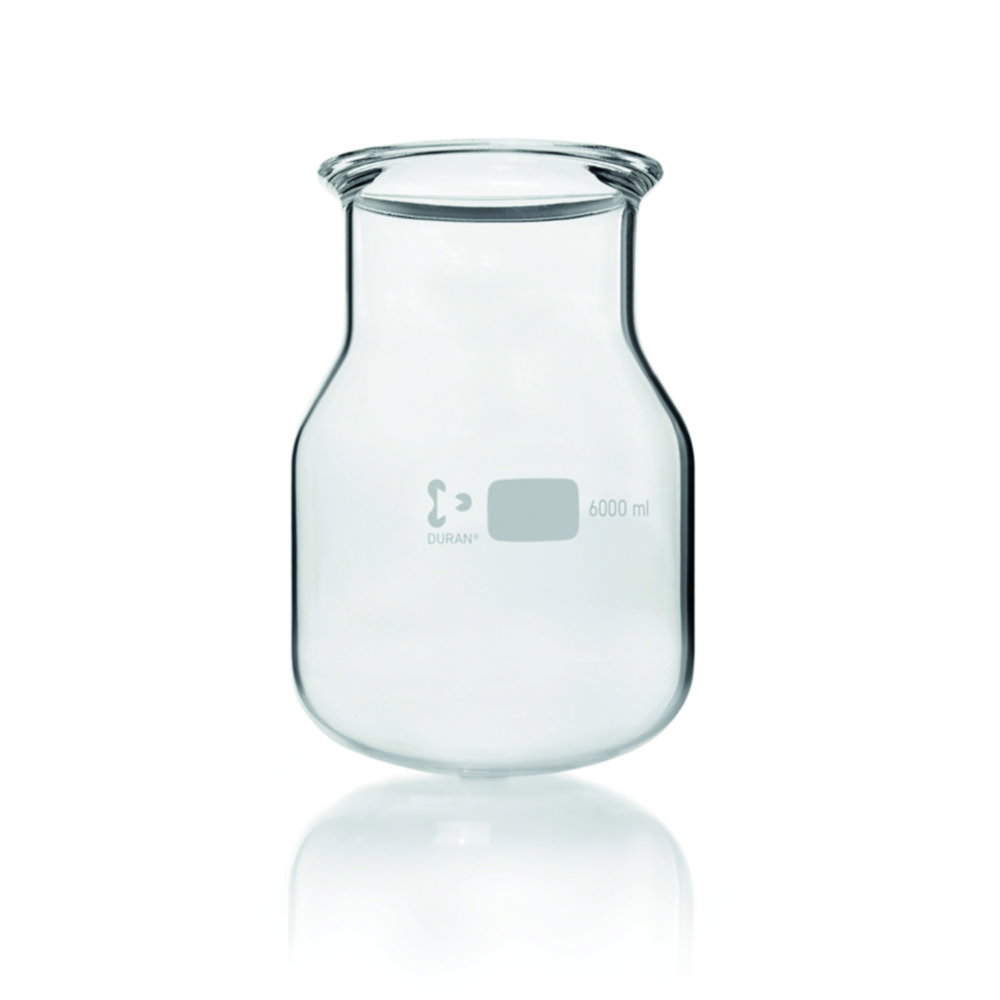

Reaction flasks, flat flange, DURAN®, flask shaped
Flanged neck with groove for vacuum use. Capacities indicated are brim-full volumes. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.

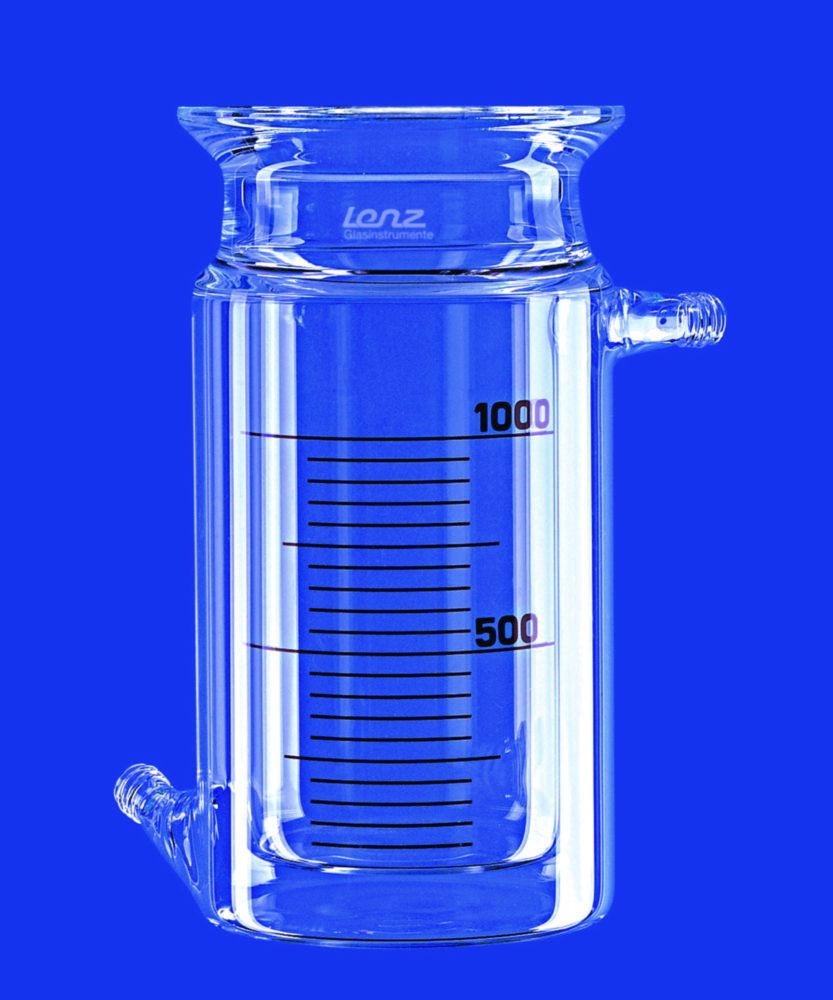

Reaction vessels, cylindrical, with thermostatic jacket
With graduationLaboratory flange LFGrooveFlat bottomTwo connectors with threads GL 14 or GL 18Made of DURAN® tubingOther sizes on request.

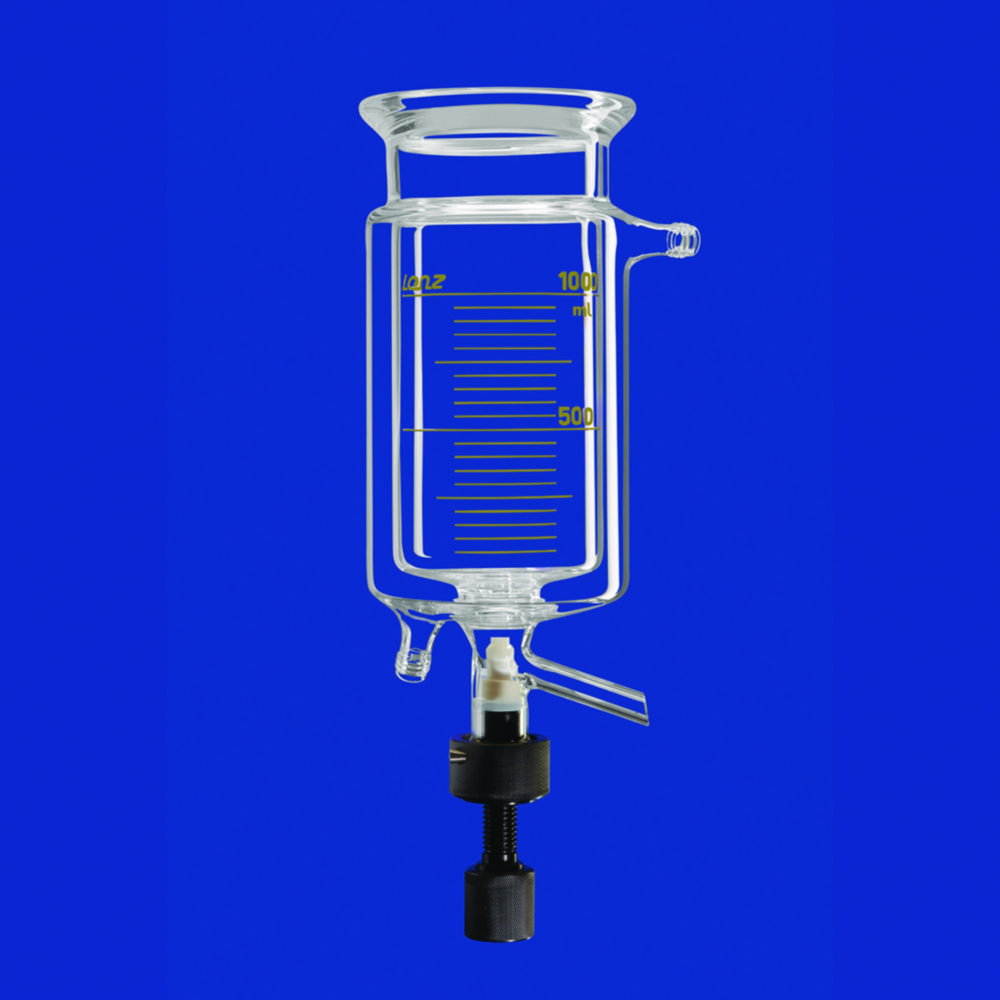

Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve
With graduationLaboratory flange LFWith grooveTwo connectors with threads GL 14 or GL 18Made of DURAN® tubingOther sizes on request.

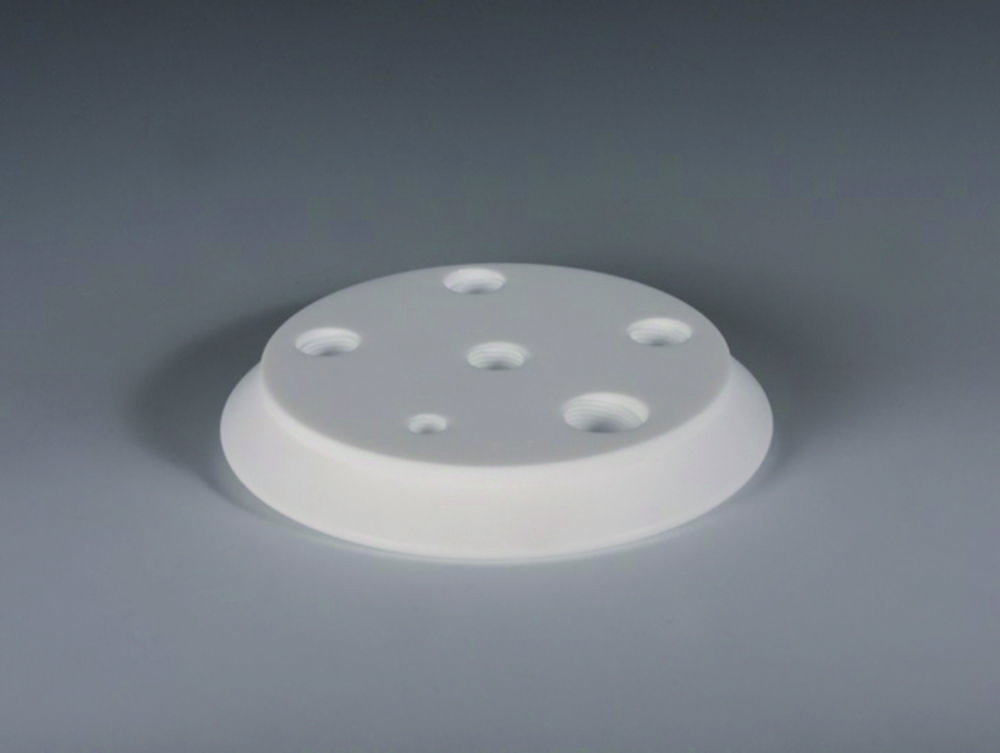

Reactor lids for Glass reactors, PTFE
Suitable for glass reactors with SCHOTT flat flange DN 60, DN 100 and DN 150. All Reactor Lids dispose of a centric screw-in thread NPT for connection of a stirrer bearing. The lateral necks, that even dispose of NPT screw-in threads, are arranged round the centric connector. The angles of lateral necks are made for an insertion of probes and tubes aside the centre in order to avoid collisions with the stirrer shaft. With screw in threads for connection of transition fittings and a center neck NPT 1/2". Temperature resistance from -200°C to +250°C, universal chemical resistance, FDA conformity, further combinations on request.B 150-02: NPT 1/4" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection aside the shaftB 150-04: NPT 1/2" connection aside the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection aside the shaftB 150-12: NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 1/2" connection directly to the shaftB 150-14: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 3/4" connection aside the shaft, NPT 1/4" vertical connectorB 150-16: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 1/4" connection aside the shaft, NPT 1/4" vertical connectorB 150-22: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 1/4" connection aside the shaft, NPT 1/4" vertical connectorB 150-24: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 3/4" connection aside the shaft, NPT 1/4" vertical connectorB 150-26: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1" connection directly to the shaft, NPT 1/4" connection aside the shaft, NPT 1/4" vertical connector

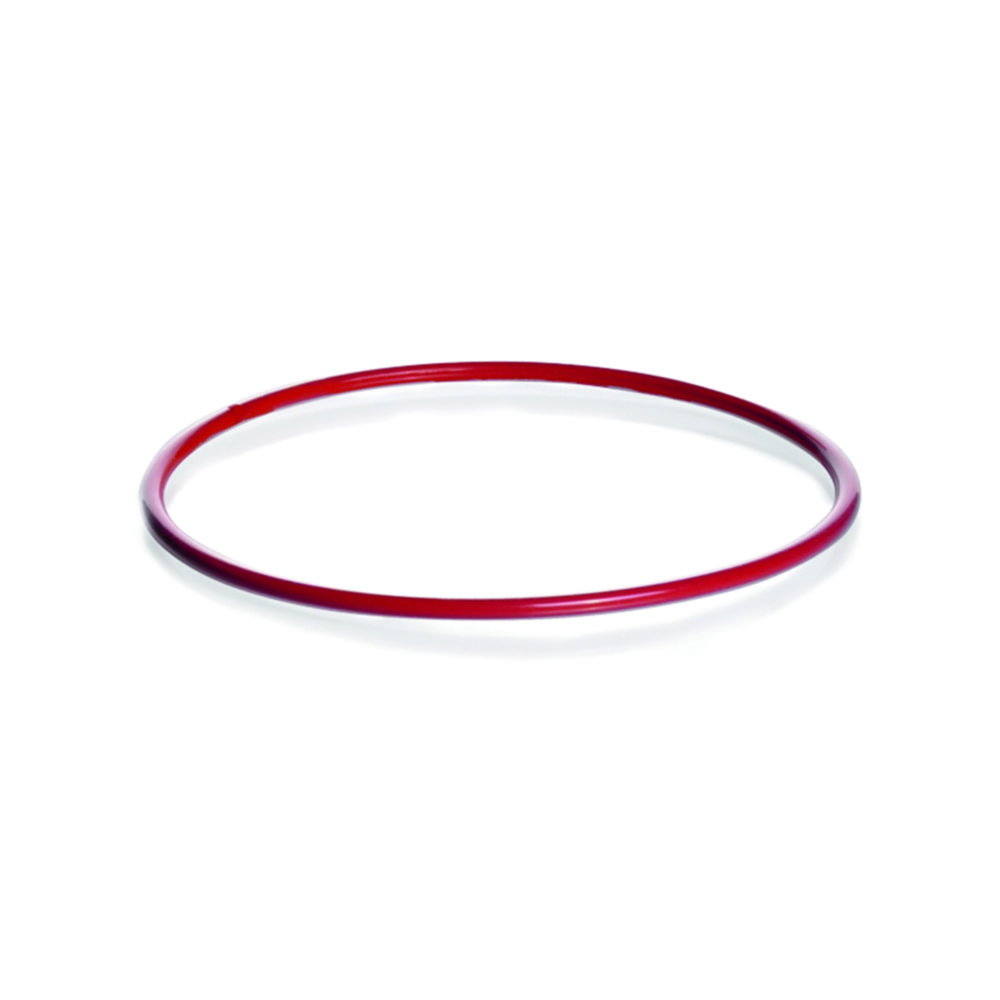

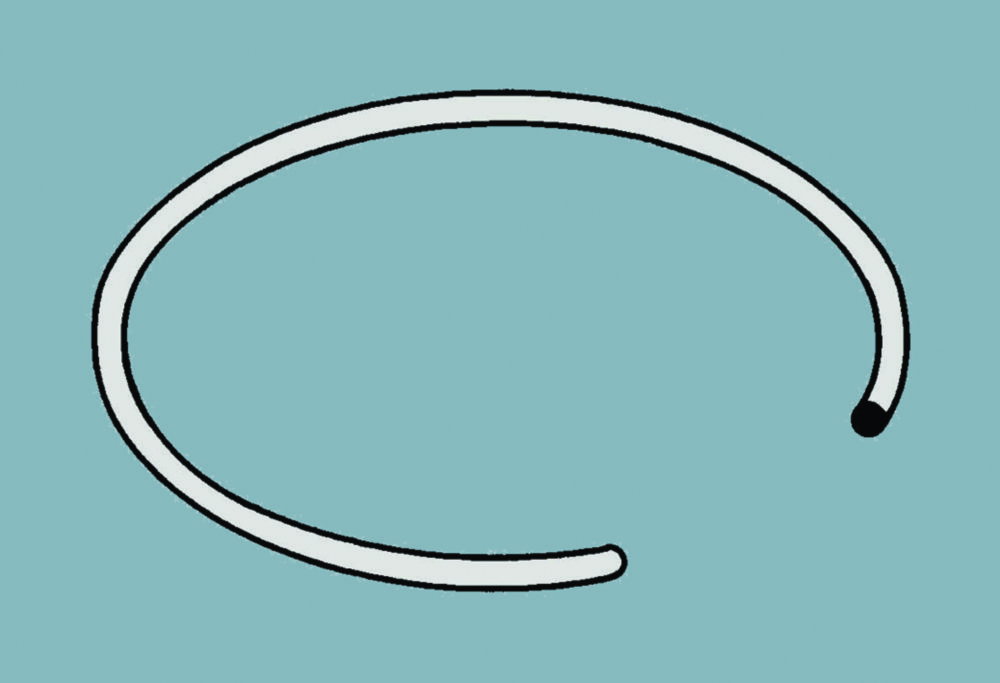

Seal for flat flange vessel
Consist of: PTFE supporting ring and seal O-Ring.

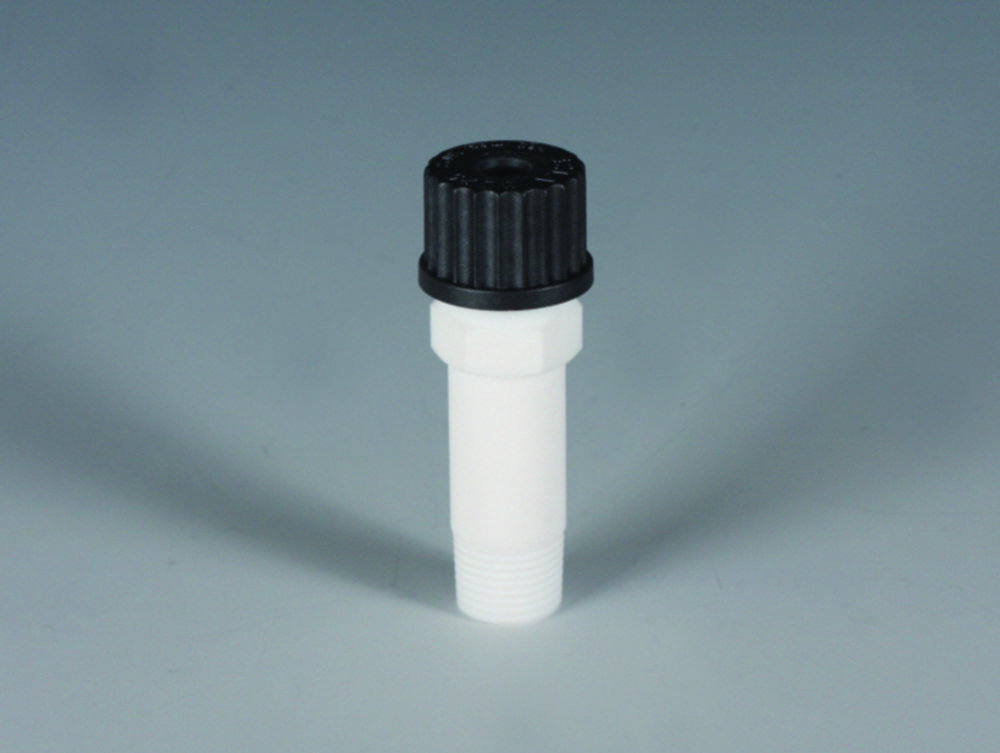

Stirrer bearings, PTFE for Reactor lids
With NPT 1/2" screw thread. Universal chemical resistance. With special gasket made of PTFE and an FPM o-ring for optimal compression of the GL25 screw cap made of PPS. The media is only exposed to PTFE. With hexagonal gripping surface in standard wrench size. Temperature resistant from -15 to 200 °C.
