Oxygen measurement
Accessories box for D.O. Sensors TriOxmatic®
With membrane heads, electrolyte solution, cleaning solution and cathode cleaner.
Accessories for Oxi
Suitable for all laboratory and field electrodes except StirrOx® G.
Accessories for Oxygen meter SD 400 Oxi
Maintenance Kit consists of membrane cap and Micro SD card with software and calibration data.

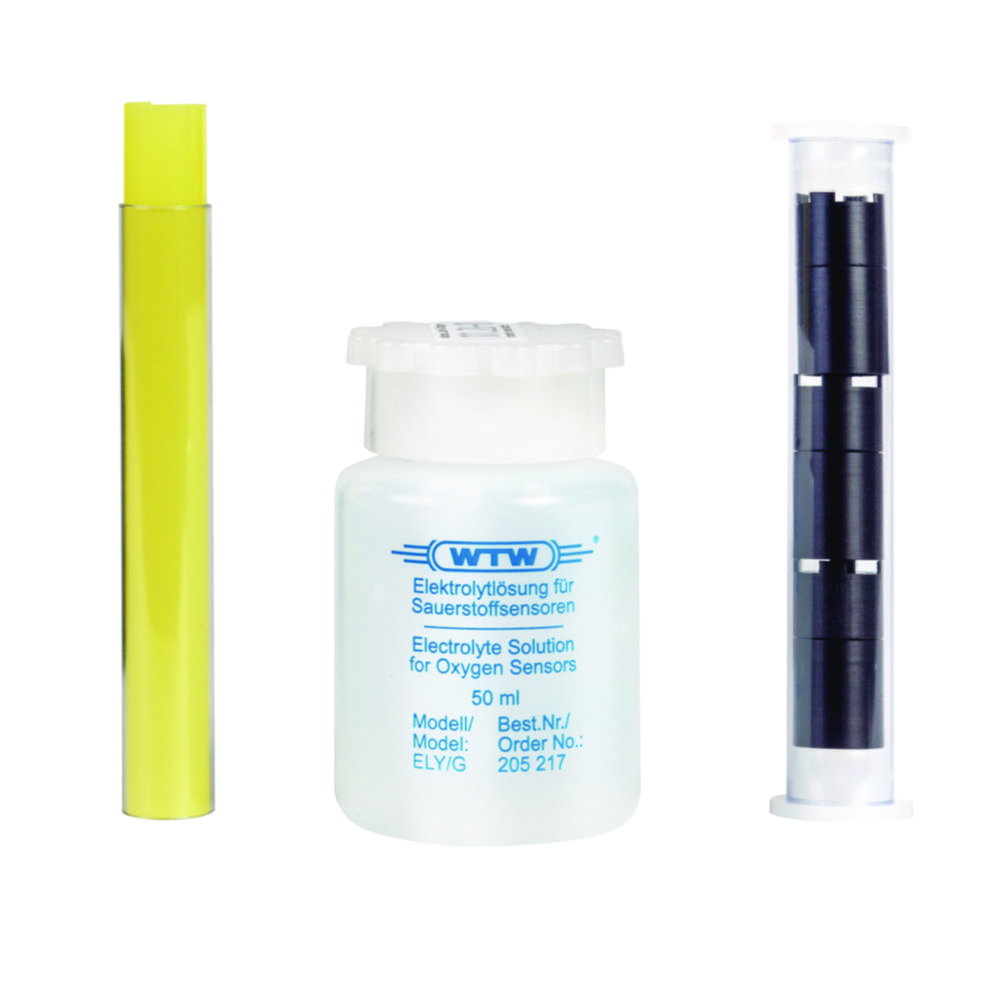

Accessory package for Oxygen sensor StirrOx® G
Scope of supply: 3 exchange membrane heads, electrolyte, abrasive foilPlease order cleaning solution separately.
Analog electro-chemical D.O. sensors TriOxmatic®
D.O. sensors with continuous measuring accuracy. Selction of models with an automatic self diagnosis system, a shorter response time and different cable lengths. All models are supplied with accessories box and can be connected to the monitor Oxi 298 (exception: TriOxmatic® 700).TriOxmatic® 700: For biological cleaning steps (wastewater treatment plants).With automatic self diagnosis SensReg (electrolyte consumption) and SensLeck (membrane monitoring). Medium response time of t90 < 180 s. Only available as retrofit fitting for analog converters of the Ecoline® and QuadroLine® series. Digital version still available (IQ Sensor Net System 181).TriOxmatic® 690: For measuring tasks in wastewater/water. Economic model without self diagnosis.TriOxmatic® 701: With increased resolution for the measurement of residual oxygen in the denitrification. Based on the increased resolution, a shorter response time (t90 < 30 s) and the thinner special membrane, this sensor can be used for quicker response processes with lower O2 concentrations.Scope of supply: Sensor incl. accessories box with membrane heads, electrolyte solution, cleaning solution, cathode cleaner
Calibration and storage containers for oxygen sensors
Sensor-specific vessels to test, calibrate and store dissolved oxygen sensors (galvanized and optical).Easy handlingStandard conform calibrationPerfect transport protection

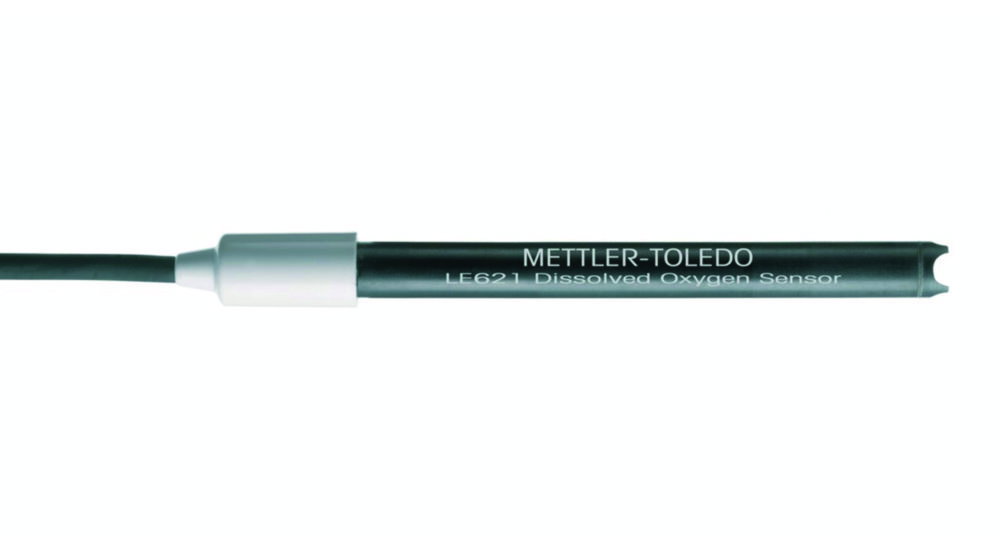

D.O. sensor LE621
For Dissolved oxygen meters FiveGo™ FG4. Galvanic sensor with integrated temperature sensor NTC 30 kOhm for the measurement of dissolved oxygen.

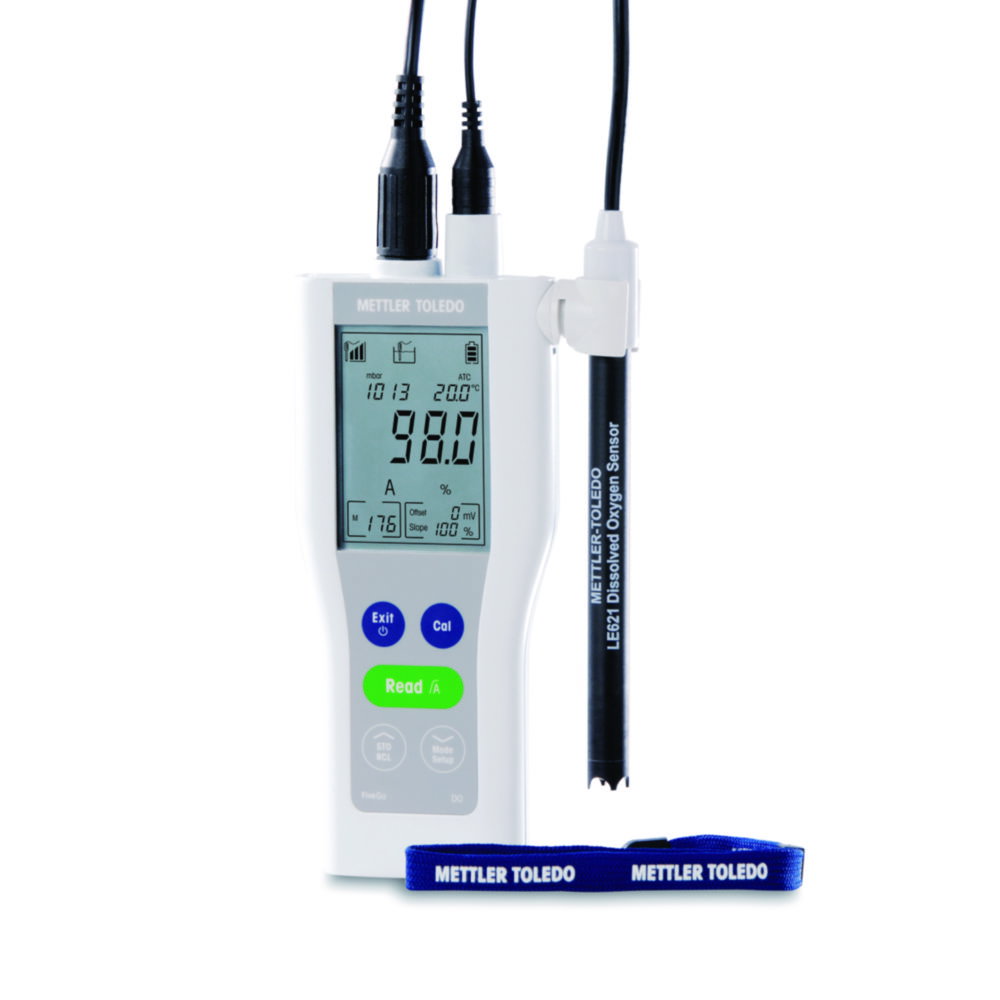

Dissolved oxygen meter FiveGo™ F4-Field kit
Portable dissolved oxygen meter for field work. Thanks to its ergonomic design, handling the FiveGo™ is a comfortable experience. The foldable stand provides optimal viewing on flat surfaces.A large, well-structured display, intuitive button arrangement and simple menu ensure measurements can be performed in just a few clicksTemperature compensation: ATC and MTCCalibration: 2 points, 100 % and 0 %Memory: 200 measurements, current calibrationScope of supply: Meter with LE621 sensor, carrying case
Dissolved oxygen meter FiveGo™ F4-Meter
Portable dissolved oxygen meter for field work. Thanks to its ergonomic design, handling the FiveGo™ is a comfortable experience. The foldable stand provides optimal viewing on flat surfaces.A large, well-structured display, intuitive button arrangement and simple menu ensure measurements can be performed in just a few clicksTemperature compensation: ATC and MTCCalibration: 2 points, 100 % and 0 %Memory: 200 measurements, current calibrationScope of supply: Meter only
Dissolved oxygen meter FiveGo™ F4-Standard kit
Portable dissolved oxygen meter for field work. Thanks to its ergonomic design, handling the FiveGo™ is a comfortable experience. The foldable stand provides optimal viewing on flat surfaces.A large, well-structured display, intuitive button arrangement and simple menu ensure measurements can be performed in just a few clicksTemperature compensation: ATC and MTCCalibration: 2 points, 100 % and 0 %Memory: 200 measurements, current calibrationScope of supply: Meter with LE621 sensor

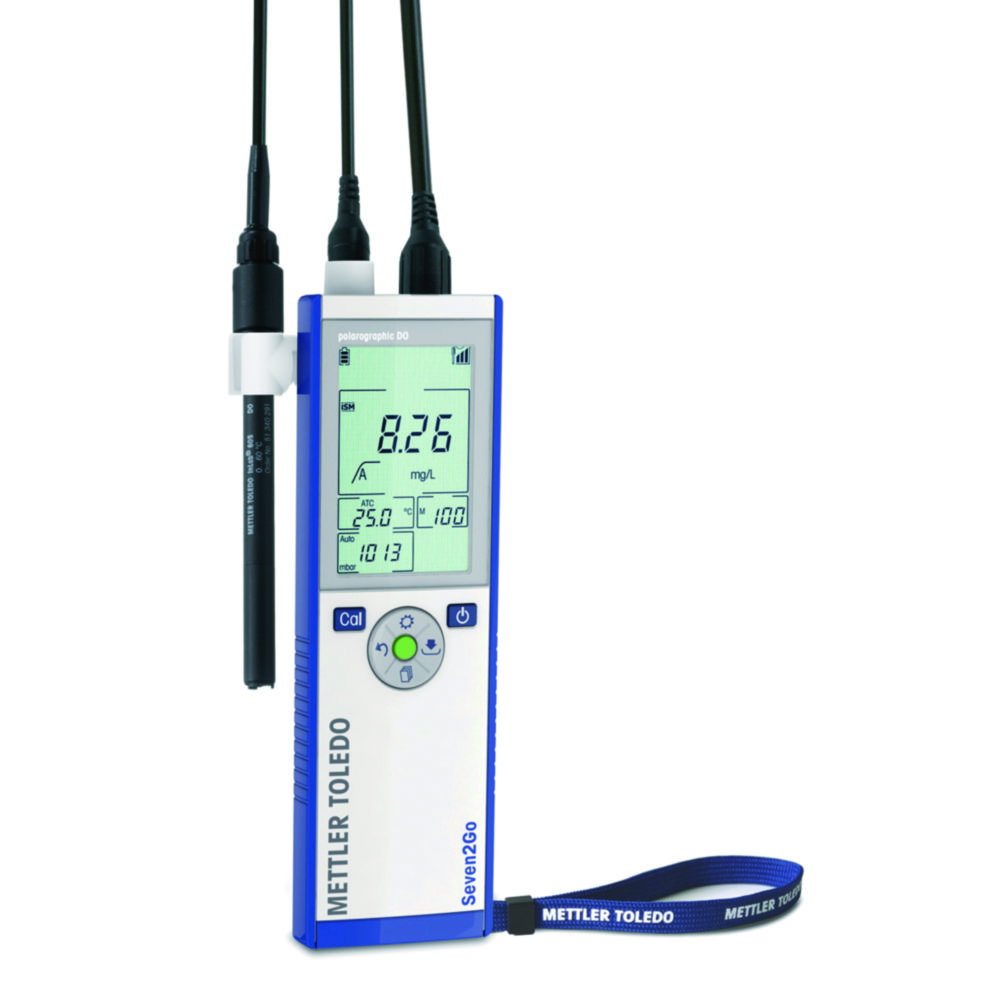

Dissolved oxygen meter Seven2Go™ S4-Field kit
Portable routine model for dissolved oxygen measurement.New, intuitive menu structure with fast and easy T-Pad navigationRobust design with IP 67 protection for use in harsh and demanding environmentsIntelligent Sensor Management (ISM®) functionality reduces the risk of errorsUp to 2 calibration points and a choice of 2 predefined oxygen standardsAutomatic, manual and time dependant endpoint recordingData memory storage for 200 data pointsPower requirements: 4 x 1.5 V AA or 1.3 V NiMH rechargeable batteriesScope of supply: Includes instrument, electrode clip, operating instructions, quick guide, test certificate, declaration of conformity, batteries, InLab 605-ISM, zero oxygen tablets, bottles for calibration, uGo™ carrying case
Dissolved oxygen meter Seven2Go™ S4-Meter
Portable routine model for dissolved oxygen measurement.New, intuitive menu structure with fast and easy T-Pad navigationRobust design with IP 67 protection for use in harsh and demanding environmentsIntelligent Sensor Management (ISM®) functionality reduces the risk of errorsUp to 2 calibration points and a choice of 2 predefined oxygen standardsAutomatic, manual and time dependant endpoint recordingData memory storage for 200 data pointsPower requirements: 4 x 1.5 V AA or 1.3 V NiMH rechargeable batteriesScope of supply: Includes instrument, electrode clip, operating instructions, quick guide, test certificate, declaration of conformity, batteries
Dissolved oxygen meter Seven2Go™ S4-Standard kit
Portable routine model for dissolved oxygen measurement.New, intuitive menu structure with fast and easy T-Pad navigationRobust design with IP 67 protection for use in harsh and demanding environmentsIntelligent Sensor Management (ISM®) functionality reduces the risk of errorsUp to 2 calibration points and a choice of 2 predefined oxygen standardsAutomatic, manual and time dependant endpoint recordingData memory storage for 200 data pointsPower requirements: 4 x 1.5 V AA or 1.3 V NiMH rechargeable batteriesScope of supply: Includes instrument, electrode clip, operating instructions, quick guide, test certificate, declaration of conformity, batteries, InLab 605-ISM, zero oxygen tablets

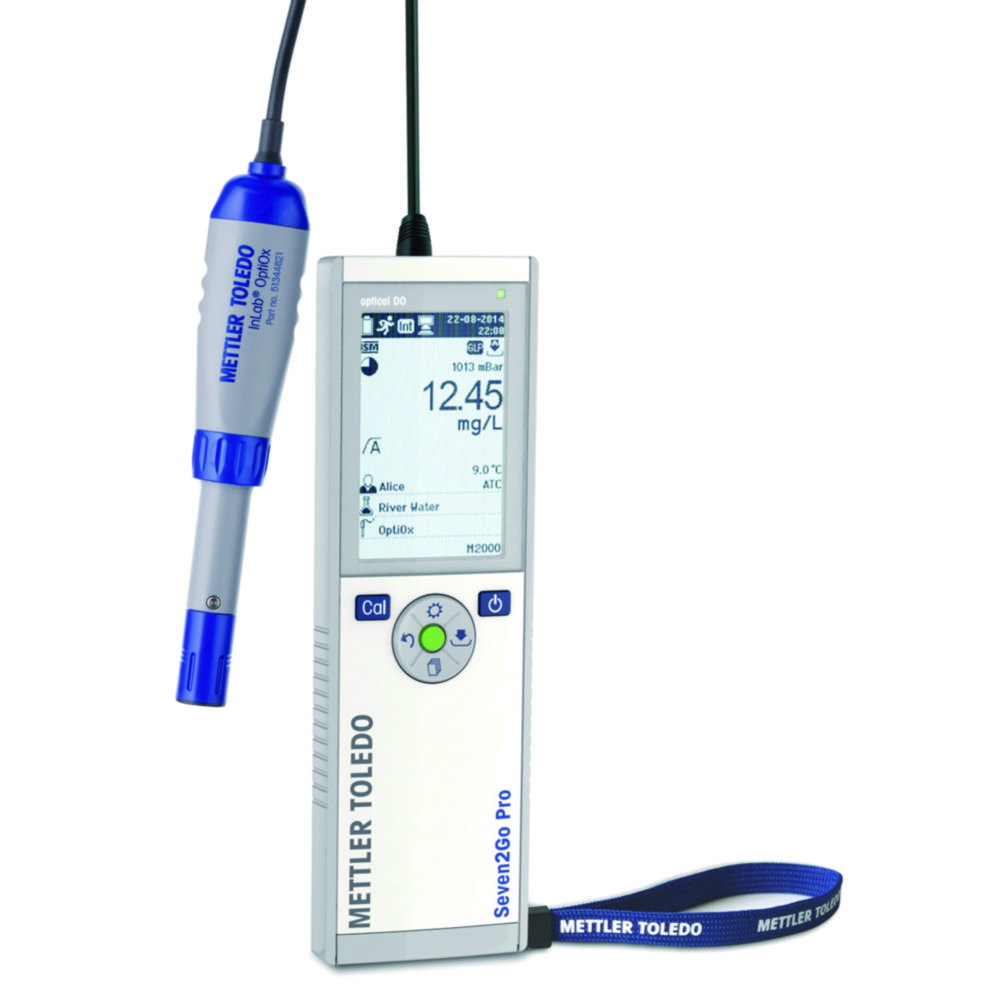

Dissolved oxygen meter Seven2Go™ S9-BOD kit
Portable professional model for dissolved oxygen measurement.New, intuitive menu structure with fast and easy T-Pad navigationRobust design with IP 67 protection for use in harsh and demanding environmentsIntelligent Sensor Management (ISM®) functionality reduces the risk of errorsNew sunlight-proof screen guarantees screen readability even in direct sunlightNew StatusLight gives a fast, visual confirmation showing if the meter is ready to measure or notOperating support for 12 languages with information shown in complete words and sentenceUp to 2 calibration points and a choice of 2 predefined oxygen standardsAutomatic, manual and time dependant endpoint recordingData memory storage for 2000 GLP data points with weatherproof Micro-USB connection for data exportPower requirements: 4 x 1.5 V AA or 1.3 V NiMH rechargeable batteriesScope of supply: Includes instrument, LabX® direct pH, USB cable, electrode clip, base accessory, operating instructions, quick guide, test certificate, declaration of conformity, batteries, InLab® OptiOx™, zero oxygen tablets, bottles for calibration, uGo™ carrying case, BOD adapter, BOD application note
Dissolved oxygen meter Seven2Go™ S9-Field kit
Portable professional model for dissolved oxygen measurement.New, intuitive menu structure with fast and easy T-Pad navigationRobust design with IP 67 protection for use in harsh and demanding environmentsIntelligent Sensor Management (ISM®) functionality reduces the risk of errorsNew sunlight-proof screen guarantees screen readability even in direct sunlightNew StatusLight gives a fast, visual confirmation showing if the meter is ready to measure or notOperating support for 12 languages with information shown in complete words and sentenceUp to 2 calibration points and a choice of 2 predefined oxygen standardsAutomatic, manual and time dependant endpoint recordingData memory storage for 2000 GLP data points with weatherproof Micro-USB connection for data exportPower requirements: 4 x 1.5 V AA or 1.3 V NiMH rechargeable batteriesScope of supply: Includes instrument, LabX® direct pH, USB cable, electrode clip, base accessory, operating instructions, quick guide, test certificate, declaration of conformity, batteries, InLab® OptiOx™ with protective guard, zero oxygen tablets, bottles for calibration, uGo™ carrying case
Dissolved oxygen meter Seven2Go™ S9-Meter
Portable professional model for dissolved oxygen measurement.New, intuitive menu structure with fast and easy T-Pad navigationRobust design with IP 67 protection for use in harsh and demanding environmentsIntelligent Sensor Management (ISM®) functionality reduces the risk of errorsNew sunlight-proof screen guarantees screen readability even in direct sunlightNew StatusLight gives a fast, visual confirmation showing if the meter is ready to measure or notOperating support for 12 languages with information shown in complete words and sentenceUp to 2 calibration points and a choice of 2 predefined oxygen standardsAutomatic, manual and time dependant endpoint recordingData memory storage for 2000 GLP data points with weatherproof Micro-USB connection for data exportPower requirements: 4 x 1.5 V AA or 1.3 V NiMH rechargeable batteriesScope of supply: Includes instrument, LabX® direct pH, USB cable, electrode clip, base accessory, operating instructions, quick guide, test certificate, declaration of conformity, batteries
Dissolved oxygen meter Seven2Go™ S9-Standard kit
Portable professional model for dissolved oxygen measurement.New, intuitive menu structure with fast and easy T-Pad navigationRobust design with IP 67 protection for use in harsh and demanding environmentsIntelligent Sensor Management (ISM®) functionality reduces the risk of errorsNew sunlight-proof screen guarantees screen readability even in direct sunlightNew StatusLight gives a fast, visual confirmation showing if the meter is ready to measure or notOperating support for 12 languages with information shown in complete words and sentenceUp to 2 calibration points and a choice of 2 predefined oxygen standardsAutomatic, manual and time dependant endpoint recordingData memory storage for 2000 GLP data points with weatherproof Micro-USB connection for data exportPower requirements: 4 x 1.5 V AA or 1.3 V NiMH rechargeable batteriesScope of supply: Includes instrument, LabX® direct pH, USB cable, electrode clip, base accessory, operating instructions, quick guide, test certificate, declaration of conformity, batteries, InLab® OptiOx™, zero oxygen tablets
