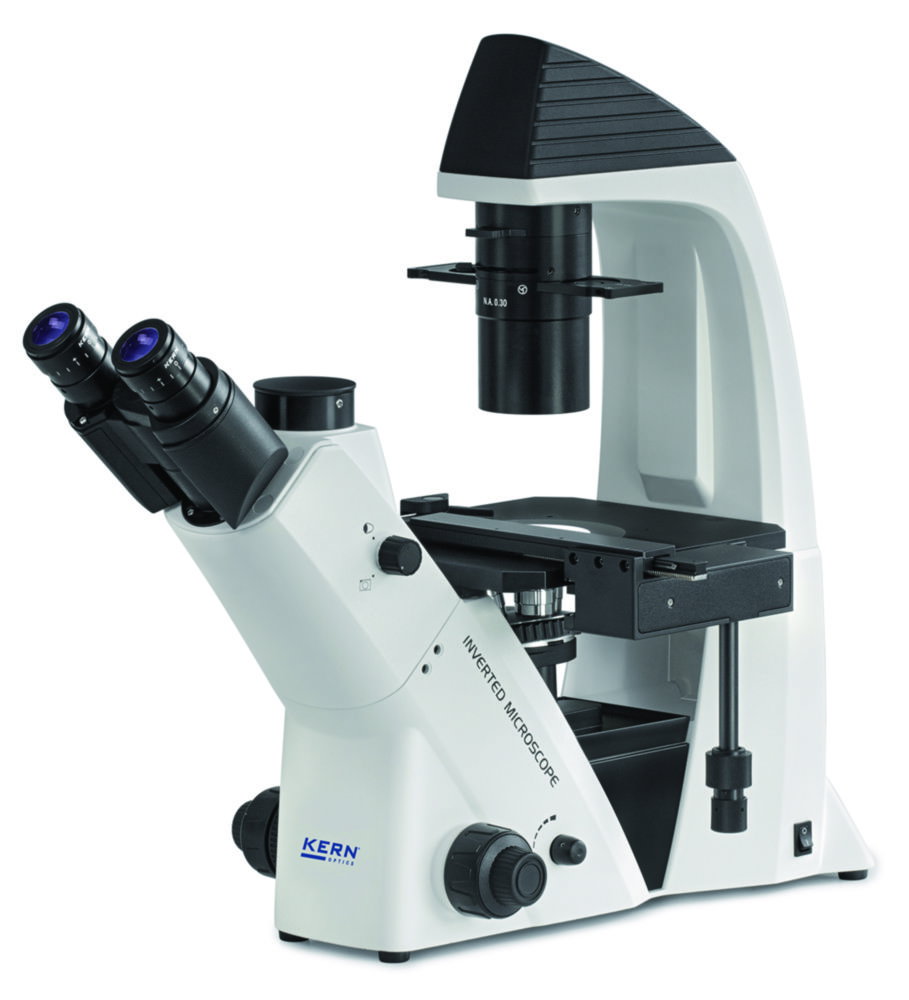

Inverted microscope Lab Line OCM
Kern & Sohn GmbH
Prezzo normale:
0,00 €
Contenuto:
1
Codice prodotto:
6289585
Info sui prodotti "Inverted microscope Lab Line OCM"
This design, with its large working distance of 72 mm, is particularly suitable for viewing samples in culture vessels (flasks, petri dishes, microtiter plates) and for translucent, thin, low-contrast, challenging samples (immunofluorescence, FISH, DAPI staining etc.).
- Diopter adjustment: both-sided
- Objective quality: Infinity Plan
- Mechanical stage, including specimen holder
- Abbe N.A. 0.3 condenser with aperture diaphragm
- OCM 161: 30 W halogen illumination
- OCM 162: 5W LED illumination
- OCM 165: 30 W halogen illumination and 100 W Epi fluorescence illumination unit
- Dust cover and manual instruction included
| Condenser: | Abbe 0,3 |
|---|---|
| Depth: | 335 mm |
| Depth stage: | 241 mm |
| Dimensions (WxDxH): | 660 x 335 x 600 mm |
| Height: | 600 mm |
| Inclination angle tube: | 45° |
| Interpupillary distance: | 48 ... 76 mm |
| Light type: | Halogen |
| Magnification eyepieces: | HWF 10x/Ø 22 mm |
| Magnification objectives: | 10x, 20x, 40x, PH 20x |
| Manufacturer Article Number: | OCM 161 |
| Max. interpupillary distance: | 76 mm |
| Max. voltage: | 240 V |
| Min. interpupillary distance: | 48 mm |
| Min. voltage: | 100 V |
| Plug type: | EU |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Revolving nosepiece: | 5-fold |
| Stage (WxD): | 210 x 241 mm |
| Tube: | Trinocular |
| Type: | OCM 161 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Weight: | 15 kg |
| Width: | 660 mm |
| Width stage: | 210 mm |
