Tablet camera ODC 241
0,00 €
Info sui prodotti "Tablet camera ODC 241"
- 9.7" LCD-Touchscreen
- Incl. functions for measuring distance, surfaces and angles as well as a manual counting function
- Automatic white balance and contrast adjustment
Scope of supply: Tablet camera with pre-installed software, mains adapter
| Interfaces: | WLAN, USB 2.0, HDMI, MicroSD |
|---|---|
| Manufacturer Article Number: | ODC 241 |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Plug type: | EU |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Resolution camera: | 5 MP |
| Resolution live image: | 2048x1536 |
| Sensor: | Sony CMOS |
| Type: | ODC 241 |
| Type of auxiliary energy: | Mains connection |
Login
Set

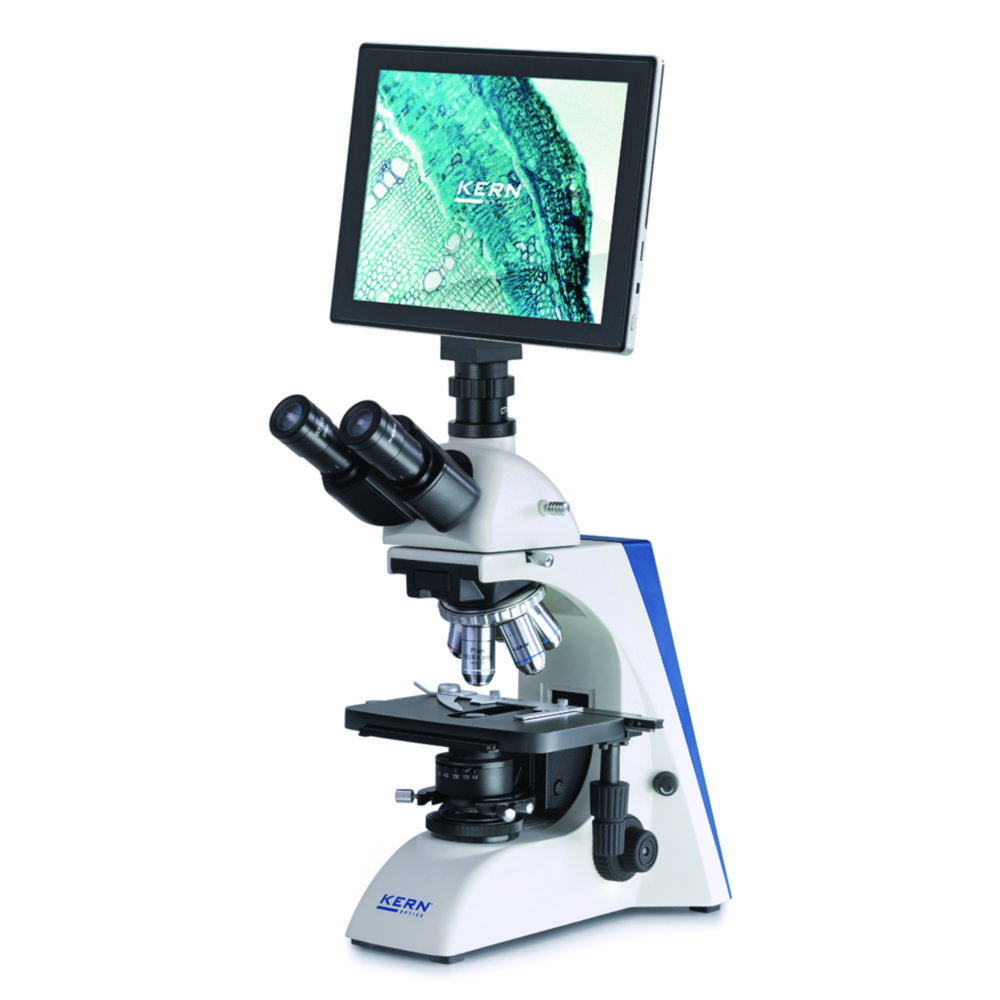

The sets are the complete digital solution for live investigations. The adapted 5 MP tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen.Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)
