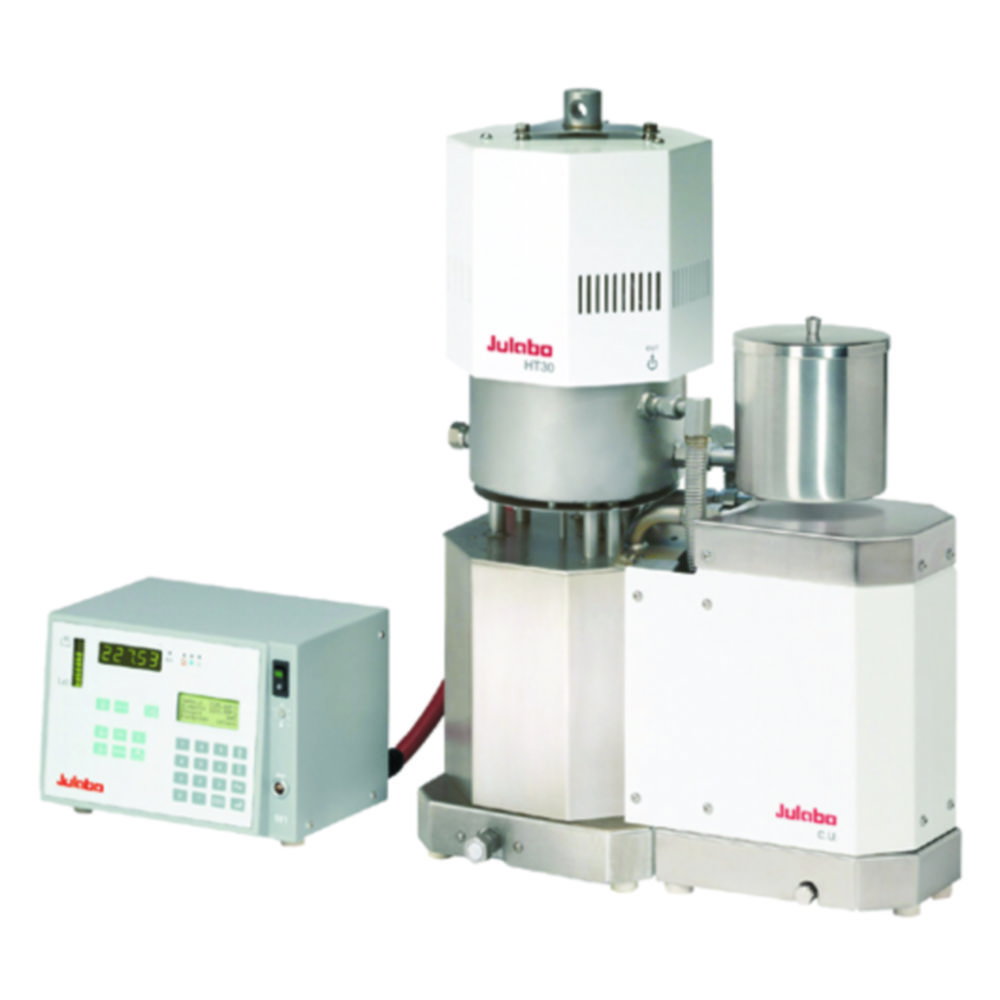

High-temperature circulators Forte HT-C.U., with cooling unit and Profibus DP
Julabo GmbH
Prezzo normale:
0,00 €
Contenuto:
1
Codice prodotto:
4721610
Info sui prodotti "High-temperature circulators Forte HT-C.U., with cooling unit and Profibus DP"
High-temperature circulators have a compact, closed construction to prevent the formation of oil fumes even at high temperatures. A powerful heating capacity ensures short heat-up times. Automatic heat-up and cracking protection ensure a long service life of the bath fluid. The entire system can be filled bubble-free thanks to a filling system with automatic venting.
The high-temperature circulators are equipped with a powerful cooling unit to enable temperature control tasks from 40 °C upwards. The cooling unit ensures rapid cooling phases across the entire temperature range. Exothermic reactions are quickly compensated.
The Profibus DP interface is used for remote control of the high-temperature circulators.
- Self-optimising ICC cascade temperature control
- Pump capacity from 14 to 18 l/min
- Illuminated LCD display
- Electronic level indicator
- Integrated programmer with memory for 6 profiles with 60 programme steps each
- ATC function for simple temperature correction
- Small filling volume
- RS232 and RS485 interface, standby-input
- Integratable e.g. in miniplant systems
- Classification III (FL) according to DIN 12876-1
The Profibus DP interface is used for remote control of the high-temperature circulators.
| Cooling capacity at 20 °C: | 15 kW |
|---|---|
| Ext. depth: | 230 mm |
| Ext. height: | 580 mm |
| Ext. width: | 430 mm |
| External dimensions (WxDxH): | 430 x 230 x 580 mm |
| Heating capacity: | 3 kW |
| IP code: | IP 21 |
| Manufacturer Article Number: | 9801035 |
| Max. delivery pressure: | 1.2 bar |
| Max. flow rate: | 18 l/min |
| Max. temperature: | 400 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 2 l |
| Min. temperature: | 40 °C |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Programmable: | Yes |
| Temperature: | 40 ... 400 °C |
| Type: | Forte HT30-M1-C.U./PB-2 |
| Type of auxiliary energy: | Mains connection |
| Volume bath: | 2 l |
| Weight: | 35 kg |
