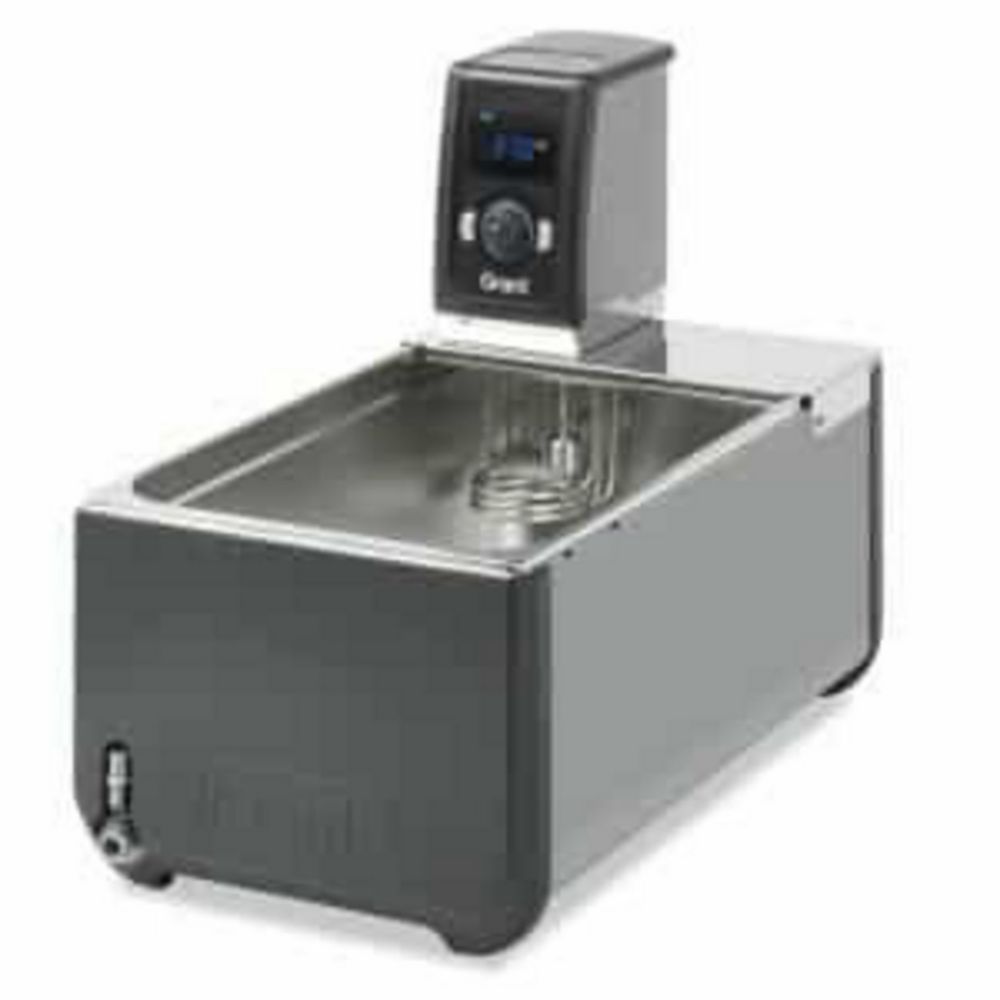

Heated circulating bath with stainless steel tank Optima™ T100-ST series
0,00 €
Info sui prodotti "Heated circulating bath with stainless steel tank Optima™ T100-ST series"
- 3 programmable temperature presets
- Low liquid protection and fixed over temperature cut-out
- Visual alarm in case of malfunctions
- Clear, bright, 4 digit LED display
- Thermostat can be used in combination with any other Grant stainless steel tank or with a T-CLAMP with any vertical sided tank
Scope of supply: Thermostat, bridge plate, stainless steel tank
For cooling below ambient temperature, please order cooler separately.
| Bath depth: | 150 mm |
|---|---|
| Depth opening: | 501 mm |
| Ext. depth: | 535 mm |
| Ext. height: | 415 mm |
| Ext. width: | 335 mm |
| External dimensions (WxDxH): | 335 x 535 x 415 mm |
| Heating capacity: | 2000 W |
| Manufacturer Article Number: | T100-ST18 |
| Material bath: | Stainless steel |
| Max. temperature: | 100 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 18 l |
| Min. temperature: | +5 °C |
| Opening (WxD): | 301 x 501 mm |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature: | +5 ... 100 °C |
| Temperature stability: | ±0.05 °C |
| Type: | T100-ST18 |
| Type of auxiliary energy: | Mains connection |
| Type of display: | LED |
| Volume bath: | 18 l |
| Warranty: | 3 years |
| Weight: | 7.3 kg |
| Width opening: | 301 mm |
| With lid: | No |
Login
Accessories
Drain syphon SY1: For the rapid draining of baths.Heat exchange coil CW5: For use with precision and general purpose stirred baths. Temperature range 2 °C above coolant temperature. Coil diameter/l mm 77/55, pipe bore inlet/outlet 7mm.PP spheres PS20: Between operating temperatures 60 °C and 100 °C and below room temperature a lid or layers of polypropylene spheres can be used. Above 100 °C a lid must be used.
For attaching the thermostats to any vertical sided tank with a maximum wall thickness of 35 mm for rectangular tanks, 30 mm for circular tanks (300 mm diameter), and a capacity of up to 50 l.
